- ET340H (ENTICER 340) 1984
TRACK SUSPENSION 1

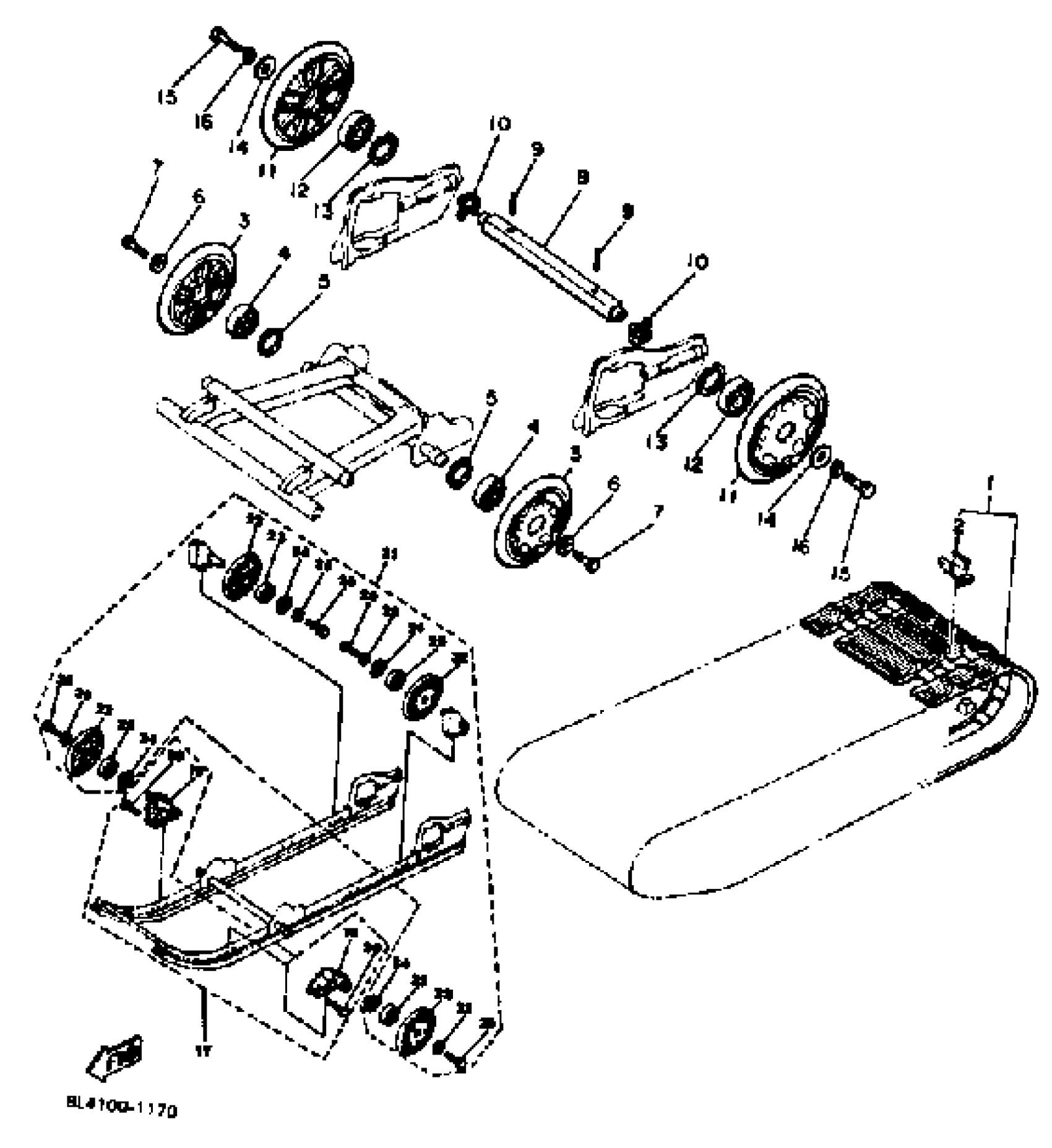

Yamaha ET340H (ENTICER 340) 1984 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASY
8J6-47110-02-00
Unavailable
2
METAL, SLIDE
8A5-47115-00-00
Unavailable
3
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
4
BEARING(8AB)
93306-00444-00
$41.99
5
CIRCLIP(5U8)
99009-42500-00
$8.49
6
WASHER (8G1)
90201-08681-00
$7.49
7
BOLT (8K2)
90109-08559-00
$8.49
8
AXLE, REAR
8E3-47521-00-00
Unavailable
9
PIN, SPRING (663)
91690-40040-00
Unavailable
10
WASHER
8E3-47384-00-00
Unavailable
11
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
12
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
13
CIRCLIP(48Y)
99009-47500-00
$9.49
14
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
15
BOLT, HEXAGON
97013-08020-00
$1.16
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
BRACKET KIT (FRT) (ONLY)
8N5-47000-10-00
Unavailable
18
BRACKET 4
8L4-47418-00-00
Unavailable
19
. BRACKET 7
8L4-47419-00-00
Unavailable
20
BOLT(21W)
97017-06035-00
Unavailable
21
SUS.WHEEL KIT
8N5-47000-00-00
Unavailable
22
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
23
BEARING(8AB)
93306-00444-00
$41.99
24
CIRCLIP(5U8)
99009-42500-00
$8.49
25
WASHER (8G1)
90201-08681-00
$7.49
26
BOLT (8K2)
90109-08559-00
$8.49
