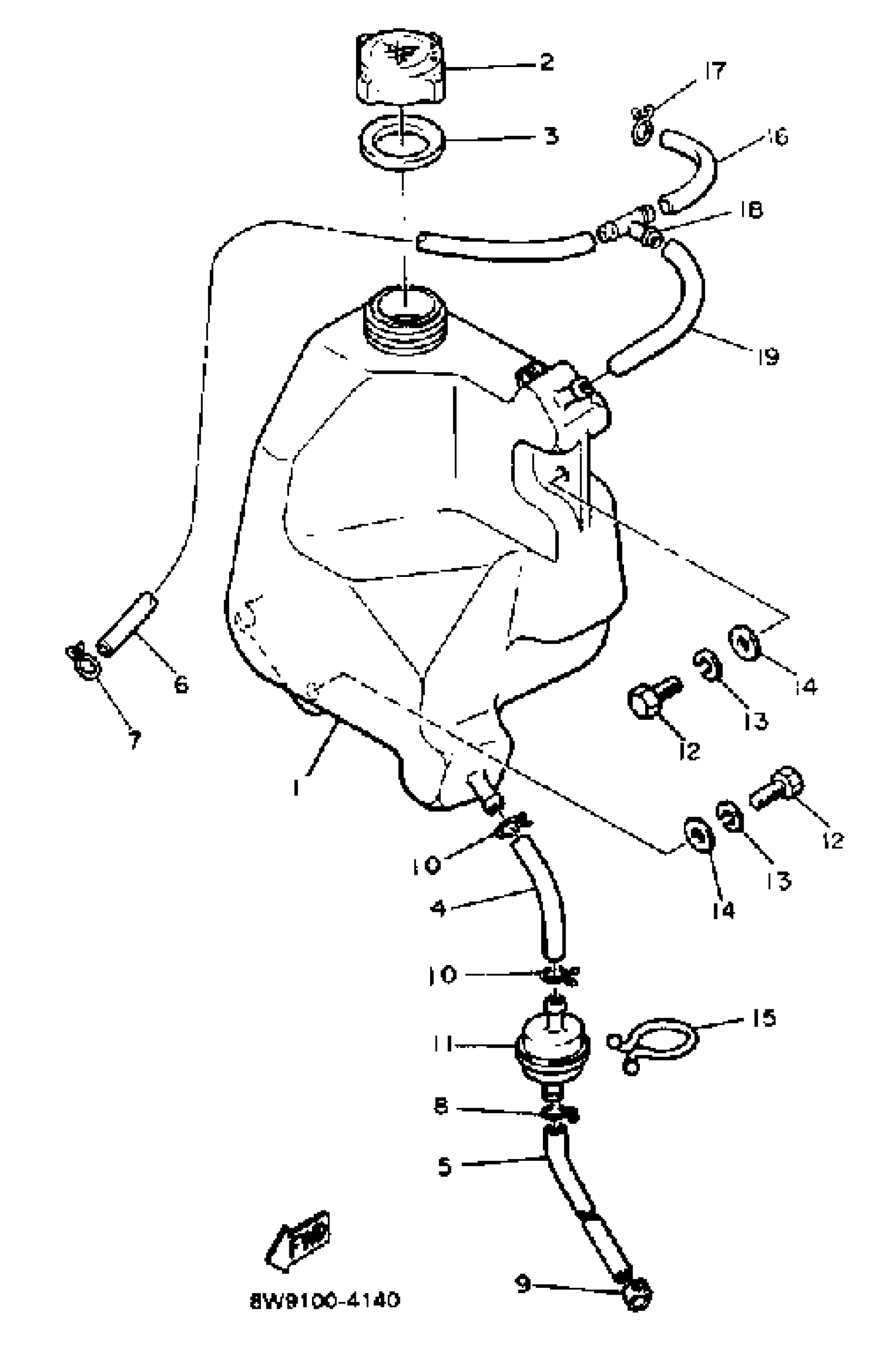

Yamaha ET340H (ENTICER 340) 1984 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$23.45

3

GASKET, TANK (867)

90430-31003-00

$7.24

4

HOSE

91A30-07036-00

Unavailable

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20

6

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

7

CLAMP

90464-25267-00

$5.53

8

CLIP (8L2)

90467-08017-00

$6.99

9

CLIP (8A1)

90467-09026-00

$2.55

10

CLIP (8J7)

90467-11009-00

$7.05

11

HOUSING STRAINER ASSY

8G8-13410-00-00

$21.27

12

BOLT, HEXAGON

97013-08020-00

$1.43

13

WASHER(JN5)

92907-08100-00

$5.59

14

WASHER, PLAIN

92990-08200-00

$2.36

15

CLAMP (8M1)

90464-30040-00

$7.33

16

HOSE

90446-09053-00

Unavailable

17

CLIP (8A1)

90467-09026-00

$2.55

18

PIPE, JOINT

801-24376-00-00

Unavailable

19

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.20
