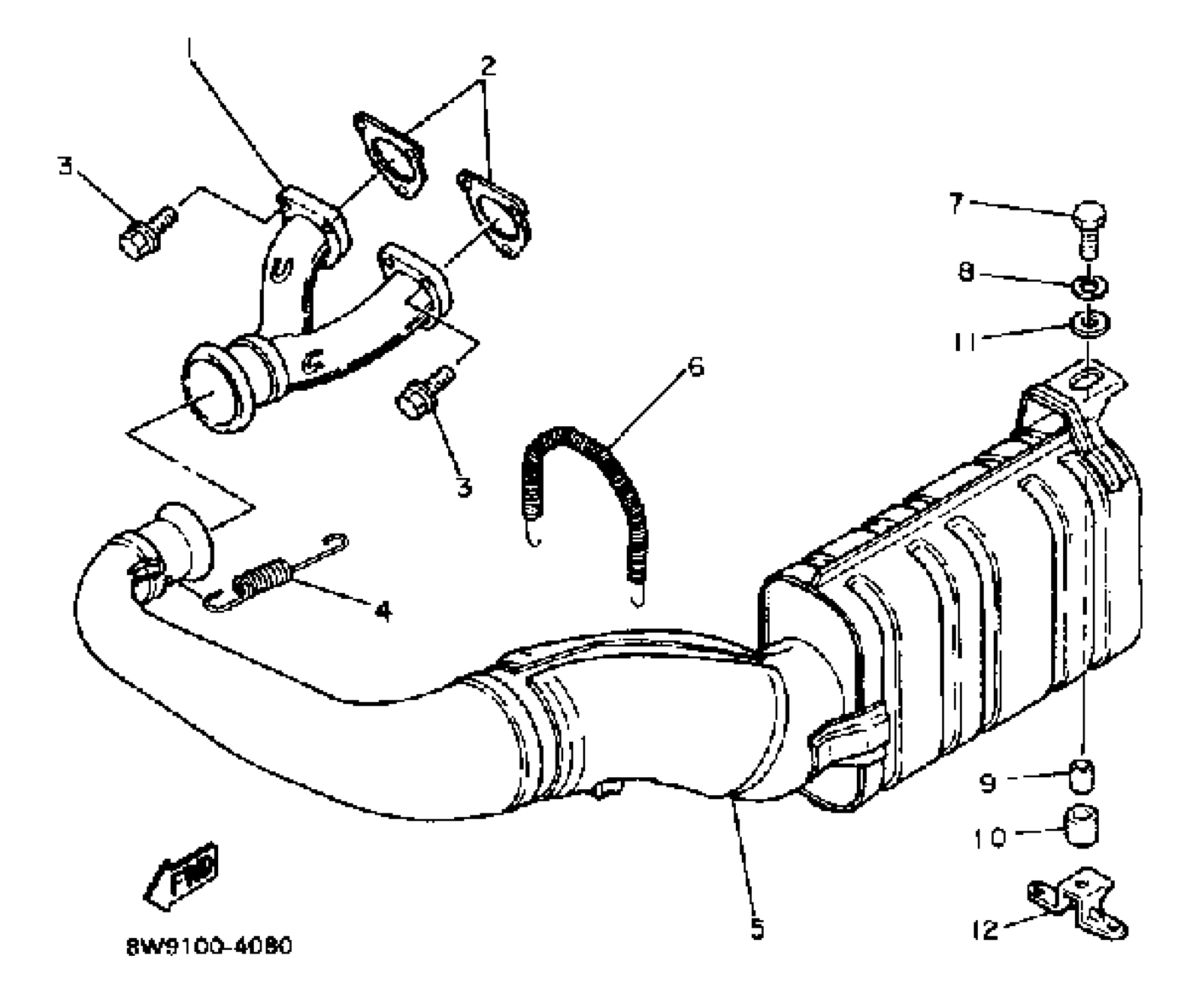

Yamaha ET340H (ENTICER 340) 1984 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

8G8-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

8G8-14613-01-00

$4.32

3

BOLT, FLANGE

95817-06020-00

$2.52

4

SPRING, TENSION (8R7)

90506-20272-00

$8.78

5

MUFFLER ASSEMBLY L

8M8-14710-00-00

Unavailable

6

SPRING, TENSION

90506-16130-00

Unavailable

7

BOLT, HEXAGON

97013-08030-00

$2.98

8

WASHER(JN5)

92907-08100-00

$5.59

9

PIN, DOWEL(J38)

91812-16001-00

$4.82

10

DAMPER, MUFFLER

8G8-14747-00-00

Unavailable

11

WASHER, PLATE(8AT)

90201-081R9-00

$5.90

12

STAY, MUFFLER 1

8W6-14771-01-00

Unavailable
