Description

Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

LEVER 1

8H8-83912-00-00

$20.99

3

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

4

SCREW, PAN

98507-05040-00

$8.49

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

LEVER HOLDER ASSEMBLY 2

8W6-82720-00-00

Unavailable

11

LEVER, THROTTLE

8V0-42138-00-00

$64.99

12

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

13

NUT

8H8-82557-00-00

$2.97

14

CAP, SWITCH

8H8-82552-09-00

$48.99

15

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

16

BEAM SWITCH ASSY

8H8-83950-01-00

Unavailable

16

NUT, NYLON

95707-05300-00

$4.24

18

STOP SWITCH ASSY

88R-82530-00-00

Unavailable

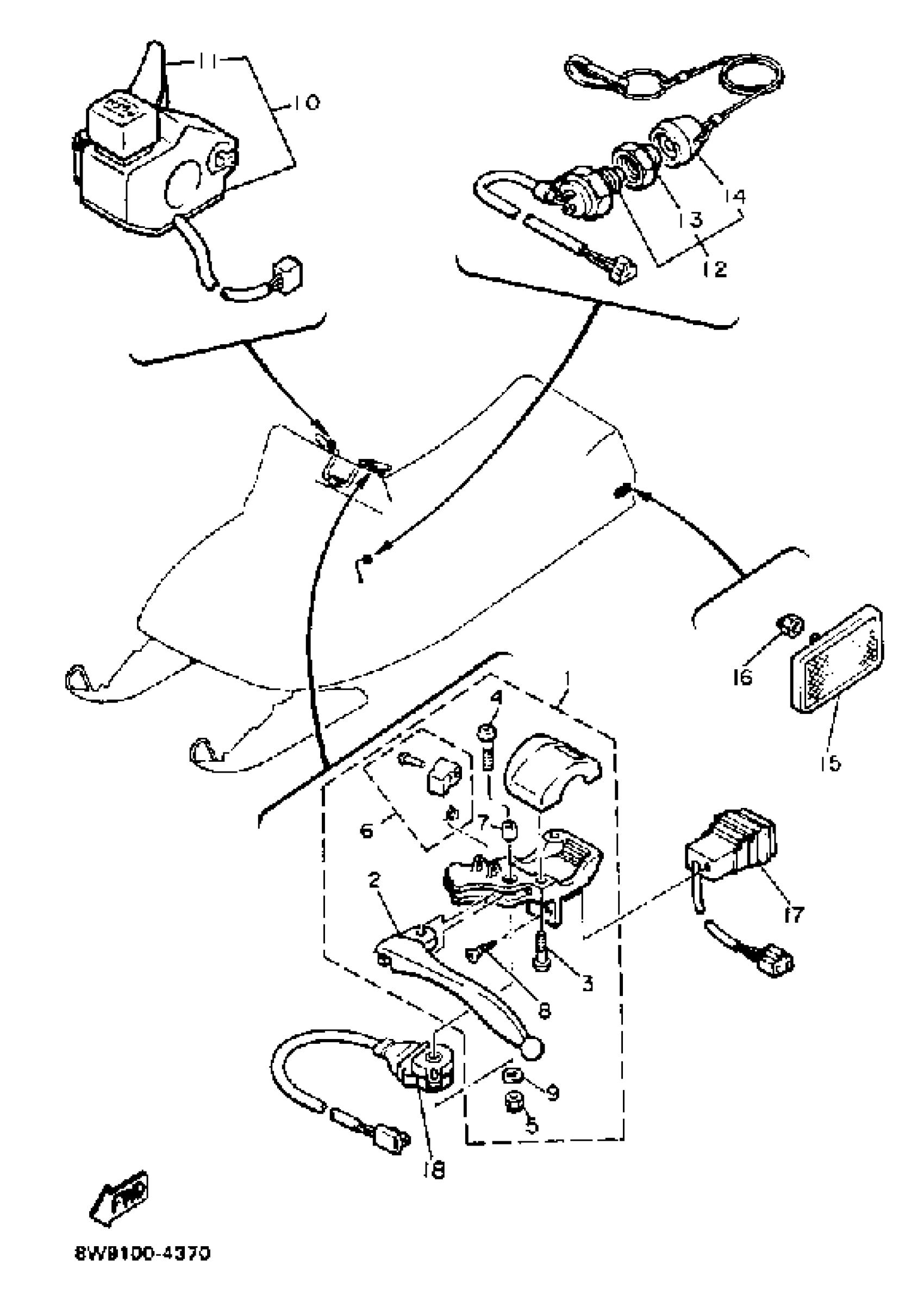

Yamaha ET340H (ENTICER 340) 1984 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD(41N)

SCREW, PAN

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

LEVER HOLDER ASSEMBLY 2

LEVER, THROTTLE

STOP SWITCH ASSY

NUT

CAP, SWITCH

REAR REFLECTOR ASSY

BEAM SWITCH ASSY

NUT, NYLON

STOP SWITCH ASSY
