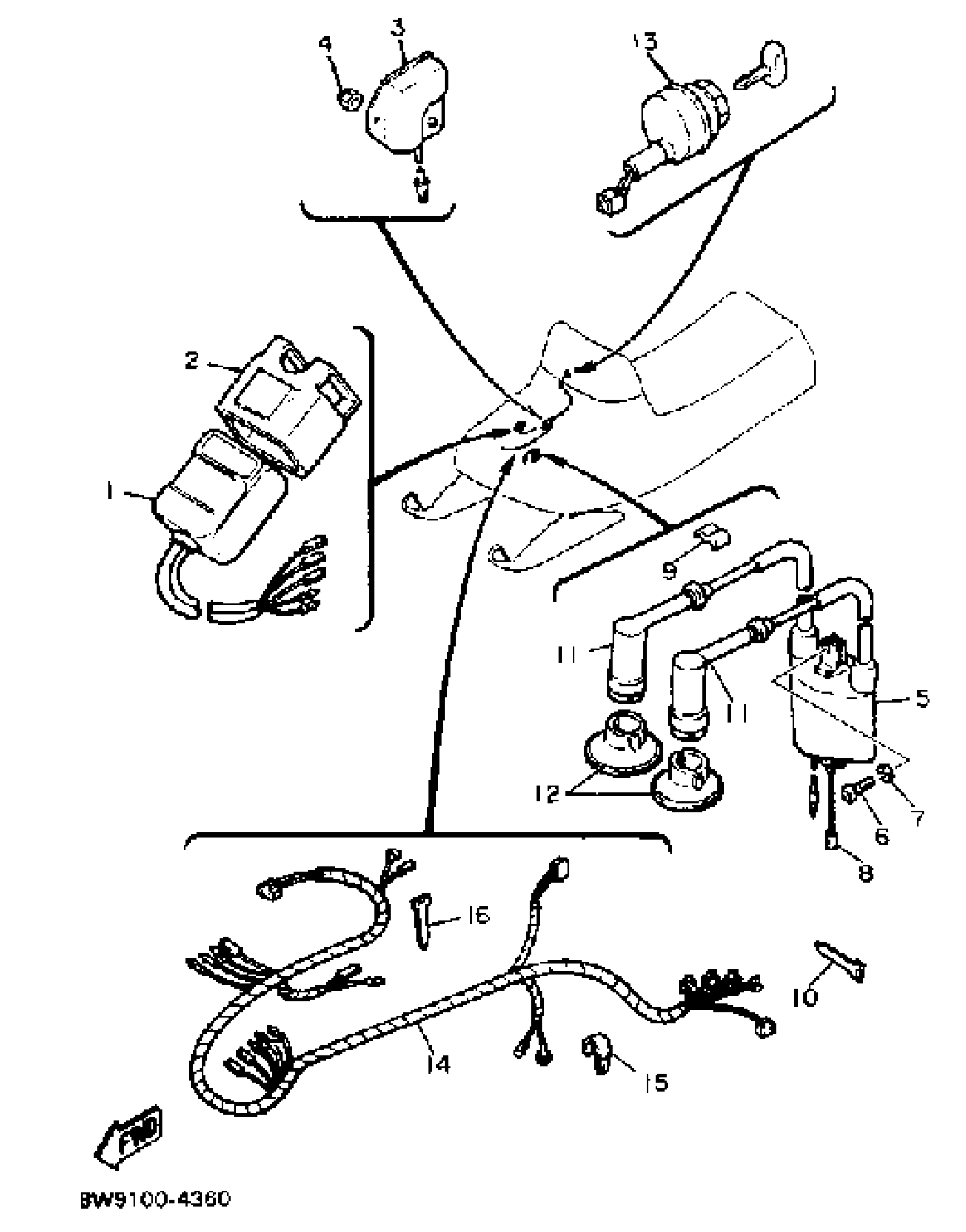

Yamaha ET340H (ENTICER 340) 1984 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

8N4-85540-20-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

4

NUT, NYLON

95707-06300-00

$2.98

5

IGNITION COIL ASSEMBLY

8W3-82310-T0-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$4.89

7

WASHER, SPRING

92995-06100-00

$2.95

8

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

9

GROMMET 1

8W6-82355-00-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$4.56

11

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

12

SEAL, PLUG CAP

8G8-82372-00-00

Unavailable

13

MAIN SWITCH ASSY

8R4-82510-20-00

$107.36

14

WIRE HARNESS ASSEMBLY

8X1-82590-20-00

Unavailable

15

CLAMP

90465-08028-00

$4.31
