1982 Yamaha ET340F Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1982 Yamaha ET340F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

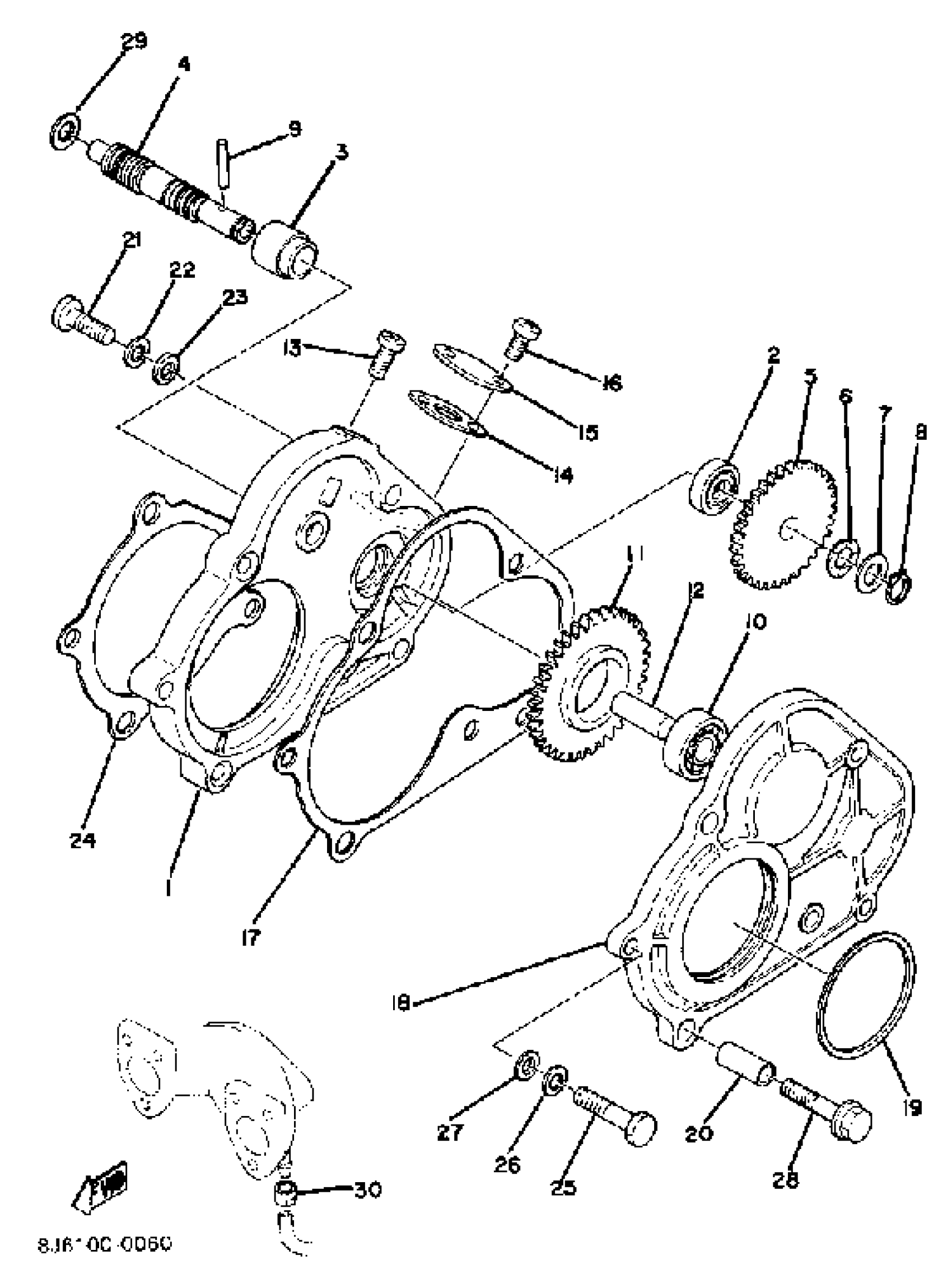

1982 Yamaha ET340F Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8G8-15416-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

SHAFT, WORM

821-13175-00-00

1
Out of stock

5

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

6

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

—

$29.35

In stock

11

GEAR, IDLE

8G8-13179-00-00

1
Out of stock

12

SHAFT, IDLE GEAR

8G8-13342-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

GASKET

821-17818-02-00

1

$5.66

In stock

15

CAP, HOUSING

824-17819-00-00

1
Out of stock

16

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

17

GASKET 2

8G8-15466-03-00

1
Out of stock

18

COVER, OIL PUMP R

8G8-15426-00-00

1
Out of stock

19

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

20

PIN, DOWEL

91810-18025-00

1
Out of stock

21

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

GASKET,O/PPCUR1

8G8-15456-03-00

1
Out of stock

25

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

28

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

30

CLIP (214-13164-00)

90468-02033-00

—
Out of stock
