1982 Yamaha ET340F Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1982 Yamaha ET340F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

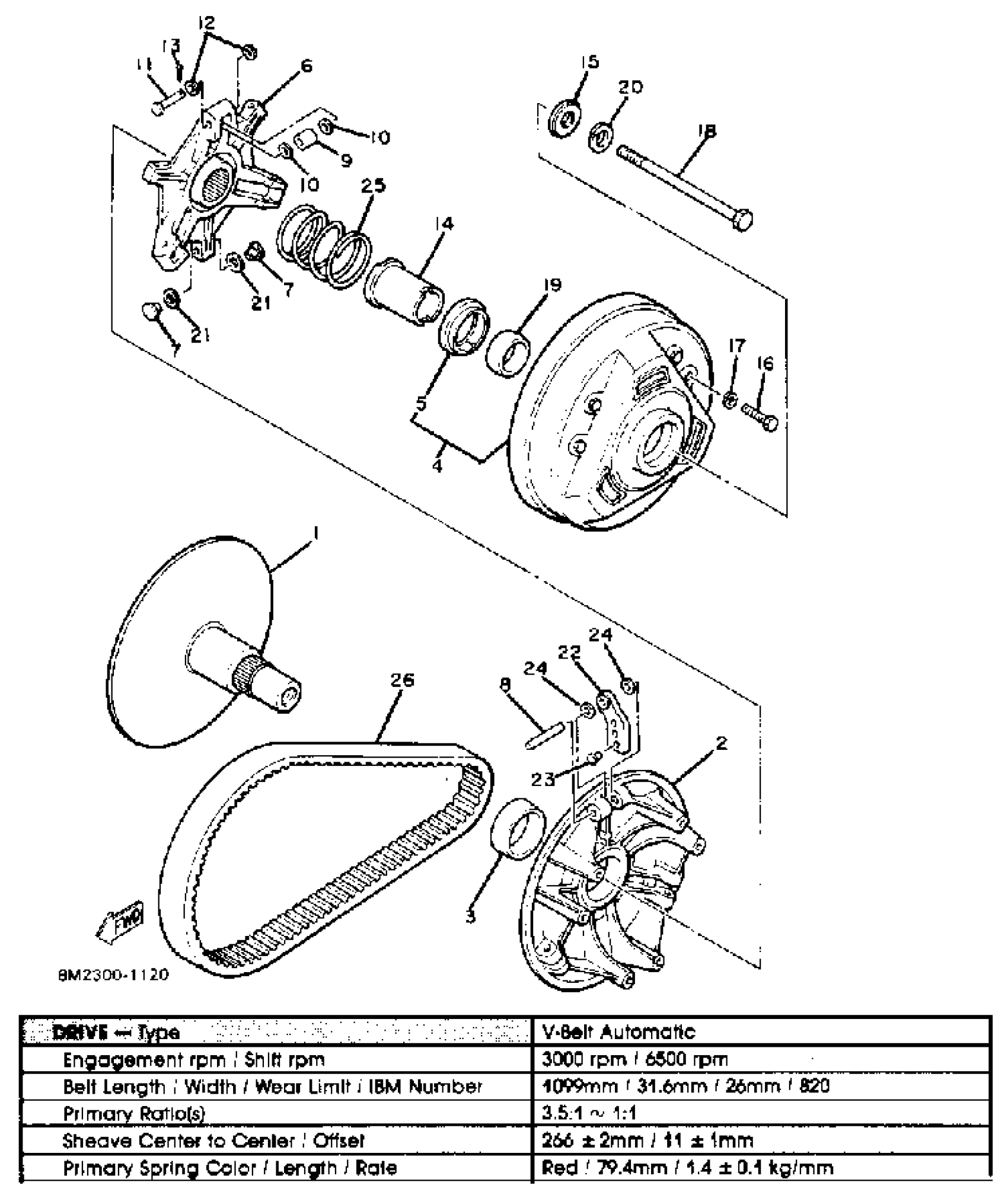

1982 Yamaha ET340F Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. FIXED SHEAVE

8H8-W1761-00-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

4

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

5

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

6

SPIDER

8A7-17627-00-00

1
Out of stock

7

SLIDER

8F2-17653-00-00

1

$10.03

In stock

8

PIN, DOWEL (8V8)

93607-44190-00

1
Out of stock

9

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

10

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

11

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

COLLAR

90387-28721-00

1
Out of stock

15

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT

90101-13406-00

1
Out of stock

19

. BUSH, SPEC''L SHAPE

90389-34019-00

1
Out of stock

20

WASHER, SPRING

90204-13010-00

1
Out of stock

21

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

22

WEIGHT 1

8G8-17632-00-00

—

$24.00

In stock

23

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

24

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

25

SPRING, COMPRESSION

90501-50500-00

1
Out of stock

26

V-BELT

820-17641-01-00

1

$33.66

In stock

26

CLUTCH TUNE UP KIT

(8G5-00000-50-00)

1
Out of stock

26

PRIMARY SHEAVE ASSEMBLY

8G6-17601-09-00

1
Out of stock

26

CLUTCH WEIGHT KIT

(8G8-17000-10-00)

1
Out of stock
