Description

Price

1

TRACK ASY

8J6-47110-02-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BOLT

90109-06464-00

Unavailable

9

AXLE, REAR

8E3-47521-00-00

Unavailable

10

PIN, SPRING (663)

91690-40040-00

Unavailable

11

WASHER

8E3-47384-00-00

Unavailable

12

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

13

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

14

CIRCLIP(48Y)

99009-47500-00

$9.49

15

WASHER, SPEC''L SHAP

90209-08124-00

Unavailable

16

BOLT, HEXAGON

97013-08020-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BRACKET KIT

8G5-47000-10-00

Unavailable

19

. BRACKET 4

8G8-47418-00-00

Unavailable

20

. BRACKET 7

8G8-47419-00-00

Unavailable

21

BOLT(21W)

97017-06035-00

Unavailable

22

IDLER WHEEL KIT

(8G5-47000-00-00)

Unavailable

23

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

24

BEARING(8AB)

93306-00444-00

$41.99

25

CIRCLIP(5U8)

99009-42500-00

$8.49

26

WASHER, SPEC''L SHAP

90209-06137-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

BOLT

90109-06464-00

Unavailable

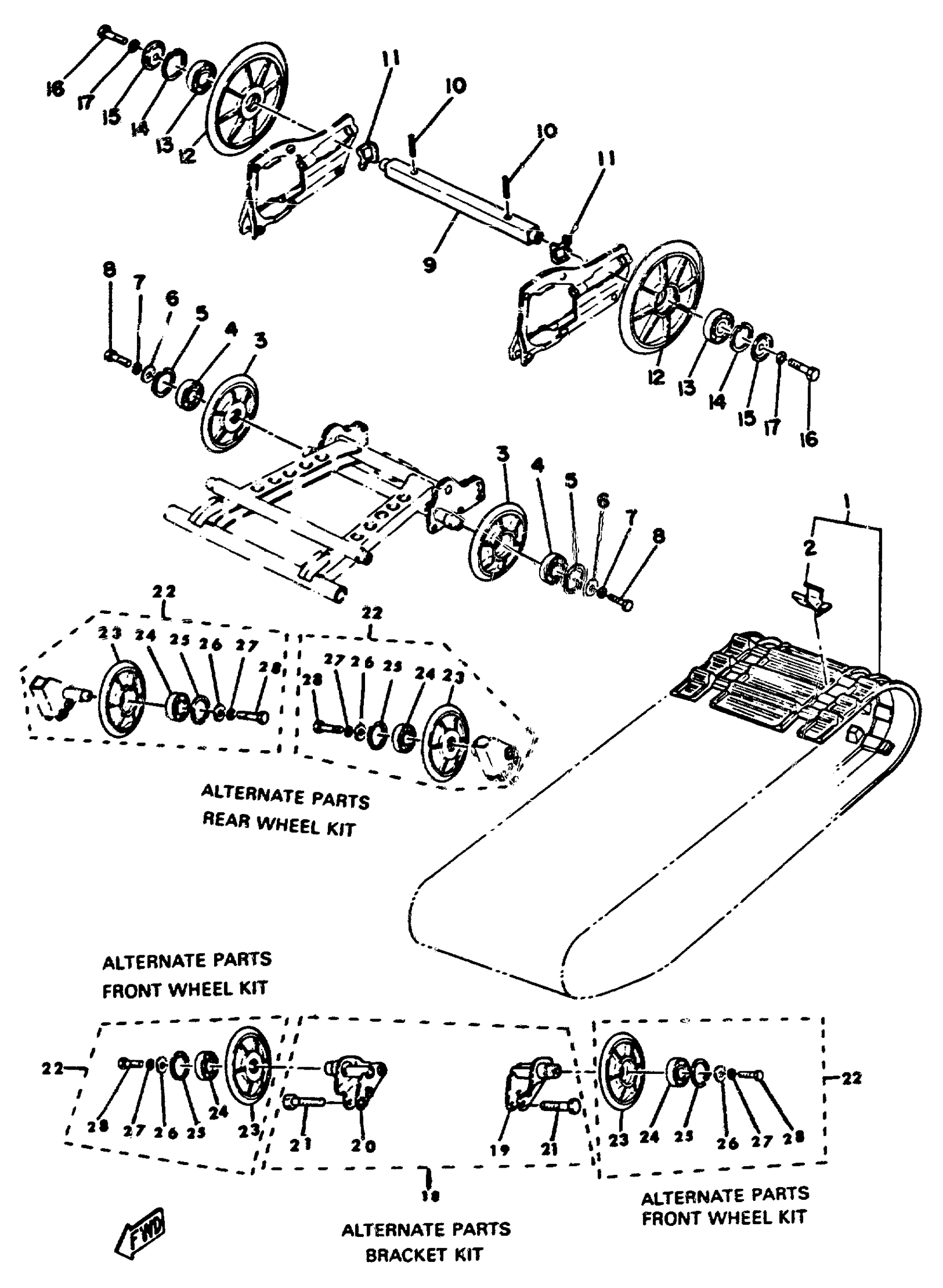

Yamaha ET340ED 1980 TRACK SUSPENSION 1 Diagram

TRACK ASY

METAL, SLIDE

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER, SPEC''L SHAP

WASHER, SPRING

BOLT

AXLE, REAR

PIN, SPRING (663)

WASHER

WHEEL GUIDE COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

WASHER, SPEC''L SHAP

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

BRACKET KIT

. BRACKET 4

. BRACKET 7

BOLT(21W)

IDLER WHEEL KIT

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER, SPEC''L SHAP

WASHER, SPRING

BOLT
