STEERING

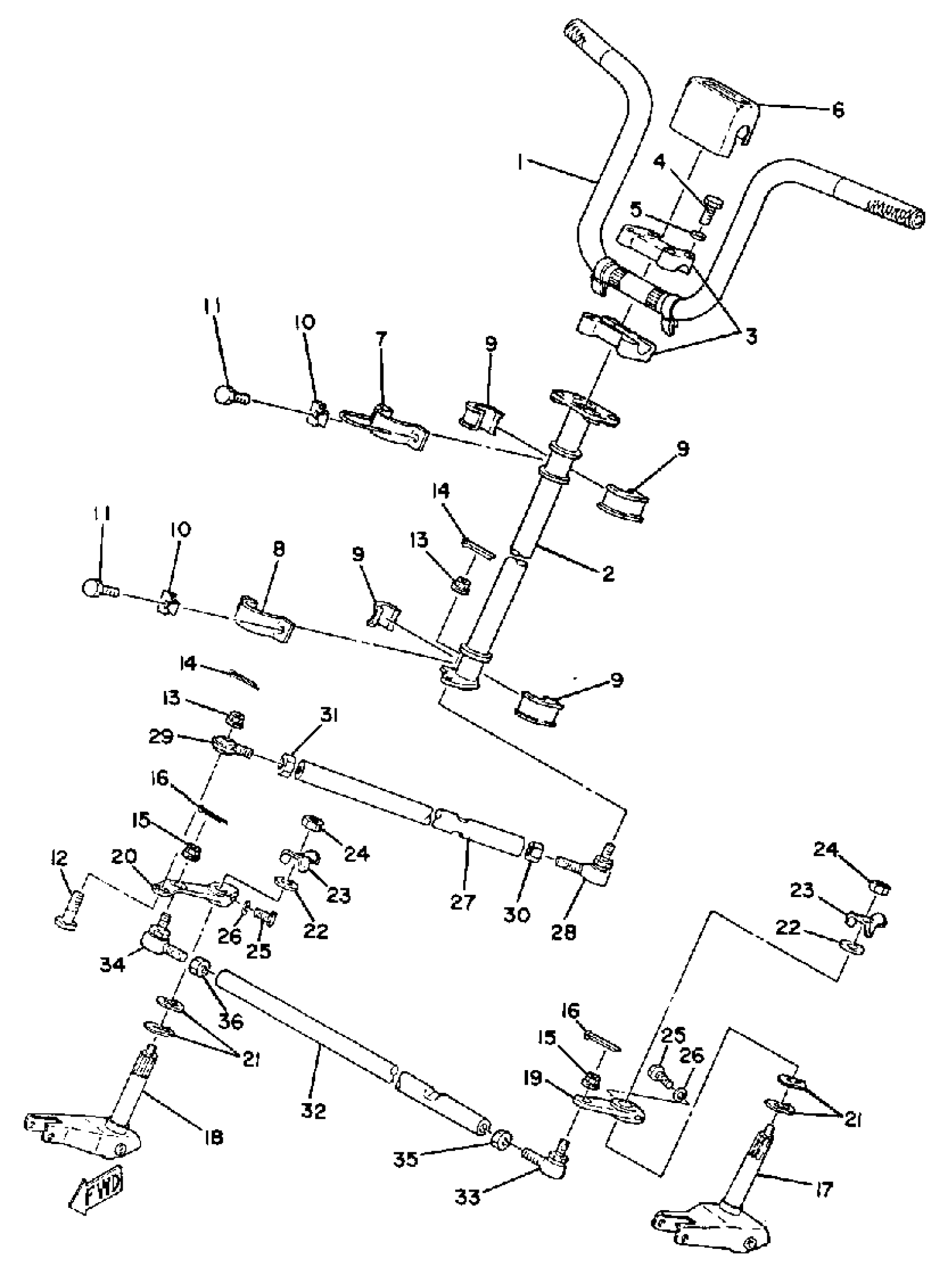

Yamaha ET340ED 1980 STEERING Diagram
#
1
COLUMN, STEERING
8G8-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8G8-23813-00-00
Unavailable
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
BOLT, HEXAGON
97013-08055-00
$2.55
5
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
6
COVER, STEERING
8F3-23818-00-00
Unavailable
7
HOLDER, BEARING
84M-23872-00-00
Unavailable
8
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK
90215-08143-00
Unavailable
11
BOLT, HEXAGON
97013-08016-00
$1.01
12
BOLT
90109-10482-00
Unavailable
13
NUT, NYLON
95707-10300-00
$8.49
14
PIN, COTTER
91490-20025-00
$1.99
15
NUT, NYLON
95707-10300-00
$8.49
16
PIN, COTTER
91490-20025-00
$1.99
17
COLUMN, SKI 1
83T-23853-00-00
Unavailable
18
COLUMN, SKI 2
83T-23854-00-00
Unavailable
19
ARM, OUTSIDE 1
8F3-23851-00-00
Unavailable
20
ARM, OUTSIDE 2
8F3-23852-00-00
Unavailable
21
WASHER, WAVE (878)
90206-20037-00
Unavailable
22
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
23
WASHER, LOCK
90215-10096-00
Unavailable
24
NUT(3BM)
95314-10600-00
Unavailable
25
BOLT, HEXAGON
97017-08025-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
27
ROD,STEERING RELAY
87F-23821-00-00
Unavailable
28
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
29
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
30
NUT (682)
95380-10700-00
Unavailable
31
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
32
ROD, TIE
8G8-23831-00-00
Unavailable
33
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
34
JOINT, UNIVERSAL 2
86X-23845-00-00
Unavailable
35
NUT (682)
95380-10700-00
Unavailable
36
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
