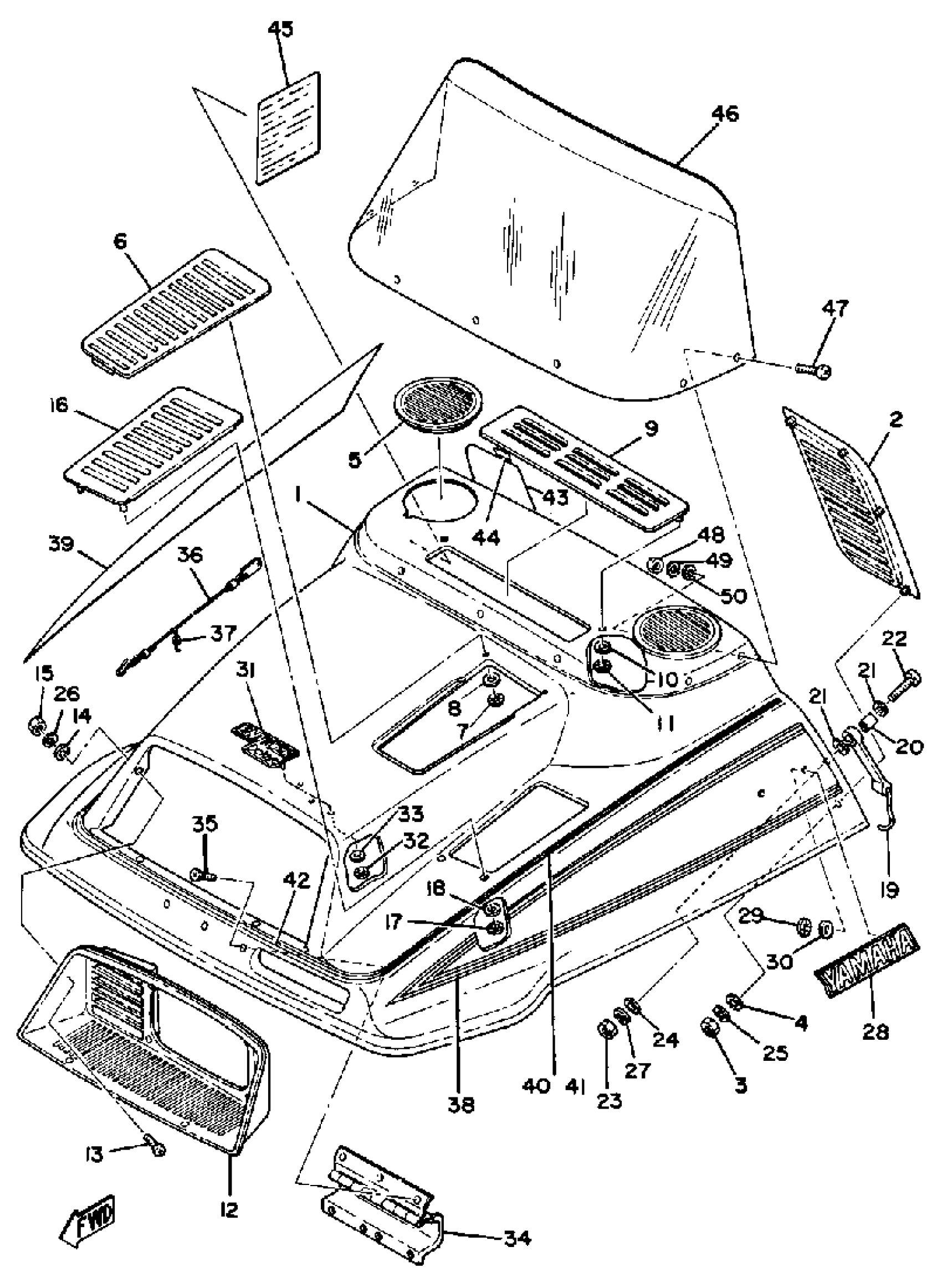

Yamaha ET340ED 1980 SHROUD - WINDSHIELD Diagram

#

Description
Price

1

SHROUD ASSEMBLY

8J9-W7711-00-00

Unavailable

2

LOUVER 1

8F3-77131-00-00

Unavailable

3

NUT, HEXAGON (663)

95380-05600-00

$8.49

4

. WASHER, PLAIN

92990-05200-00

Unavailable

5

LOUVER 3

8J9-77133-00-00

Unavailable

6

LOUVER 4

8J9-77134-00-00

Unavailable

7

NUT 6504269100

90183-05003-00

$9.49

8

EMBLEM 3

838-77143-00-00

Unavailable

9

LOUVER 5

8J4-77109-00-00

Unavailable

10

EMBLEM 3

838-77143-00-00

Unavailable

11

NUT 6504269100

90183-05003-00

$9.49

12

BODY, HEADLIGHT

8F3-84311-00-00

Unavailable

13

SCREW, BINDING

98907-05020-00

$8.49

14

WASHER, PLAIN (3GDF)

90201-051K1-00

$8.49

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

LOUVER 6

8J4-77108-00-00

Unavailable

17

NUT 6504269100

90183-05003-00

$9.49

18

EMBLEM 3

838-77143-00-00

Unavailable

19

LATCH ASSEMBLY

8G5-77170-00-00

Unavailable

20

SPACER

90560-07007-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

SCREW, BIND(J39)

98980-06030-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

EMBLEM 1

8H8-77141-00-00

Unavailable

29

NUT SPRING 116283170100

90183-04005-00

Unavailable

30

WASHER PLATE 174283160000

90202-04003-00

Unavailable

31

EMBLEM 3

8J9-77143-00-00

Unavailable

32

NUT SPRING 116283170100

90183-04005-00

Unavailable

33

WASHER PLATE 174283160000

90202-04003-00

Unavailable

34

HINGE ASSEMBLY

8F3-77140-00-00

Unavailable

35

SCREW, BIND (705)

98980-06016-00

Unavailable

36

STOPPER, SHROUD

8G8-77118-00-00

Unavailable

37

CLAMP,ROD

838-77159-00-00

Unavailable

38

ORNAMENT 1

8J9-77163-00-00

Unavailable

39

ORNAMENT 2

8J9-77164-00-00

Unavailable

40

STRIPE 4

8J9-77284-00-00

Unavailable

41

STRIPE 5

8J9-77285-00-00

Unavailable

42

STRIPE 1

8J9-77281-00-00

Unavailable

43

LABEL, WARNING

8F3-77458-00-00

Unavailable

44

LABEL, SAFETY

288-21659-00-00

Unavailable

45

INDICATOR 3

8J9-77743-00-00

Unavailable

46

WINDSHIELD

8N5-77210-00-00

Unavailable

47

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

48

NUT, HEXAGON (663)

95380-05600-00

$8.49

49

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

50

ORNAMENT SET

(8J9-70000-00-00)

Unavailable

50

WASHER, PLATE 8067717800

90201-05029-00

Unavailable
