1980 Yamaha ET340ED Guard - Luggage Box Diagram

← All diagrams

Find the part on the Guard - Luggage Box diagram for your 1980 Yamaha ET340ED, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

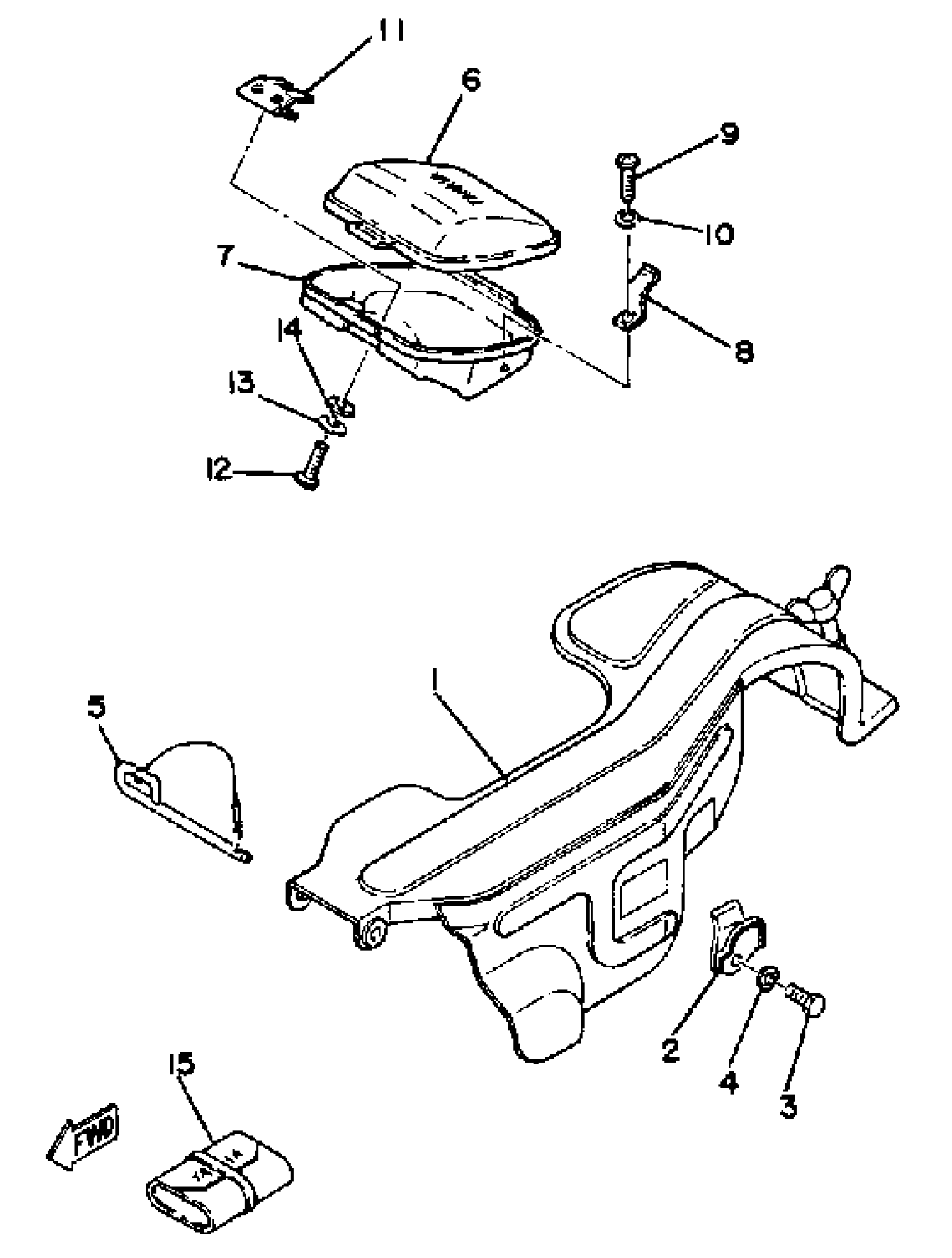

1980 Yamaha ET340ED Guard - Luggage Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8G8-77311-00-00

1
Out of stock

2

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

3

BOLT(JA9)

90101-08691-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

5

SHAFT

8F3-77327-00-00

1
Out of stock

6

LID

1T4-2177E-00-00

1
Out of stock

7

BOX

1T4-2177A-00-00

1
Out of stock

8

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

9

SCREW, PAN

98507-06014-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

12

SCREW, PAN

98507-06014-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

15

TOOL KIT

85L-28100-01-00

1
Out of stock
