1980 Yamaha ET340ED Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Yamaha ET340ED, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

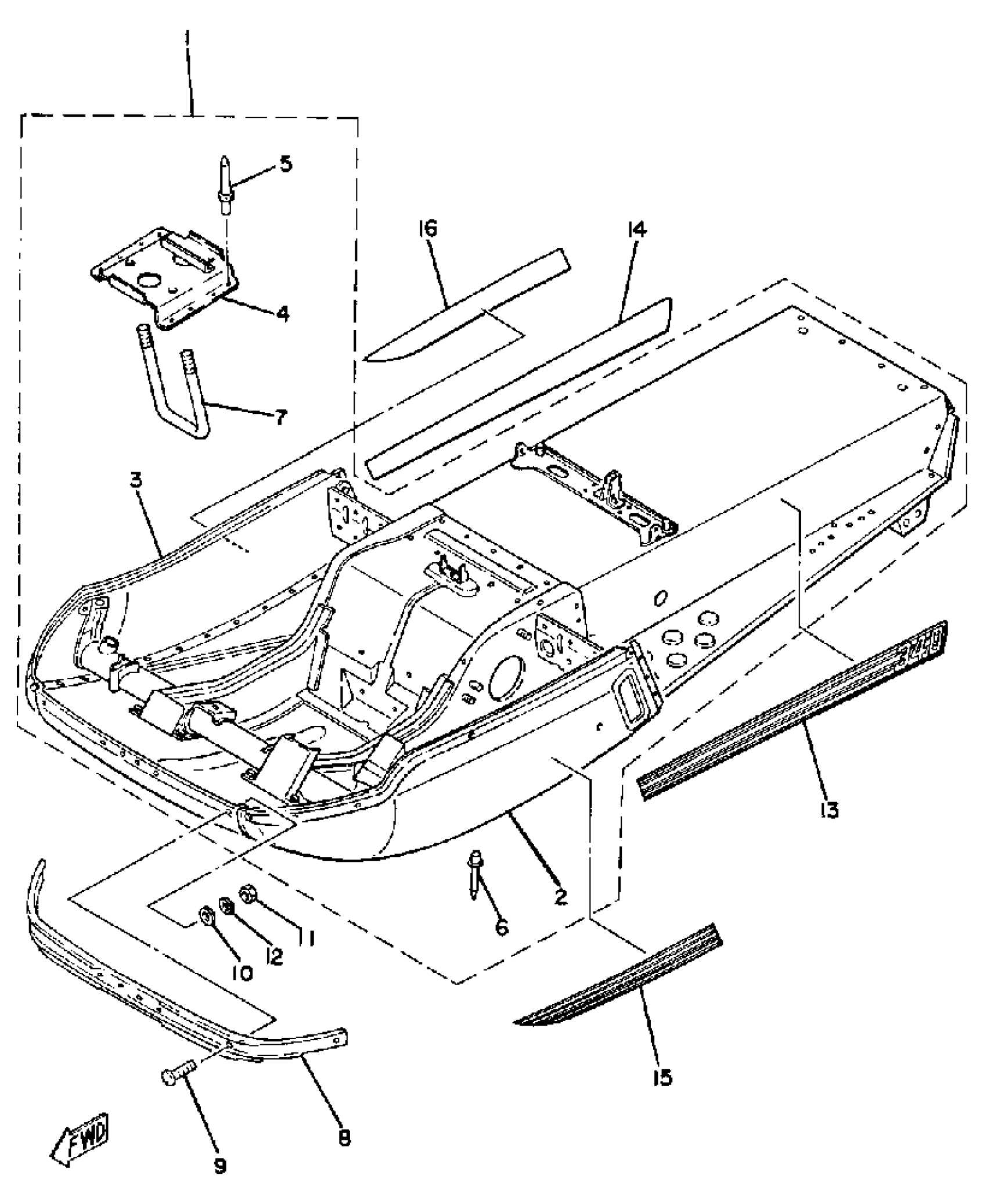

1980 Yamaha ET340ED Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8J9-21910-00-00)

1
Out of stock

2

. HOOD 1

8J6-21982-00-00

1
Out of stock

3

. HOOD 2

8J9-21983-00-00

1
Out of stock

4

. BRACKET, BATTERY

8J9-2199G-00-00

1
Out of stock

5

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

6

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

7

. SCREW, FITTING

8J4-82133-00-00

1
Out of stock

8

RNFCMNT, FRAME 1

8G8-21986-00-00

1
Out of stock

9

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

10

WASHER, PLATE

90201-06M08-00

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

EMBLEM 4

(8J9-77354-00-00)

1
Out of stock

14

EMBLEM 5

(8J9-77355-00-00)

1
Out of stock

15

EMBLEM 1

8J9-77351-00-00

1
Out of stock

16

EMBLEM 2

8J9-77352-00-00

1
Out of stock
