Description

Price

1

SEC FXD SHV

(8G8-17660-00-00)

Unavailable

2

. DISC, BRAKE

8F3-25711-00-00

Unavailable

3

RIVET

90263-05023-00

$1.59

4

PIN, SPRING TYPE

90254-08001-00

Unavailable

5

SPRING TORSION 806176830000

90508-40080-00

$15.99

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

Unavailable

7

SHOE, RAMP

801-17688-10-00

Unavailable

8

COLLAR

90387-19649-00

Unavailable

9

SPRKT,CHAIN DR

806-17682-30-00

Unavailable

9

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

Unavailable

9

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

Unavailable

10

WASHER, PLATE (35T)

90201-122H1-00

$9.49

11

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

12

PIN, COTTER(6L5)

91490-25030-00

$3.77

13

SEC SLIDING SHEAVE

85T-17670-00-00

Unavailable

14

SHAFT, SECONDARY

8G8-17681-02-00

Unavailable

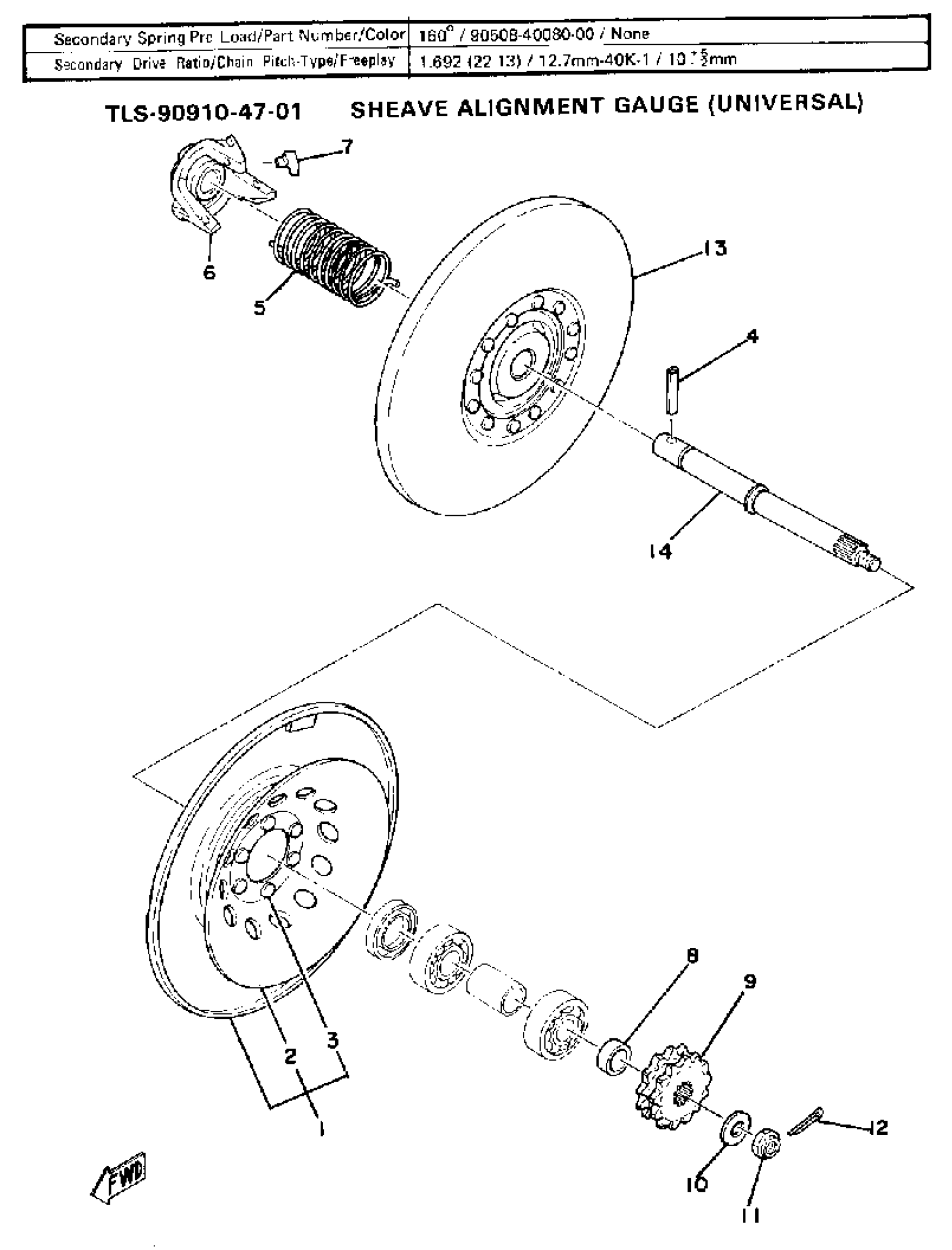

Yamaha ET340EC 1979 SECONDARY SHEAVE Diagram

SEC FXD SHV

. DISC, BRAKE

RIVET

PIN, SPRING TYPE

SPRING TORSION 806176830000

SEAT, SEC SPRINGSPRING

SHOE, RAMP

COLLAR

SPRKT,CHAIN DR

SPROCKET, CHAIN DRIVE (12T)

SPROCKET, CHAIN DRIVE (14T)

WASHER, PLATE (35T)

NUT, SELF LOCKING (23X)

PIN, COTTER(6L5)

SEC SLIDING SHEAVE

SHAFT, SECONDARY
