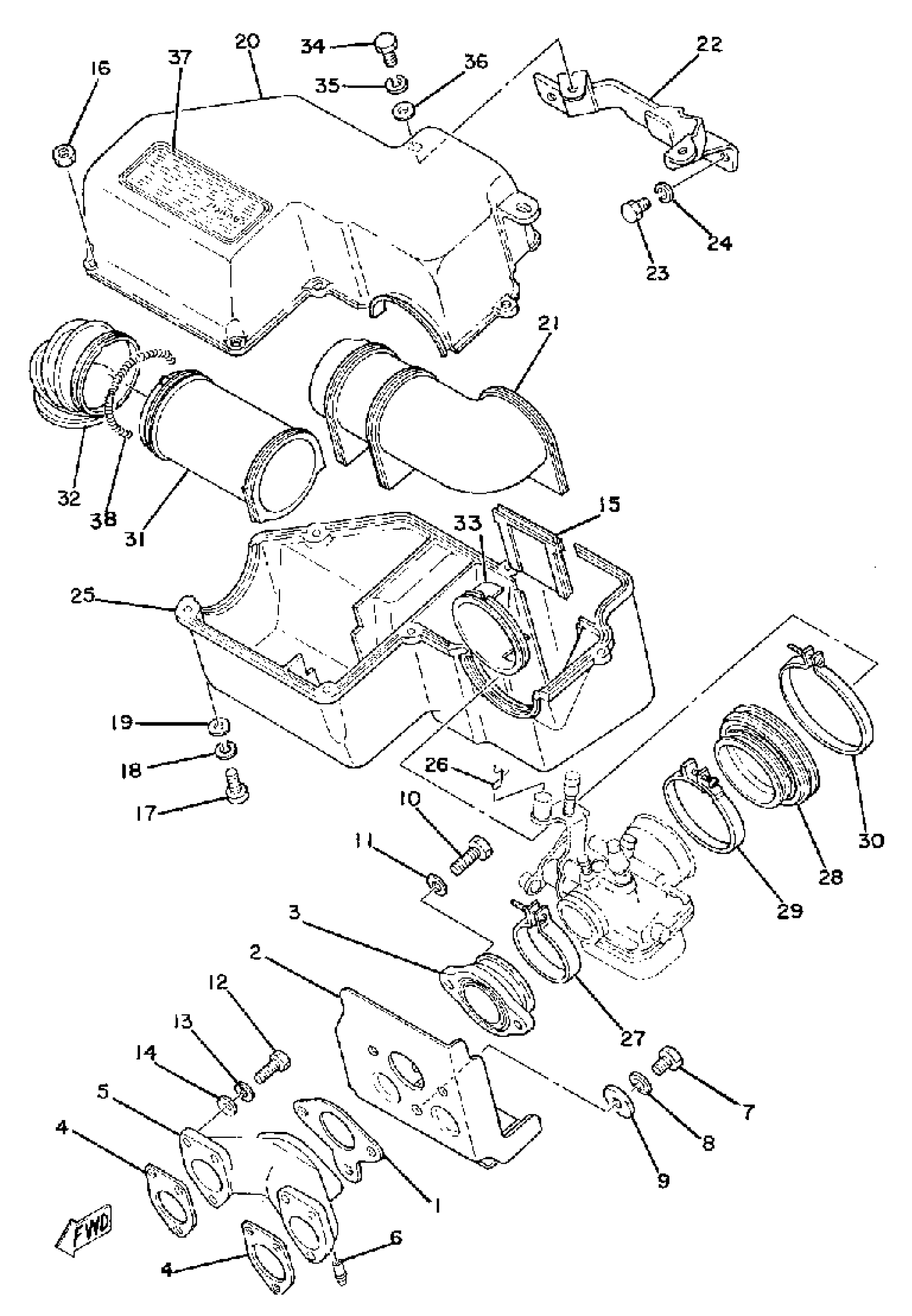

1979 Yamaha ET340EC Intake Diagram
Find the part on the Intake diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
GASKET, MANIFOLD
8Y2-13556-01-00
2
GASKET
8H5-13567-00-00
5
JOINT, CARBURETOR
8G8-13565-00-00
6
NOZZLE
824-13552-00-00
9
WASHER, PLATE
90209-08150-00
15
PLATE
8G8-14477-00-00
18
YBS67-5 WASHER, SPRING
92990-05100-00
19
WASHER, PLAIN (646)
92990-05600-00
20
SILENCER, INTAKE 1
8G8-14431-00-00
21
PIPE
8G8-14419-00-00
22
STAY 1
8G8-14498-00-00
26
CLAMP, THROTTLE
822-41222-00-00
29
CLAMP, HOSE (29L)
90460-68230-00
31
PIPE
8G8-14465-00-00
32
PIPE, SUCTION 1
8N5-14423-00-00
33
PIPE
8G8-14466-01-00
37
LABEL, CAUTION
8A5-14488-00-00
