1979 Yamaha ET340EC Carburetor Diagram

← All diagrams

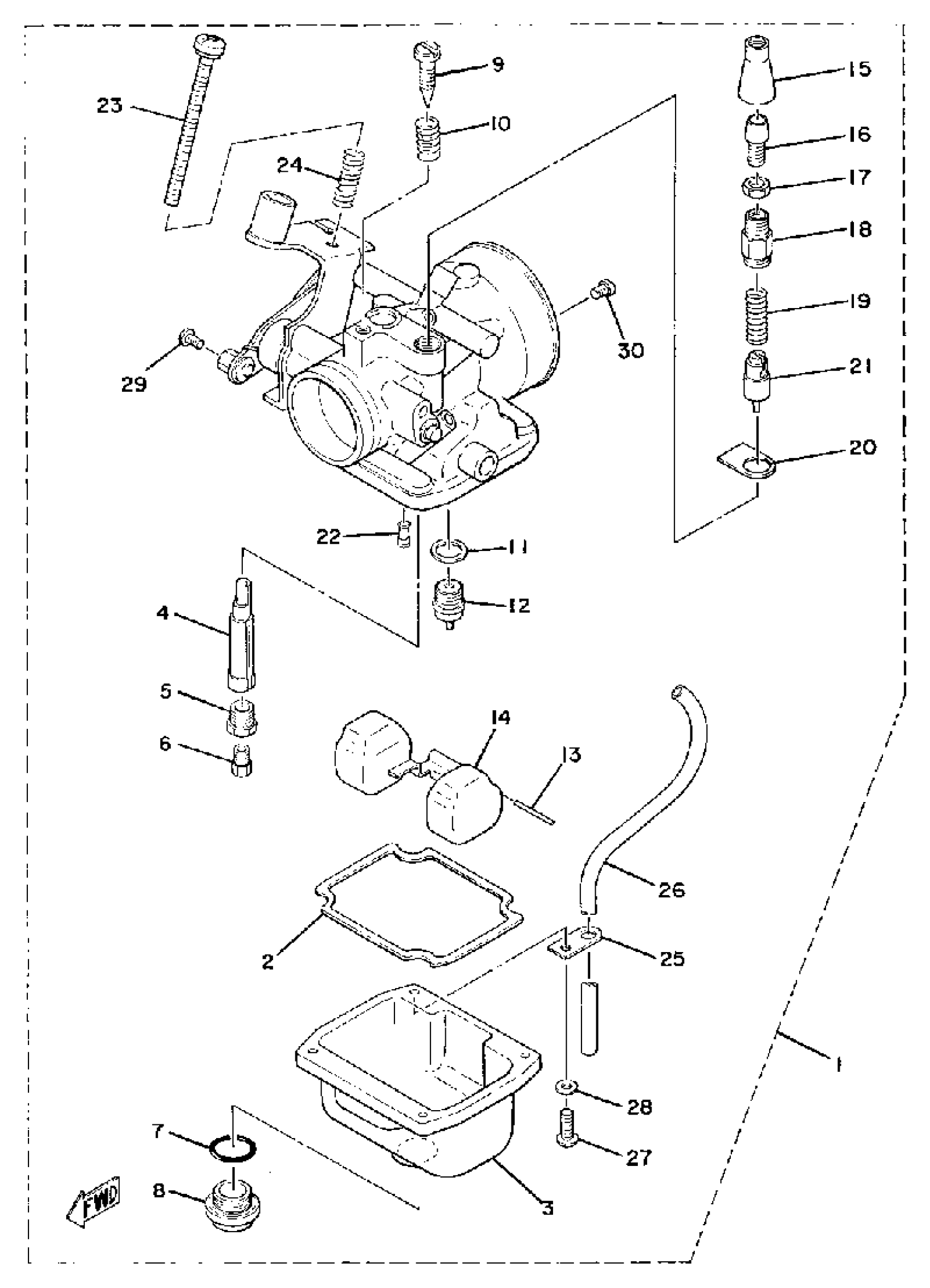

Find the part on the Carburetor diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET340EC Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8H5-14101-00-00)

1
Out of stock

2

. GASKET, FLOAT CHMBR

8G8-14184-00-00

1
Out of stock

3

BODY, FLOAT CHMBR 1

(8H5-14181-00-00)

1
Out of stock

4

. NOZZLE, MAIN

8G8-14141-00-00

1
Out of stock

5

. COVER, MAIN JET

8G8-14152-00-00

1
Out of stock

6

JET, MAIN #200

137-14143-40-A1

1
Out of stock

6

JET, MAIN #220

137-14143-44-A1

1
Out of stock

6

JET, MAIN #240

137-14143-48-A1

1
Out of stock

7

O-RING (541)

558-14147-00-00

1
Out of stock

8

PLUG, SCREW

500-14115-00-00

1

$25.29

In stock

9

. SCREW, AIR ADJUSTING

8G8-14123-00-00

1
Out of stock

10

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

11

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

12

VALVE SEAT ASSY

8H5-14190-15-00

1

$59.39

In stock

13

PIN, FLOAT

537-14186-00-00

1
Out of stock

14

. FLOAT

8H5-14185-00-00

1
Out of stock

15

CAP

8A7-14169-00-00

—

$15.80

In stock

16

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

17

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

18

CAP, PLUNGER

8G8-14174-00-00

—

$23.77

In stock

19

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

20

. PLATE, STARTER LVR

8G8-14178-00-00

1
Out of stock

21

PLUNGER, STARTER

8G8-14171-00-00

—

$26.92

In stock

22

. JET, PILOT (#75)

193-14142-75-00

1
Out of stock

23

SCREW, PAN HEAD

98580-05550-00

1

$3.03

In stock

24

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

25

. PLATE

313-14146-00-00

1
Out of stock

26

HOSE

89A-14987-00-00

—

$12.62

In stock

27

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

30

JET, AIR (#1.0)

239-14172-10-00

—

$9.08

In stock
