1979 Yamaha ET340EC Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

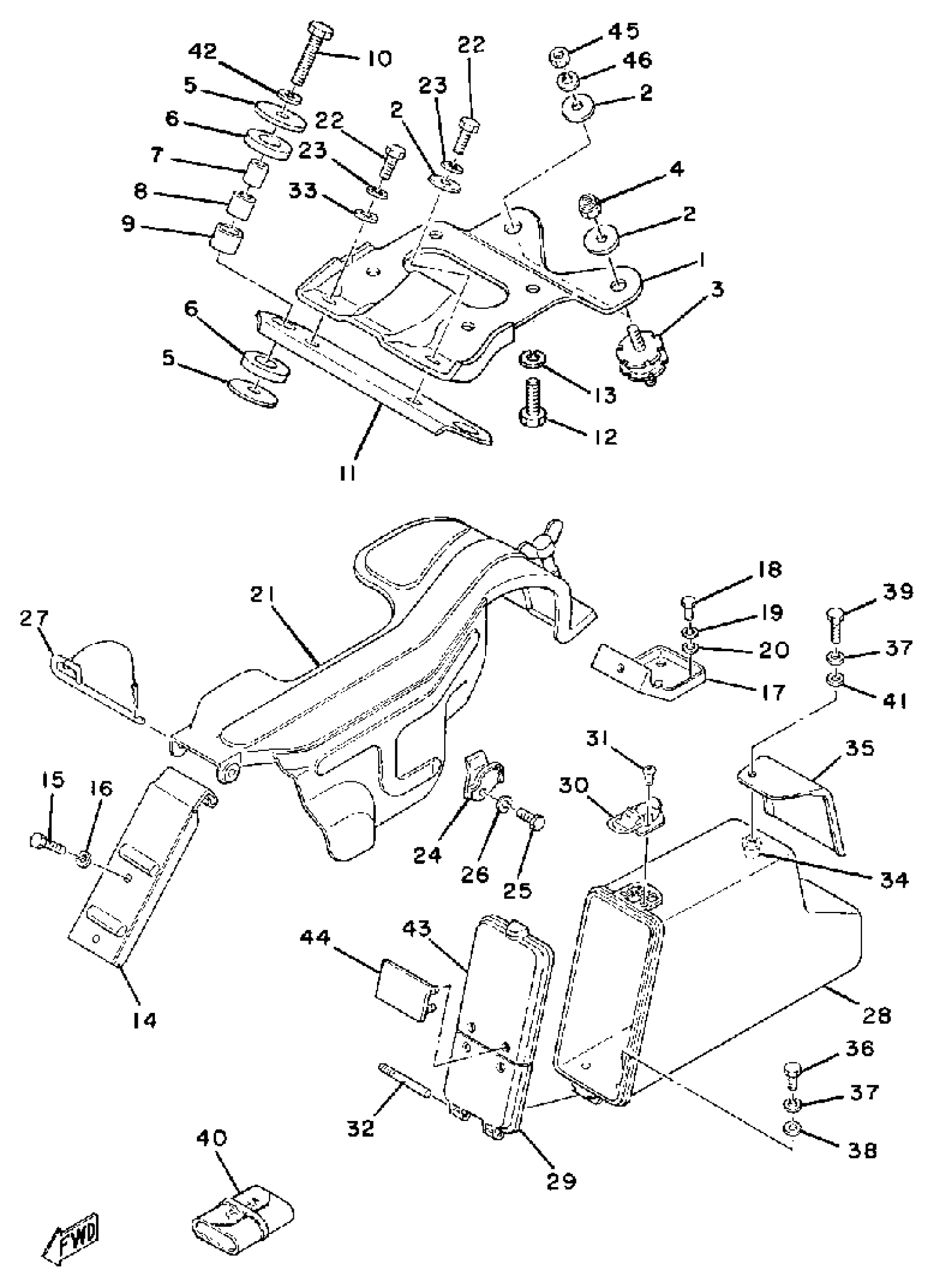

1979 Yamaha ET340EC Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8G8-21411-00-00

1
Out of stock

2

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

3

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

4

NUT, NYLON

95707-10300-00

1

$6.68

In stock

5

WASHER (888)

90201-10151-00

—

$3.94

In stock

6

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

7

COLLAR

90387-10514-00

1
Out of stock

8

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

9

COLLAR

90387-21515-00

1
Out of stock

10

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

11

BRACKET, ENGINE 2

8G8-21419-00-00

1
Out of stock

12

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

BRACKET 1

(8G5-77315-00-00)

1
Out of stock

15

BOLT(62E)

97013-08012-00

—

$2.48

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

17

BRACKET 2

(8F3-77316-01-00)

1
Out of stock

18

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

GUARD, DRIVE

8G8-77311-00-00

1
Out of stock

22

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

24

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

25

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

SHAFT

8F3-77327-00-00

1
Out of stock

28

LUGGAGE BOX

(8G8-77391-00-00)

1
Out of stock

29

COVER, LUGGAGE BOX

(8H5-77392-00-00)

1
Out of stock

30

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

31

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

32

PIN, SPEC''L SHAPE

(90249-03128-00)

1
Out of stock

33

WASHER

(92901-10639-00)

1
Out of stock

34

NUT, SPEC''L SHAPE

(90179-06254-00)

1
Out of stock

35

STAY 1

(8G8-77397-00-00)

1
Out of stock

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

39

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

40

TOOL KIT

85L-28100-01-00

—

$70.22

In stock

41

WASHER, PLATE

90201-06M08-00

1
Out of stock

42

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

43

COVER, LUGGE BOX 2

(8H5-77377-00-00)

1
Out of stock

44

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

1
Out of stock

45

NUT(3BM)

95314-10600-00

—

$1.74

In stock

46

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
