1979 Yamaha ET340EC Crankcase - Cylinder Diagram

← All diagrams

Find the part on the Crankcase - Cylinder diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

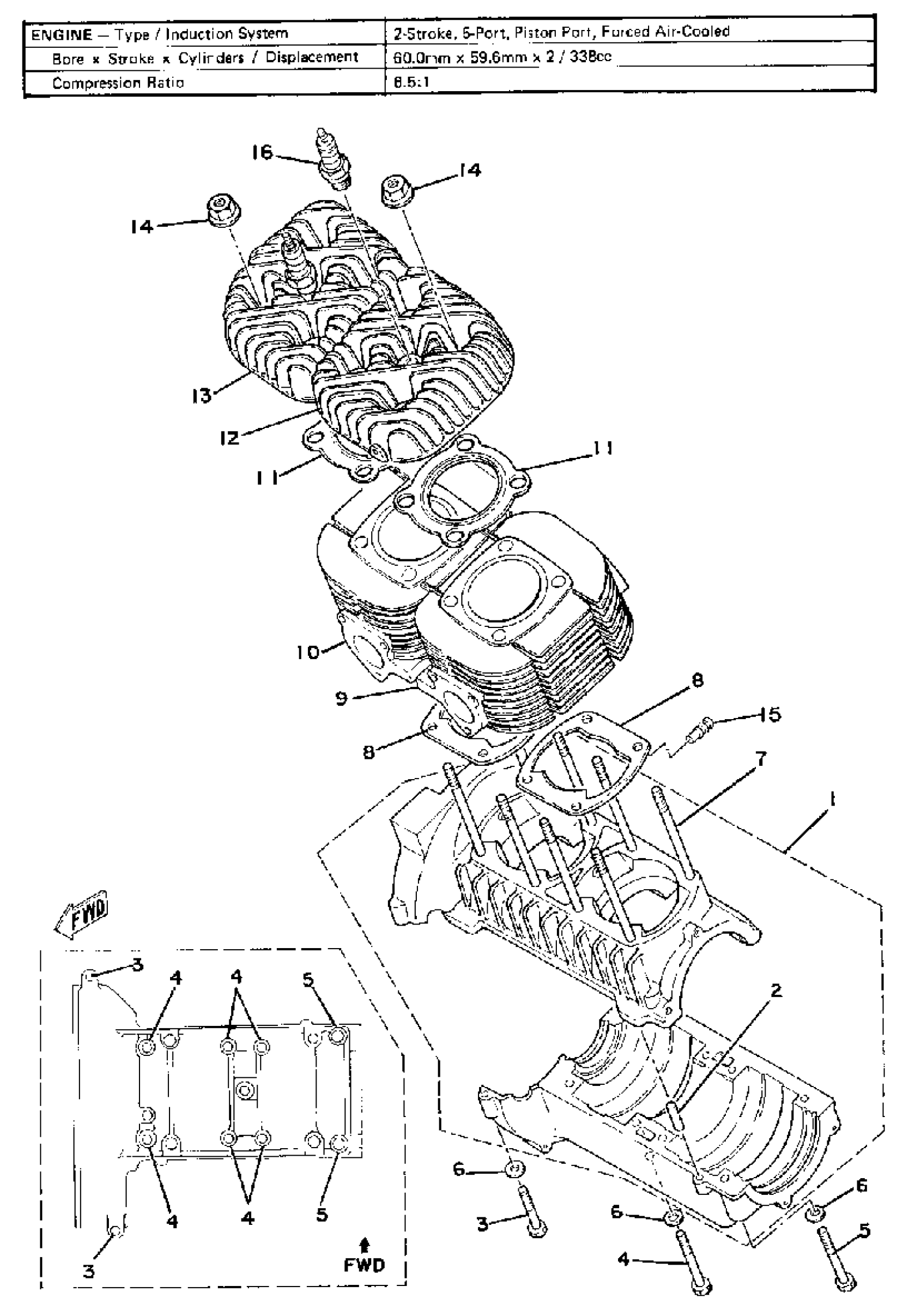

1979 Yamaha ET340EC Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(8J4-15100-00-00)

1
Out of stock

2

PIN, DOWEL (8G8)

93605-10108-00

1

$6.68

In stock

3

BOLT

97014-08040-00

1

$5.26

In stock

4

BOLT (663)

97013-08060-00

1

$3.25

In stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

BOLT, STUD

90116-08107-00

1
Out of stock

8

GASKET, CYLINDER

846-11351-02-00

1

$4.74

In stock

9

CYLINDER 1

8G8-11311-00-00

1
Out of stock

10

CYLINDER 2

8G8-11321-00-00

1
Out of stock

11

GASKET, CYLINDER HEAD 1

8G8-11181-01-00

1

$18.12

In stock

12

HEAD, CYLINDER 1

8G8-11111-00-00

1
Out of stock

13

HEAD, CYLINDER 2

8G8-11121-00-00

1
Out of stock

14

NUT, FLANGE

95704-08500-00

1
Out of stock

15

PIPE, JOINT

8G8-24461-00-00

1
Out of stock

16

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1

$14.69

In stock
