STEERING

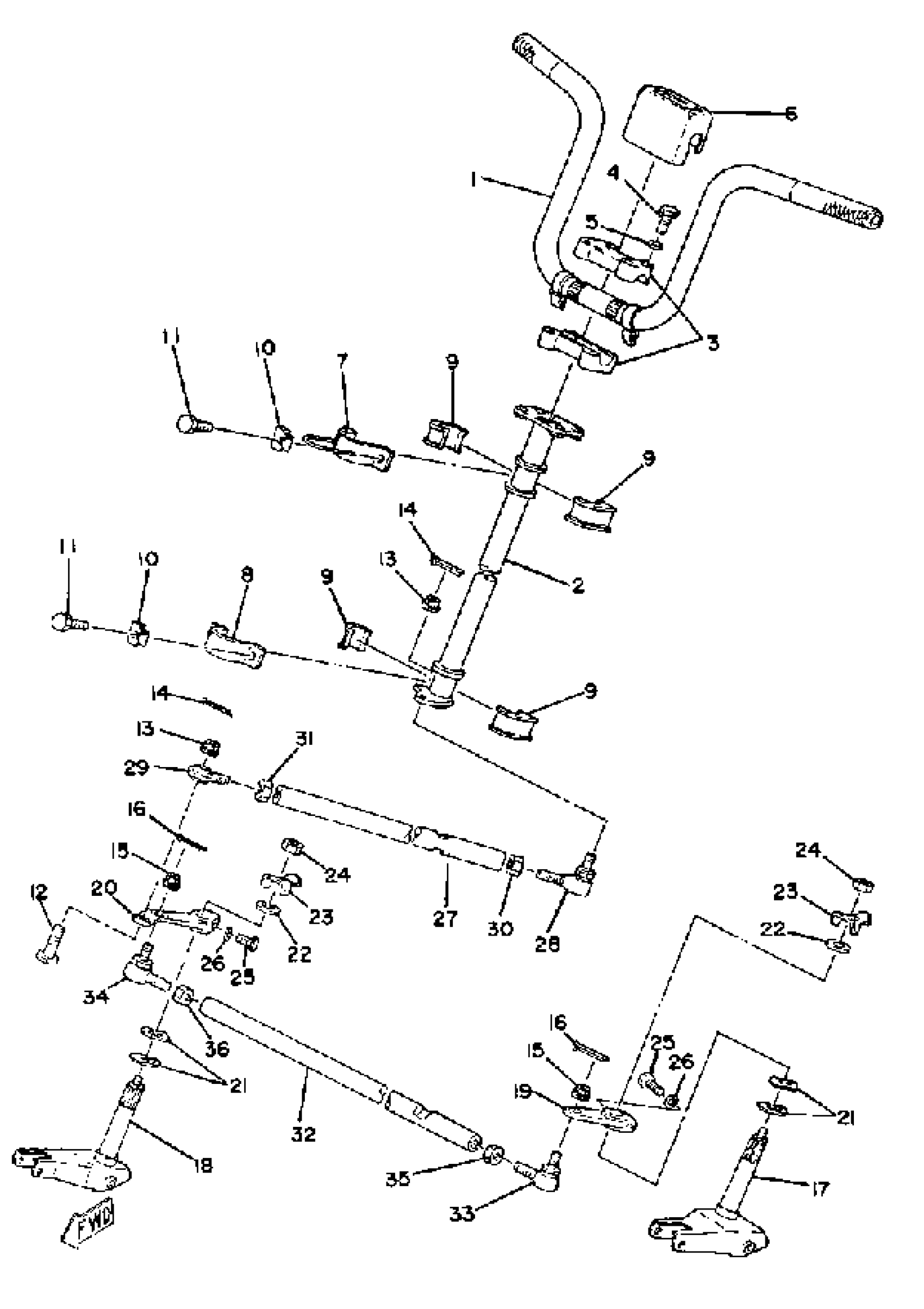

1980 Yamaha ET340D Steering Diagram
Find the part on the Steering diagram for your 1980 Yamaha ET340D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
COLUMN, STEERING
8G8-23811-00-00
2
COLUMN, STEERING 2
8G8-23813-00-00
3
HANDLE, HOLDER
164-23441-01-98
10
WASHER, LOCK
90215-08143-00
12
BOLT
90109-10482-00
17
COLUMN, SKI 1
83T-23853-00-00
18
COLUMN, SKI 2
83T-23854-00-00
19
ARM, OUTSIDE 1
8F3-23851-00-00
20
ARM, OUTSIDE 2
8F3-23852-00-00
21
WASHER, WAVE (878)
90206-20037-00
23
WASHER, LOCK
90215-10096-00
27
ROD,STEERING RELAY
87F-23821-00-00
32
ROD, TIE
8G8-23831-00-00
