1980 Yamaha ET340D Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1980 Yamaha ET340D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

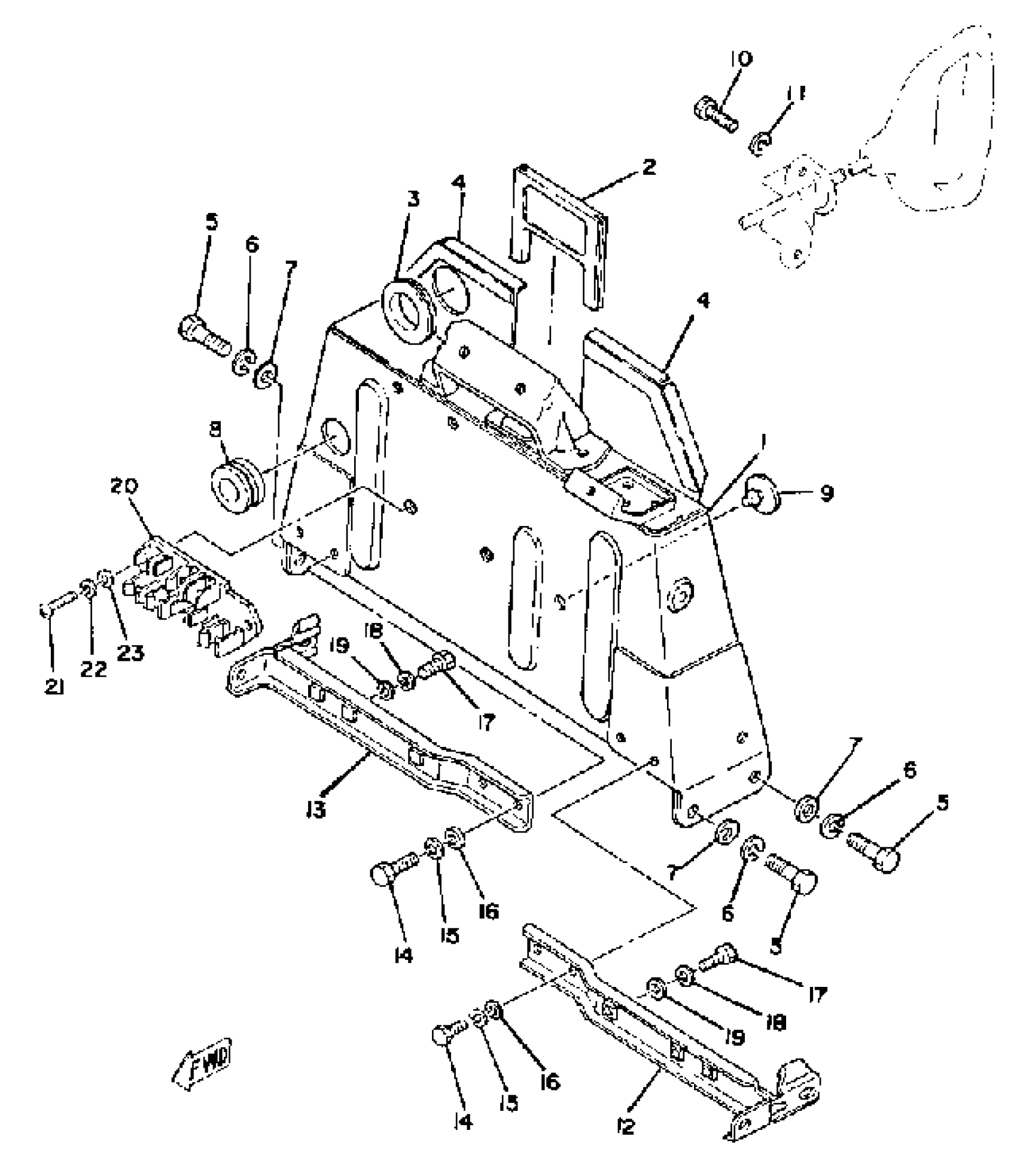

1980 Yamaha ET340D Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

(8K3-23871-00-00)

1
Out of stock

2

HOLDER, WIRE

(8G8-23874-00-00)

1
Out of stock

3

GROMMET 117217730000

90480-40047-00

1

$3.91

In stock

4

DAMPER 1

(8G8-77319-00-00)

1
Out of stock

5

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

GROMMET (1H3)

90480-28191-00

1

$9.51

In stock

9

PLUG, SPEC''L SHAPE

90338-09085-00

1
Out of stock

10

BOLT (661)

97013-06012-00

1

$4.71

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

BRACKET 13

8G5-23898-00-00

1
Out of stock

13

BRACKET 14

8G5-23899-00-00

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

BOLT (661)

97013-06012-00

1

$4.71

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

20

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
