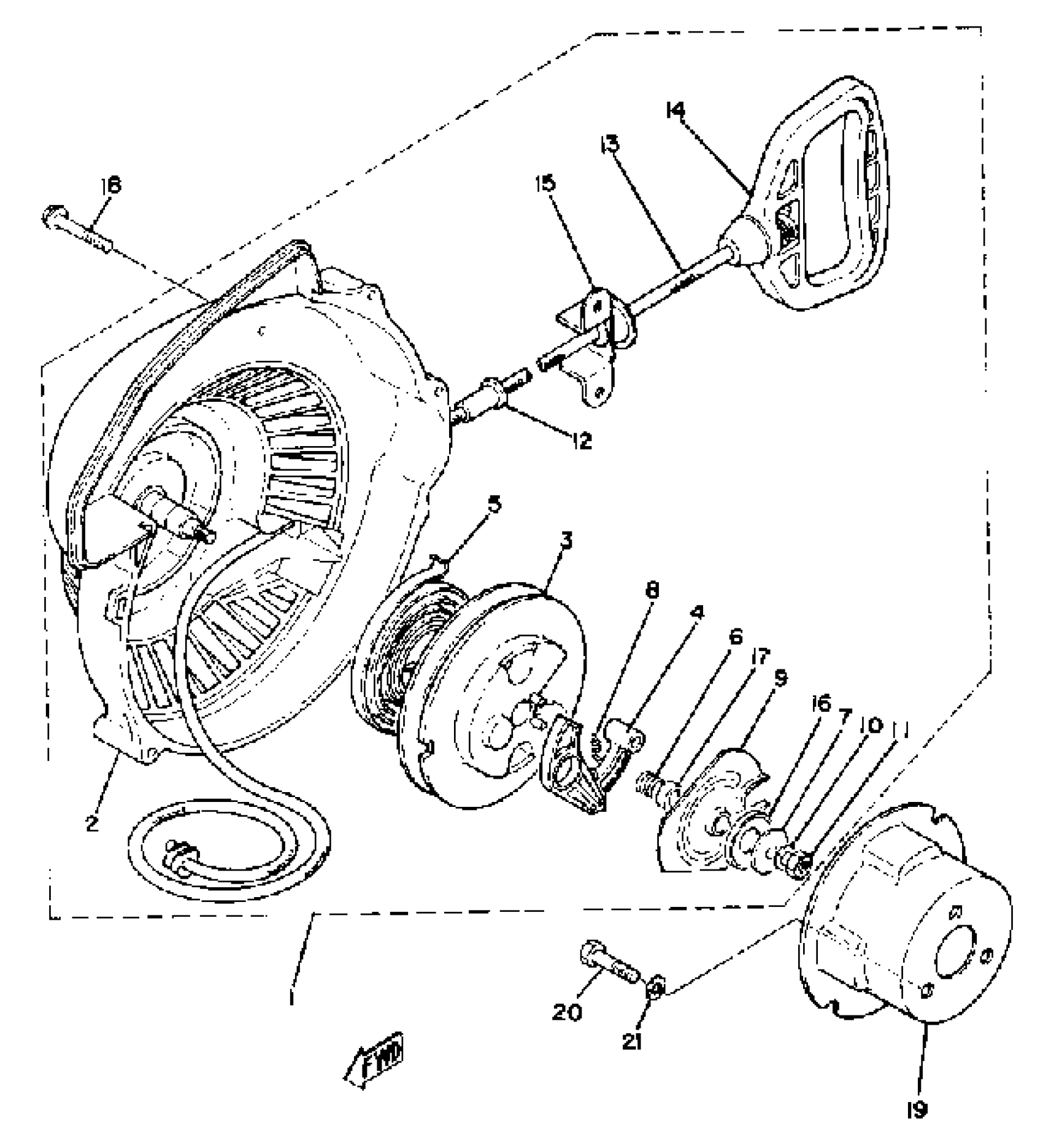

Yamaha ET340D 1980 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

8G8-15710-01-00

Unavailable

2

. CASE, STARTER

8G8-15711-01-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

PLATE, DRIVE

8F3-15716-03-00

$29.99

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

GUIDE, ROPE

8F3-15758-00-00

$20.99

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

HOLDER, HANDLE

8F3-15788-01-00

Unavailable

16

WASHER, THRUST

8G5-15739-00-00

Unavailable

17

COLLOR

82M-15779-00-00

Unavailable

18

BOLT, FLANGE

95817-06045-00

Unavailable

19

PULLEY, STARTER

8G8-15723-00-00

Unavailable

20

BOLT, HEXAGON

97017-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
