1980 Yamaha ET340D Guard - Luggage BOX Diagram

← All diagrams

Find the part on the Guard - Luggage BOX diagram for your 1980 Yamaha ET340D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

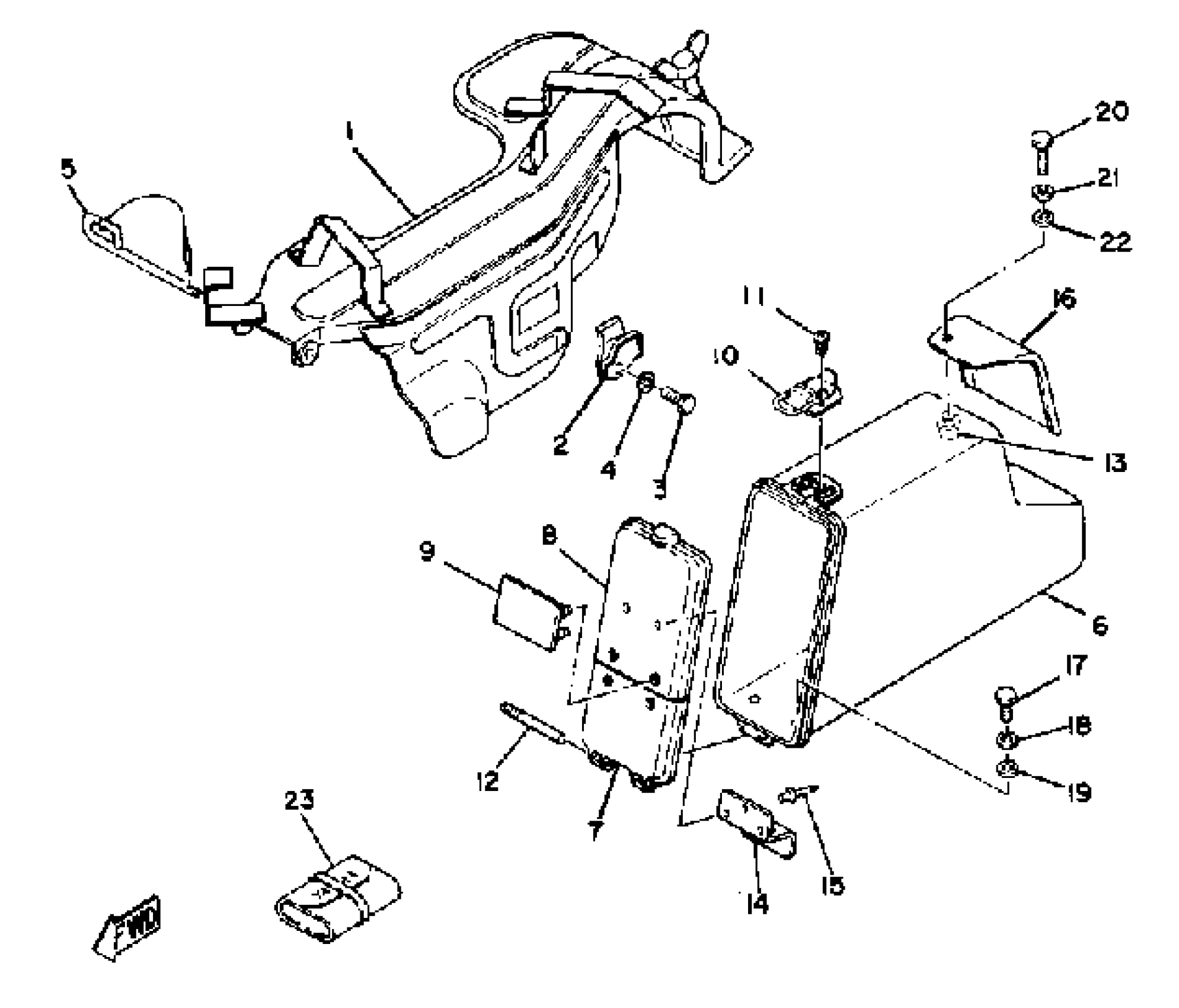

1980 Yamaha ET340D Guard - Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8G8-77311-00-00

1
Out of stock

2

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

3

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SHAFT

8F3-77327-00-00

1
Out of stock

6

LUGGAGE BOX

(8G8-77391-00-00)

1
Out of stock

7

COVER, LUGGAGE BOX

(8H5-77392-00-00)

1
Out of stock

8

COVER, LUGGE BOX 2

(8J6-77377-00-00)

1
Out of stock

9

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

1
Out of stock

10

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

11

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

12

PIN, SPEC''L SHAPE

(90249-03128-00)

1
Out of stock

13

NUT, SPEC''L SHAPE

(90179-06254-00)

1
Out of stock

14

BRACKET, SPARK PLUG

8H8-77376-00-00

1
Out of stock

15

RIVET (856)

90267-48014-00

1
Out of stock

16

STAY 1

(8G8-77397-00-00)

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

20

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE

90201-06M08-00

1
Out of stock

23

TOOL KIT

85L-28100-01-00

—

$70.22

In stock
