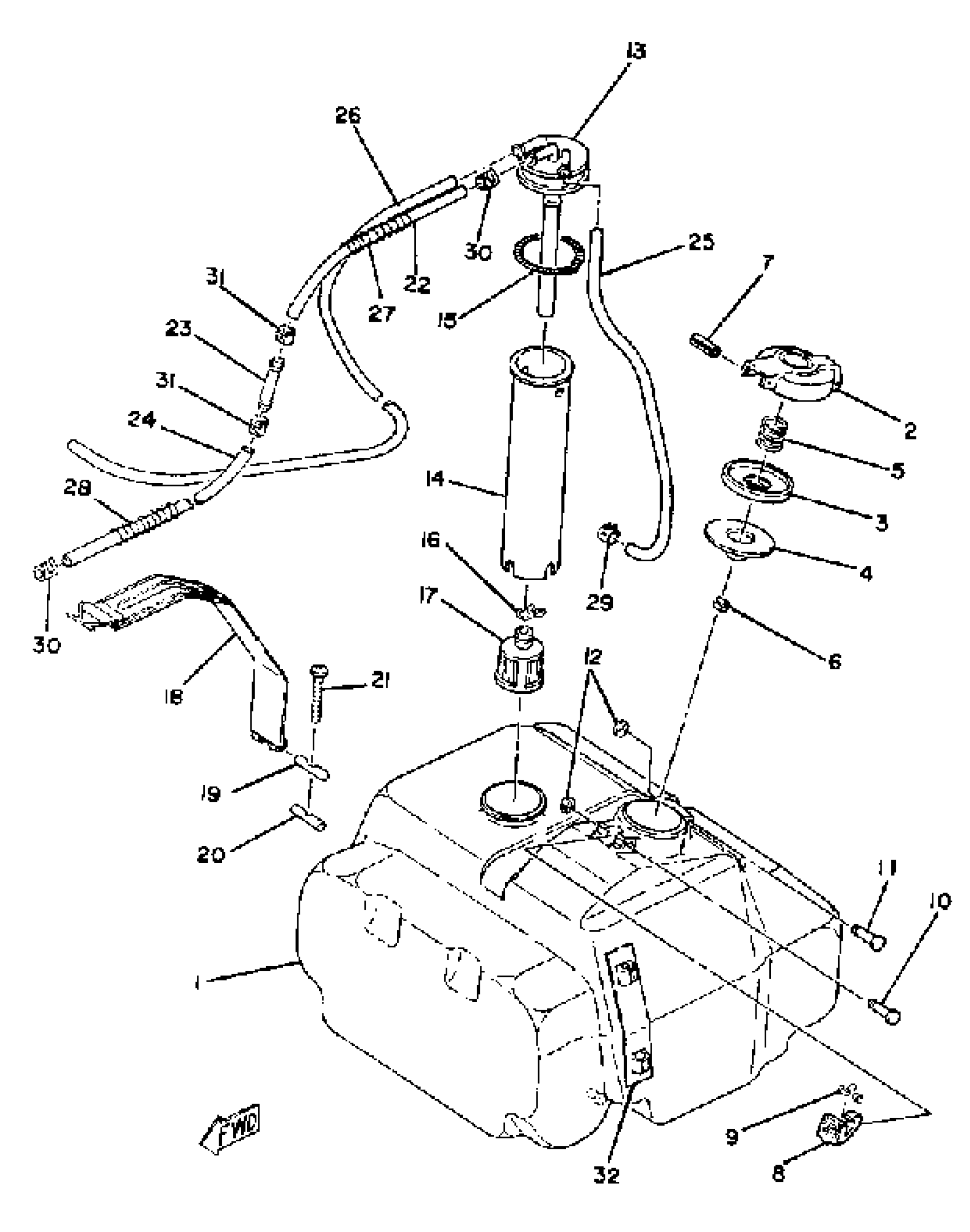

Yamaha ET340D 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

8G8-24111-00-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION (813-24637-00)

90508-08003-00

Unavailable

10

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

PIPE, SUCTION 1

8G8-24335-00-00

Unavailable

14

PIPE, SUCTUIN

813-24336-00-00

Unavailable

15

SPRING, TENSION (8R4)

90506-06261-00

$9.49

16

CLIP (8J7)

90467-11009-00

Unavailable

17

FILTER ASSY

8H5-24560-00-00

Unavailable

18

BAND, TNK FITTING 1

(883-24173-00-00)

Unavailable

19

CLAMP

806-24135-00-00

Unavailable

20

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

Unavailable

21

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

Unavailable

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

23

PIPE, JOINT 1

8Y4-24376-00-00

Unavailable

24

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

Unavailable

25

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

27

PROTECTOR, PIPE

8F3-24326-00-00

Unavailable

28

SPRING, COMPRESSION(7MX)

90501-084J0-00

Unavailable

29

CLIP (8A1)

90467-09026-00

Unavailable

30

CLIP

90467-11028-00

Unavailable

31

CLIP (8A1)

90467-09026-00

Unavailable

32

GAUGE, FUEL

(8G8-24179-00-00)

Unavailable
