SHROUD

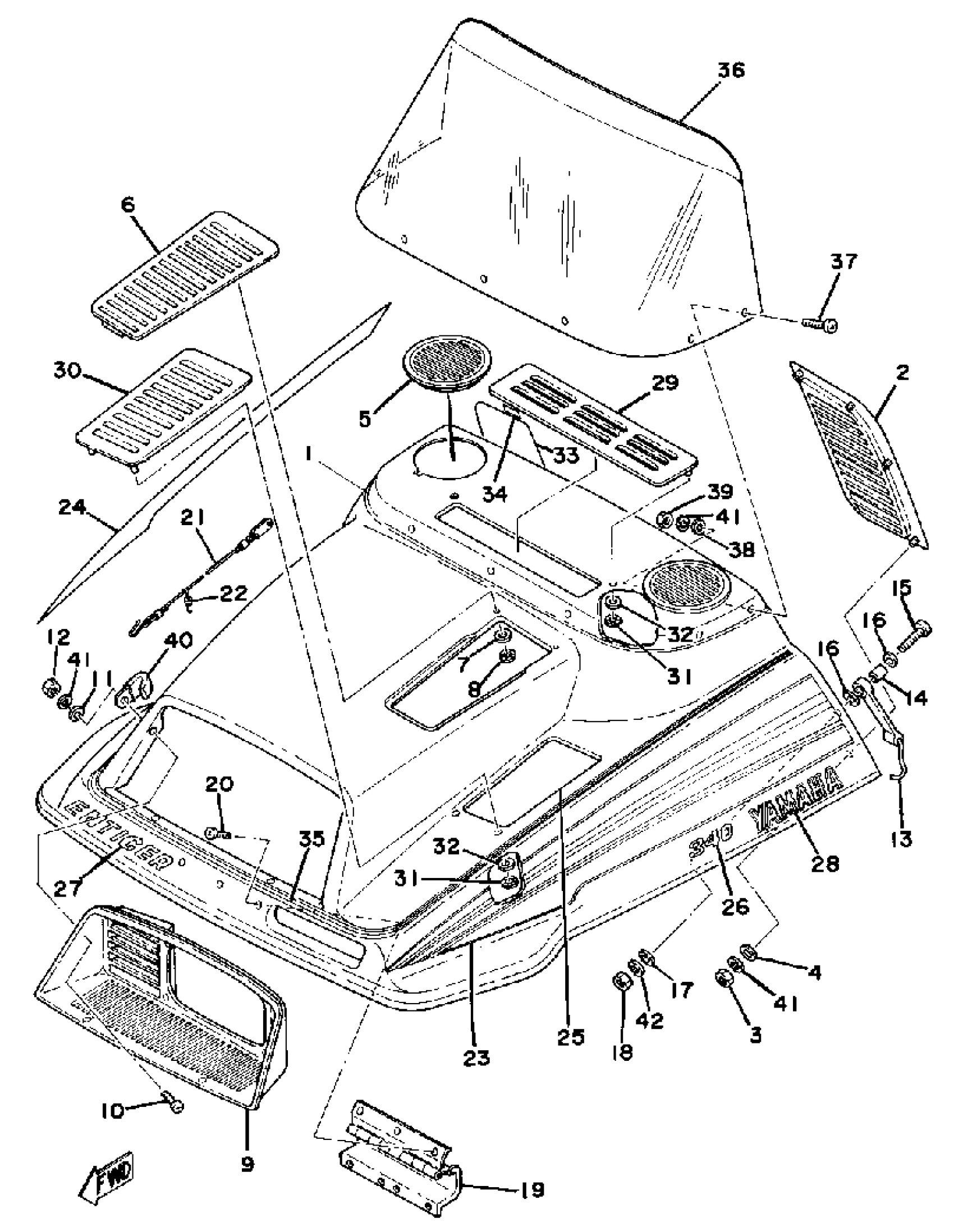

Yamaha ET340C 1979 SHROUD Diagram
#
1
SHROUD ASSEMBLY
8G8-W7711-01-00
Unavailable
2
LOUVER 1
8F3-77131-00-00
Unavailable
3
NUT, HEXAGON (663)
95380-05600-00
$8.49
4
. WASHER, PLAIN
92990-05200-00
Unavailable
5
LOUVER 3
8F3-77133-00-00
Unavailable
6
LOUVER 4
8G8-77134-02-00
Unavailable
7
EMBLEM 3
838-77143-00-00
Unavailable
8
NUT 6504269100
90183-05003-00
$9.49
9
BODY, HEADLIGHT
8F3-84311-00-00
Unavailable
10
SCREW, BINDING
98907-05020-00
$8.49
11
WASHER, PLAIN (3GDF)
90201-051K1-00
$8.49
12
NUT, HEXAGON (663)
95380-05600-00
$8.49
13
LATCH ASSEMBLY
8G5-77170-00-00
Unavailable
14
SPACER
90560-07007-00
$9.49
15
SCREW, BIND(J39)
98980-06030-00
$7.49
16
WASHER, PLATE
90201-06380-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
NUT, HEXAGON
95380-06600-00
Unavailable
19
HINGE ASSEMBLY
8F3-77140-00-00
Unavailable
20
SCREW, BIND (705)
98980-06016-00
Unavailable
21
STOPPER, SHROUD
8G8-77118-00-00
Unavailable
22
CLAMP,ROD
838-77159-00-00
Unavailable
23
ORNAMENT 1
(8H4-77163-00-00)
Unavailable
24
ORNAMENT 2
(8H4-77164-00-00)
Unavailable
25
ORNAMENT 3
(8H4-77169-00-00)
Unavailable
26
ORNAMENT 4
(8H5-77113-00-00)
Unavailable
27
EMBLEM 6
(8H5-77356-00-00)
Unavailable
28
EMBLEM 7
8H5-77357-00-00
Unavailable
29
LOUVER 5
8J4-77109-00-00
Unavailable
30
LOUVER 6
8J4-77108-00-00
Unavailable
31
NUT 6504269100
90183-05003-00
$9.49
32
EMBLEM 3
838-77143-00-00
Unavailable
33
LABEL, WARNING
8F3-77458-00-00
Unavailable
34
LABEL, SAFETY
288-21659-00-00
Unavailable
35
STRIPE 1
(8H4-77281-00-00)
Unavailable
36
WINDSHIELD
8N5-77210-00-00
Unavailable
37
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
38
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
39
NUT, HEXAGON (663)
95380-05600-00
$8.49
40
CLAMP
90465-08028-00
Unavailable
41
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
42
WASHER, SPRING
92995-06100-00
Unavailable
