REAR AXLE - WHEEL

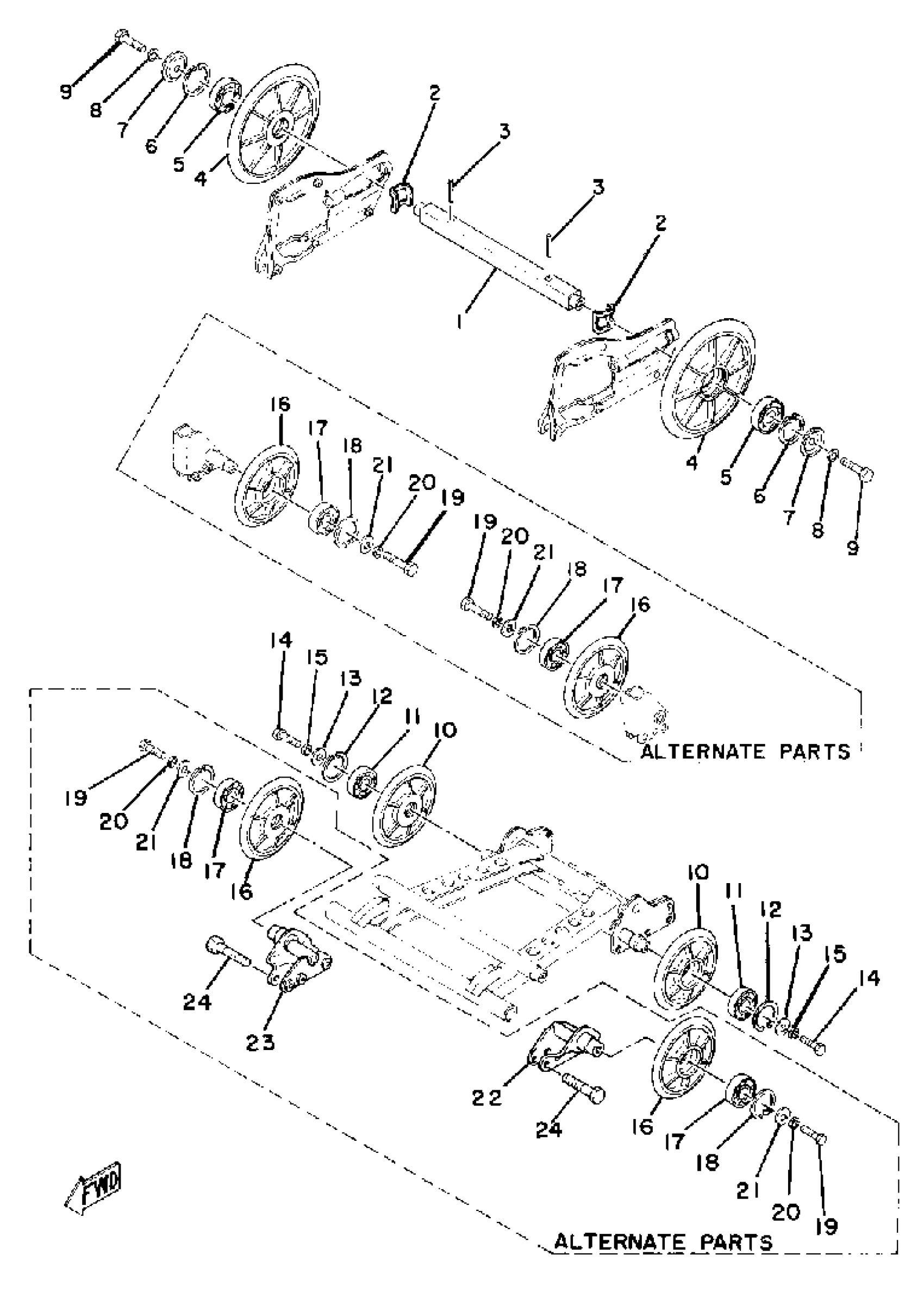

Yamaha ET340C 1979 REAR AXLE - WHEEL Diagram
#
Description
Price
1
AXLE, REAR
8E3-47521-00-00
Unavailable
2
WASHER
8E3-47384-00-00
Unavailable
3
PIN, SPRING (663)
91690-40040-00
Unavailable
4
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
5
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
6
CIRCLIP(48Y)
99009-47500-00
$9.49
7
WASHER, SPEC''L SHAP
90209-08124-00
Unavailable
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
BOLT, HEXAGON
97013-08020-00
$1.16
10
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
14
BOLT
90109-06464-00
Unavailable
15
IDLER WHEEL KIT
(8G5-47000-00-00)
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
17
BEARING(8AB)
93306-00444-00
$41.99
18
CIRCLIP(5U8)
99009-42500-00
$8.49
19
BOLT
90109-06464-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
BRACKET KIT
8G5-47000-10-00
Unavailable
21
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
22
. BRACKET 4
8G8-47418-00-00
Unavailable
23
. BRACKET 7
8G8-47419-00-00
Unavailable
24
BOLT(21W)
97017-06035-00
Unavailable
