- ET340C 1979
PUMP DRIVE GEAR

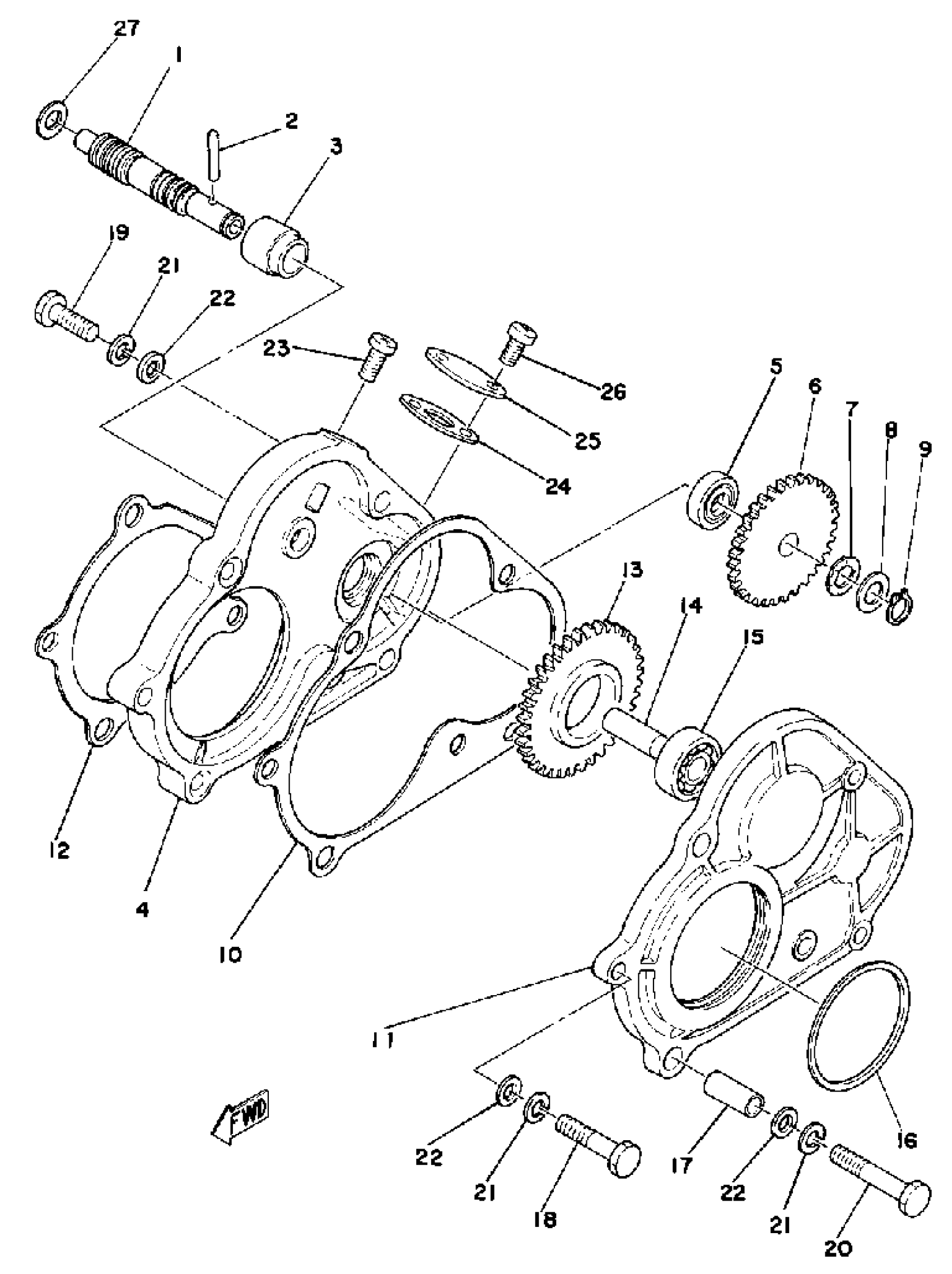

Yamaha ET340C 1979 PUMP DRIVE GEAR Diagram
#
Description
Price
1
SHAFT, WORM
821-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
8G8-15416-00-00
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
GASKET 2
8G8-15466-03-00
Unavailable
11
COVER, OIL PUMP R
8G8-15426-00-00
Unavailable
12
GASKET,O/PPCUR1
8G8-15456-03-00
Unavailable
13
GEAR, IDLE
8G8-13179-00-00
Unavailable
14
SHAFT, IDLE GEAR
8G8-13342-00-00
$4.08
15
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
16
OIL SEAL, SR-TYPE
93112-53004-00
Unavailable
17
PIN, DOWEL
91810-18025-00
Unavailable
18
BOLT, HEXAGON
97017-06030-00
Unavailable
19
BOLT, HEXAGON
97017-06020-00
Unavailable
20
BOLT (682)
97095-06040-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
24
GASKET
821-17818-02-00
Unavailable
25
CAP, HOUSING
824-17819-00-00
Unavailable
26
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
27
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
