INTAKE

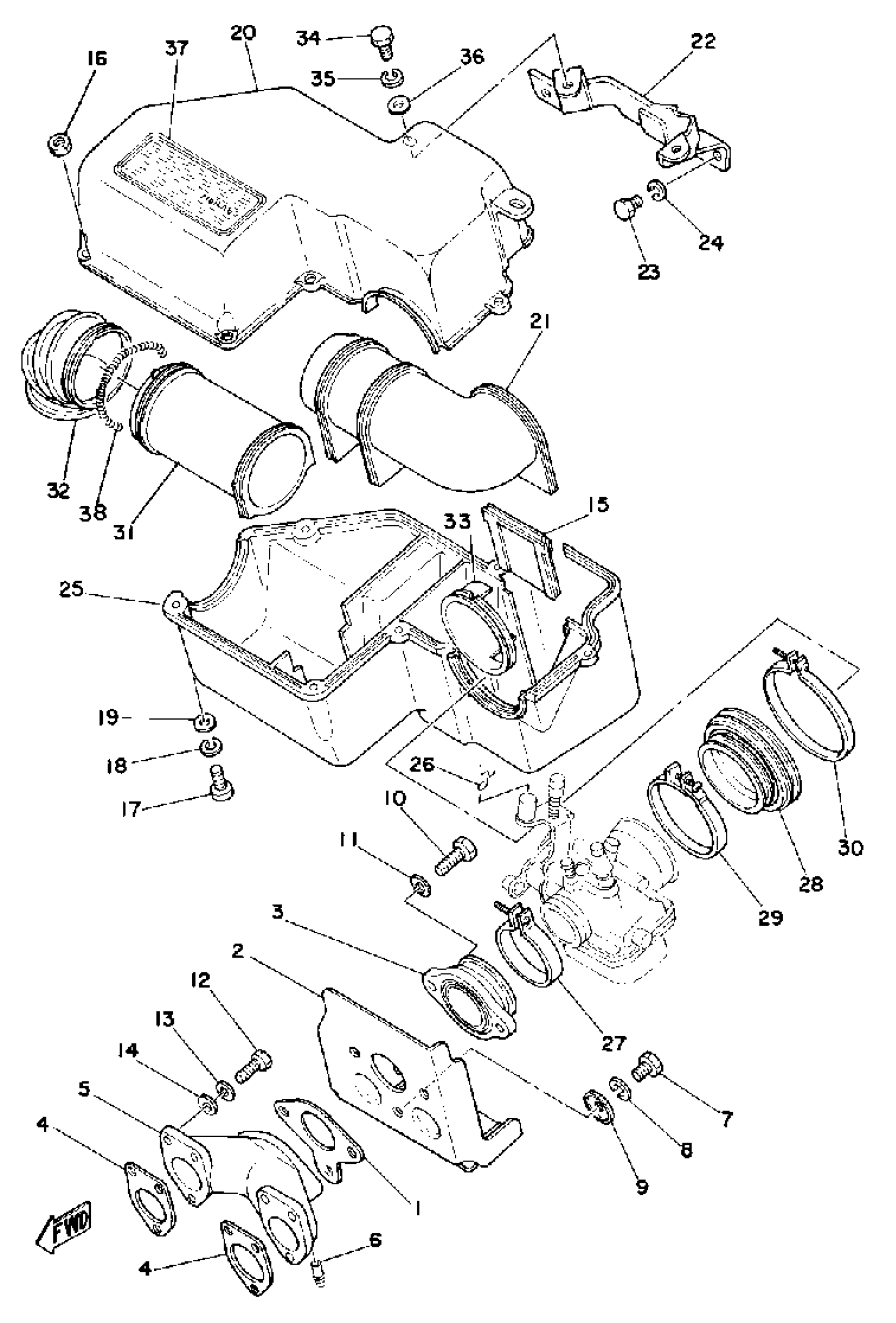

Yamaha ET340C 1979 INTAKE Diagram
#
1
GASKET, MANIFOLD
8Y2-13556-01-00
Unavailable
2
GASKET
8H5-13567-00-00
Unavailable
3
MANIFOLD
8G8-13555-01-00
$114.99
4
GASKET
8Y2-13563-02-00
$9.49
5
JOINT, CARBURETOR
8G8-13565-00-00
Unavailable
6
NOZZLE
824-13552-00-00
Unavailable
7
BOLT(62E)
97013-08012-00
Unavailable
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
WASHER, PLATE
90209-08150-00
Unavailable
10
BOLT, HEXAGON
97017-08025-00
$10.49
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
BOLT, HEXAGON
97017-06025-00
$4.24
13
WASHER, SPRING
92995-06100-00
Unavailable
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
PLATE
8G8-14477-00-00
Unavailable
16
NUT, HEXAGON (663)
95380-05600-00
Unavailable
17
SCREW, PAN HEAD
98580-05020-00
Unavailable
18
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
19
WASHER, PLAIN (646)
92990-05600-00
Unavailable
20
SILENCER, INTAKE 1
8G8-14431-00-00
Unavailable
21
PIPE
8G8-14419-00-00
Unavailable
22
STAY 1
8G8-14498-00-00
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
SILENCER 2
8G8-14441-00-00
Unavailable
26
CLAMP, THROTTLE
822-41222-00-00
Unavailable
27
BAND
86M-13575-00-00
Unavailable
28
JOINT, AIR CLEANER
8G8-14453-01-00
Unavailable
29
CLAMP, HOSE (29L)
90460-68230-00
Unavailable
30
CLAMP, HOSE(59V)
90460-85277-00
Unavailable
31
PIPE
8G8-14465-00-00
Unavailable
32
PIPE, SUCTION 1
8N5-14423-00-00
Unavailable
33
PIPE
8G8-14466-01-00
Unavailable
34
BOLT, HEXAGON
97017-06020-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
WASHER, PLATE 8087752500
90201-07081-00
Unavailable
37
LABEL, CAUTION
8A5-14488-00-00
Unavailable
38
SPRING TENSION 808144550000
90506-06083-00
Unavailable
