FUEL TANK

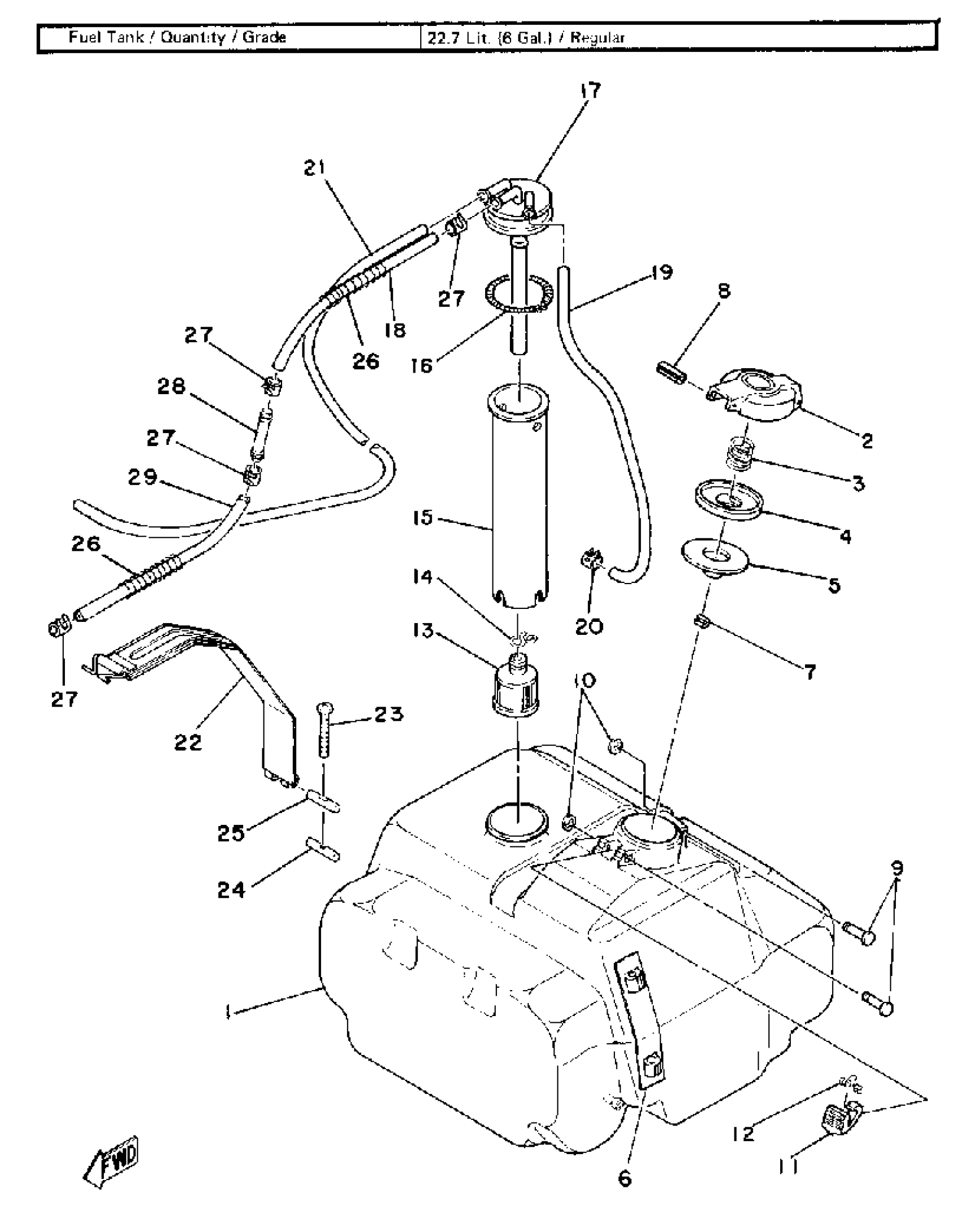

Yamaha ET340C 1979 FUEL TANK Diagram
#
1
FUEL TANK
8G8-24111-00-00
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
SPRING, CAP
90501-20130-00
$8.49
4
DISK,CAP
813-24613-01-00
$20.99
5
GASKET, CAP 1
89A-24641-00-00
$10.99
6
GAUGE, FUEL
(8G8-24179-00-00)
Unavailable
7
PIN, SPRING
91690-30016-00
Unavailable
8
PIN, SPRING
91609-25032-00
$2.49
9
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
10
CIRCLIP (604)
93430-02001-00
$8.49
11
HOOK
83M-24628-00-00
$24.99
12
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
13
FILTER ASSY
8H5-24560-00-00
Unavailable
14
CLIP (8J7)
90467-11009-00
$10.49
15
PIPE, SUCTION 2
(8G8-24336-00-00)
Unavailable
16
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
17
PIPE, SUCTION 1
8G8-24335-00-00
Unavailable
18
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
19
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
Unavailable
20
CLIP (8A1)
90467-09026-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
22
BAND, TNK FITTING 1
(883-24173-00-00)
Unavailable
23
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
24
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
25
CLAMP
806-24135-00-00
Unavailable
26
PROTECTOR, PIPE
8F3-24326-00-00
Unavailable
27
CLIP
90467-11028-00
Unavailable
28
PIPE, JOINT 4
878-24379-00-00
Unavailable
29
HOSE
(90446-11027-00)
Unavailable
