Description

Price

1

EXHAUST PIPE ASSY 1

8G8-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

8G8-14613-01-00

$4.82

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

WASHER, SPRING

92995-06100-00

Unavailable

5

SPRING, MUFFLER

821-14773-00-00

$18.49

6

MUFFLER ASSEMBLY L

8M8-14710-00-00

Unavailable

7

STAY, MUFFLER 1

8G8-14771-00-00

Unavailable

8

SPRING, TENSION

90506-16130-00

Unavailable

9

BOLT, HEXAGON

97013-08030-00

$2.49

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

PIN, DOWEL(J38)

91812-16001-00

$7.49

12

DAMPER, MUFFLER

8G8-14747-00-00

Unavailable

13

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

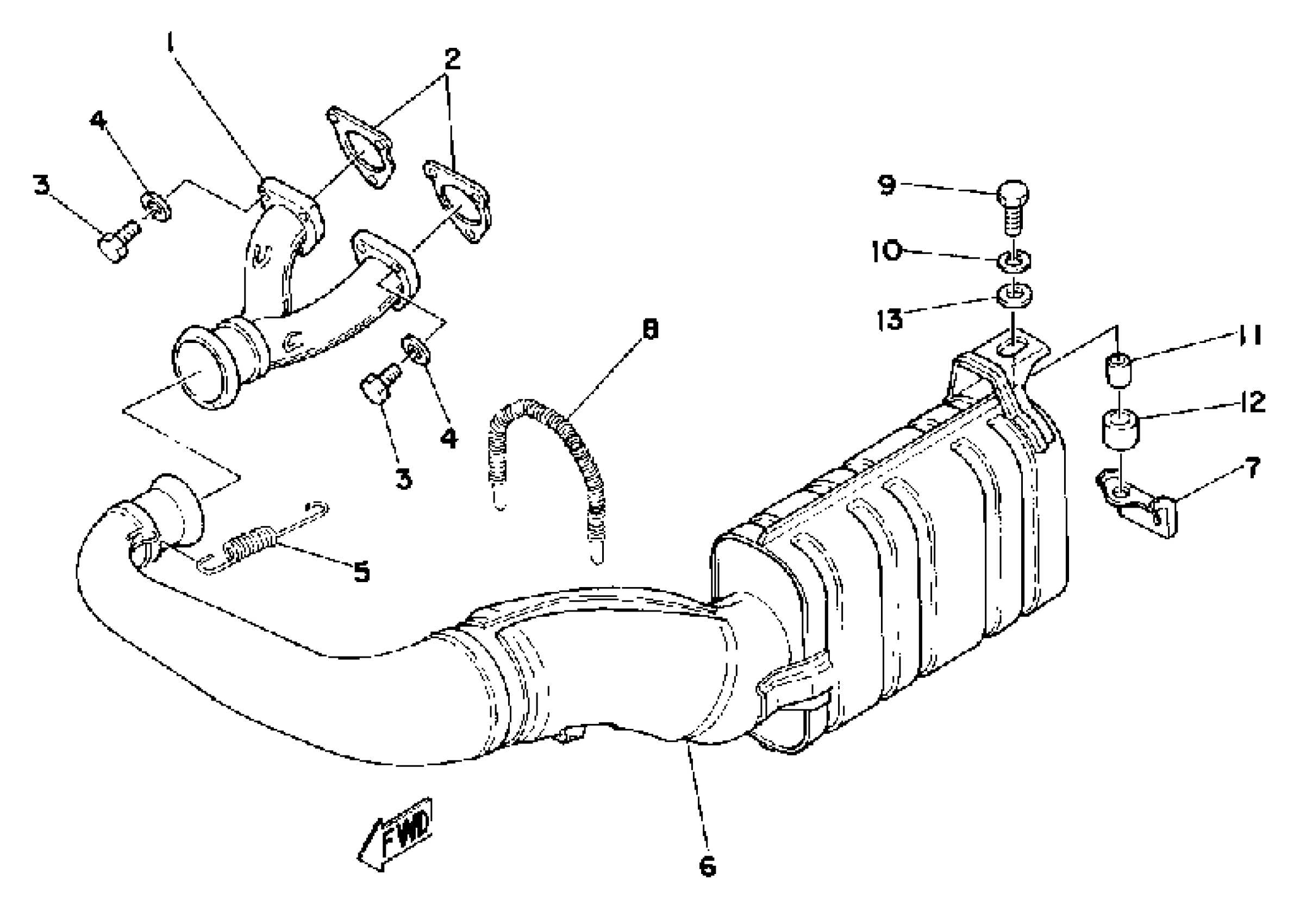

Yamaha ET340C 1979 EXHAUST Diagram

EXHAUST PIPE ASSY 1

GASKET, EXHAUST PIPE

BOLT, HEXAGON

WASHER, SPRING

SPRING, MUFFLER

MUFFLER ASSEMBLY L

STAY, MUFFLER 1

SPRING, TENSION

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

PIN, DOWEL(J38)

DAMPER, MUFFLER

WASHER, PLATE(8AT)
