ENGINE BRACKET

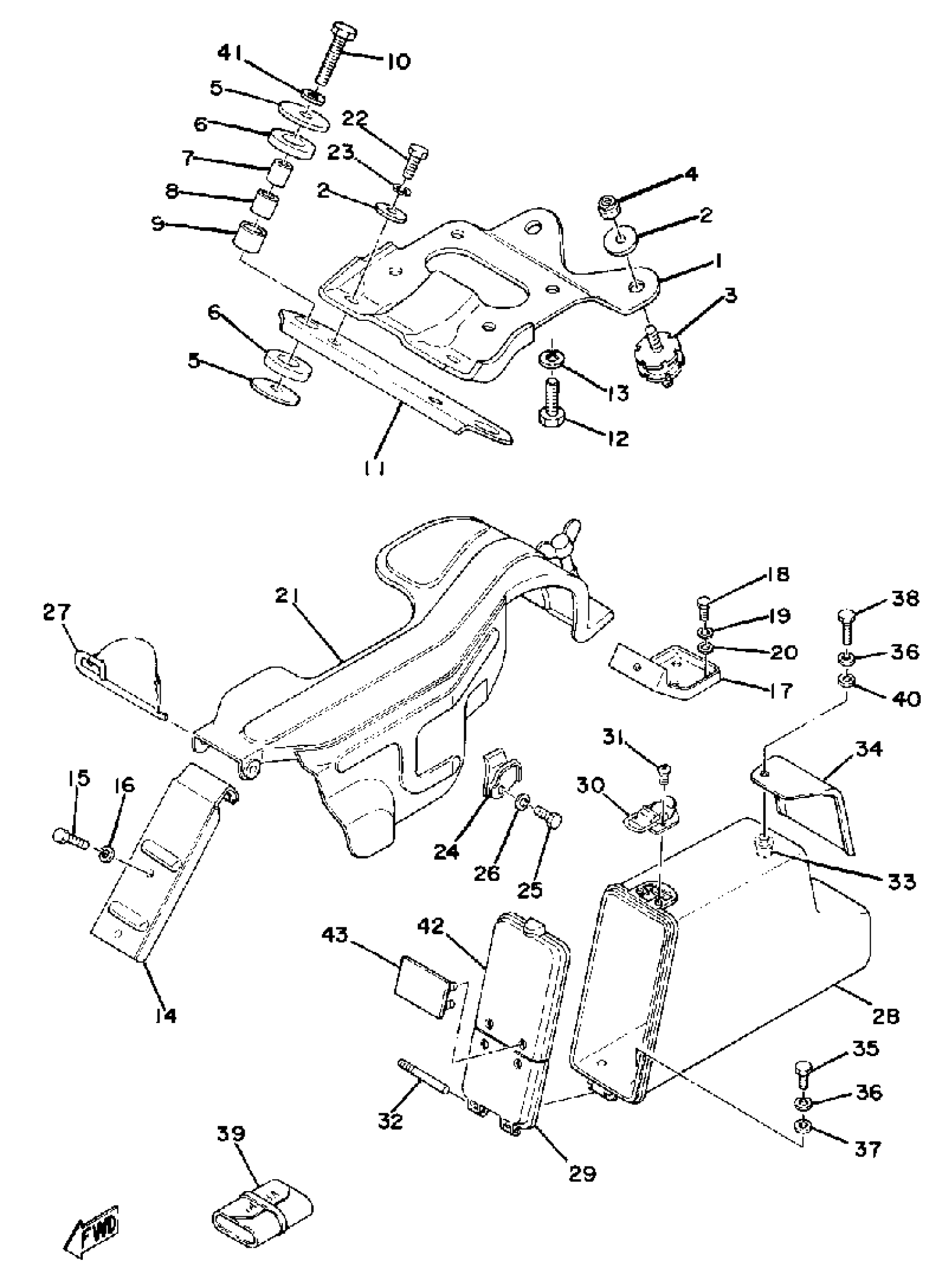

Yamaha ET340C 1979 ENGINE BRACKET Diagram
#
1
BRACKET, ENGINE 1
8G8-21411-00-00
Unavailable
2
WASHER, PLATE (856)
90201-10321-00
$8.49
3
DAMPER, ENGINE MOUNT 2
8F3-21486-00-00
$77.99
4
NUT, NYLON
95707-10300-00
$8.49
5
WASHER (888)
90201-10151-00
Unavailable
6
DAMPER, RUBBER 1
8V0-21485-00-00
Unavailable
7
COLLAR
90387-10514-00
Unavailable
8
BUSH, SPEC''L RUBBER
90385-15025-00
Unavailable
9
COLLAR
90387-21515-00
Unavailable
10
BOLT,HEXAGON(676)
97013-10050-00
Unavailable
11
BRACKET, ENGINE 2
8G8-21419-00-00
Unavailable
12
BOLT, DOME HEAD
90106-10034-00
Unavailable
13
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
13
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
14
BRACKET 1
(8G5-77315-00-00)
Unavailable
15
BOLT(62E)
97013-08012-00
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
BRACKET 2
(8F3-77316-01-00)
Unavailable
18
BOLT(3JP)
97017-06010-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
GUARD, DRIVE
8G8-77311-00-00
Unavailable
22
BOLT(6TD)
97017-10025-00
Unavailable
23
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
24
PROTECTOR, DRIVE
8F3-77323-00-00
Unavailable
25
BOLT(JA9)
90101-08691-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
SHAFT
8F3-77327-00-00
Unavailable
28
LUGGAGE BOX
(8G8-77391-00-00)
Unavailable
29
COVER, LUGGAGE BOX
(8H5-77392-00-00)
Unavailable
30
LUGGE BOX LTCH ASSEMBLY
(822-77340-00-00)
Unavailable
31
SCREW, FLAT
98707-03008-00
Unavailable
32
PIN, SPEC''L SHAPE
(90249-03128-00)
Unavailable
33
NUT, SPEC''L SHAPE
(90179-06254-00)
Unavailable
34
STAY 1
(8G8-77397-00-00)
Unavailable
35
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
WASHER, PLAIN (646)
92990-06600-00
Unavailable
38
BOLT, HEXAGON
97017-06020-00
Unavailable
39
TOOL KIT
85L-28100-01-00
Unavailable
40
WASHER, PLATE
90201-06M08-00
Unavailable
41
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
42
COVER, LUGGE BOX 2
(8H5-77377-00-00)
Unavailable
43
HINGE, LUGGAGE BOX
(8H5-77395-00-00)
Unavailable
