CARBURETOR

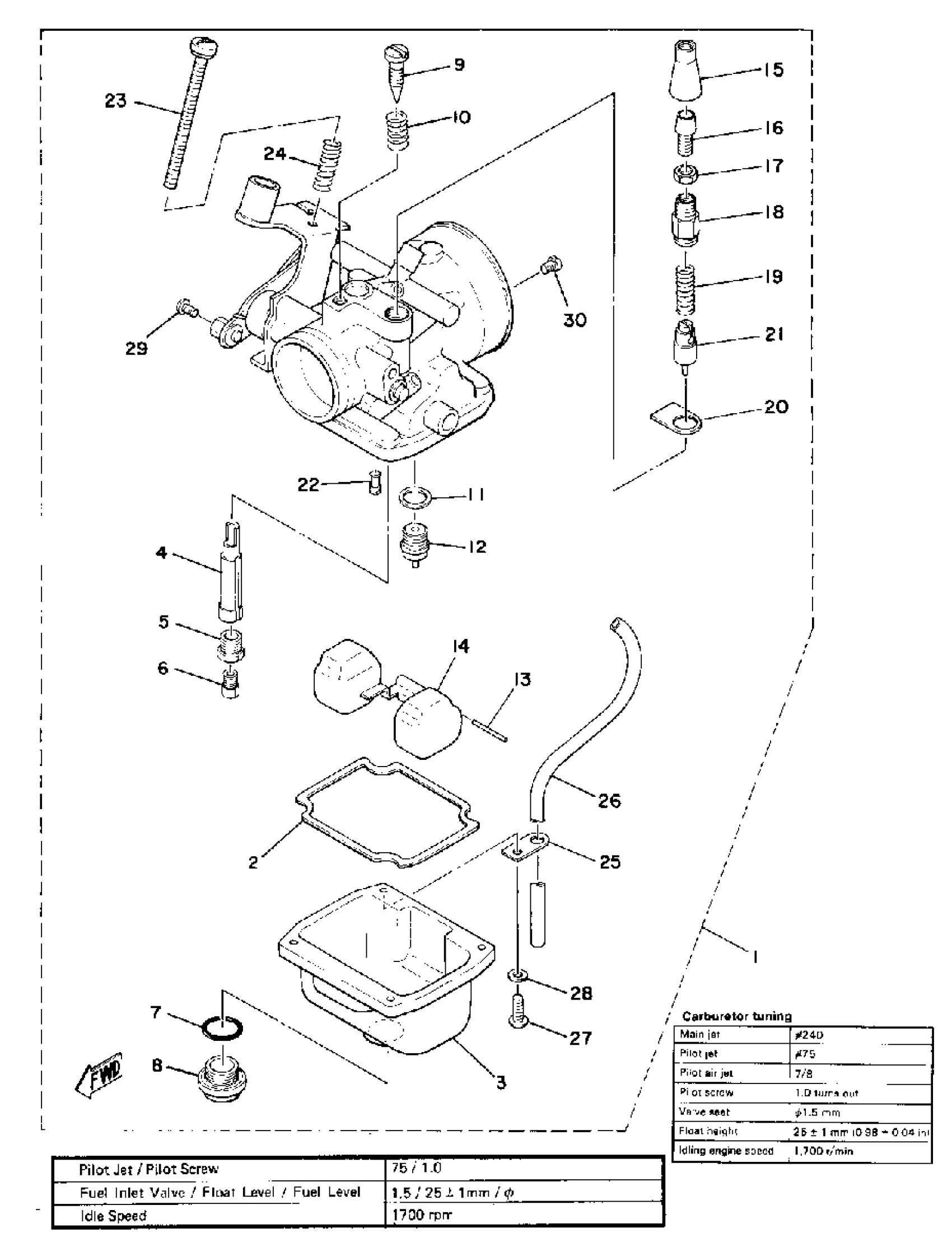

Yamaha ET340C 1979 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
(8H5-14101-00-00)
Unavailable
2
. GASKET, FLOAT CHMBR
8G8-14184-00-00
Unavailable
3
BODY, FLOAT CHMBR 1
(8H5-14181-00-00)
Unavailable
4
. NOZZLE, MAIN
8G8-14141-00-00
Unavailable
5
. COVER, MAIN JET
8G8-14152-00-00
Unavailable
6
JET, MAIN #200
137-14143-40-A1
$13.49
6
JET, MAIN #220
137-14143-44-A1
$11.99
6
JET, MAIN #240
137-14143-48-A1
$13.49
7
O-RING (541)
558-14147-00-00
$9.99
8
PLUG, SCREW
500-14115-00-00
$29.99
9
. SCREW, AIR ADJUSTING
8G8-14123-00-00
Unavailable
10
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
11
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
12
VALVE SEAT ASSY
8H5-14190-15-00
$68.99
13
PIN, FLOAT
537-14186-00-00
$7.99
14
. FLOAT
8H5-14185-00-00
Unavailable
15
CAP
8A7-14169-00-00
Unavailable
16
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
17
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
18
CAP, PLUNGER
8G8-14174-00-00
Unavailable
19
SPRING, PLUNGER
127-14135-00-00
Unavailable
20
. PLATE, STARTER LVR
8G8-14178-00-00
Unavailable
21
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
22
. JET, PILOT (#75)
193-14142-75-00
Unavailable
23
SCREW, PAN HEAD
98580-05550-00
Unavailable
24
SPRING, AIR ADJUSTING
(849-14134-00-00)
Unavailable
25
. PLATE
313-14146-00-00
Unavailable
26
HOSE
89A-14987-00-00
Unavailable
27
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
30
JET, AIR (#1.0)
239-14172-10-00
Unavailable
