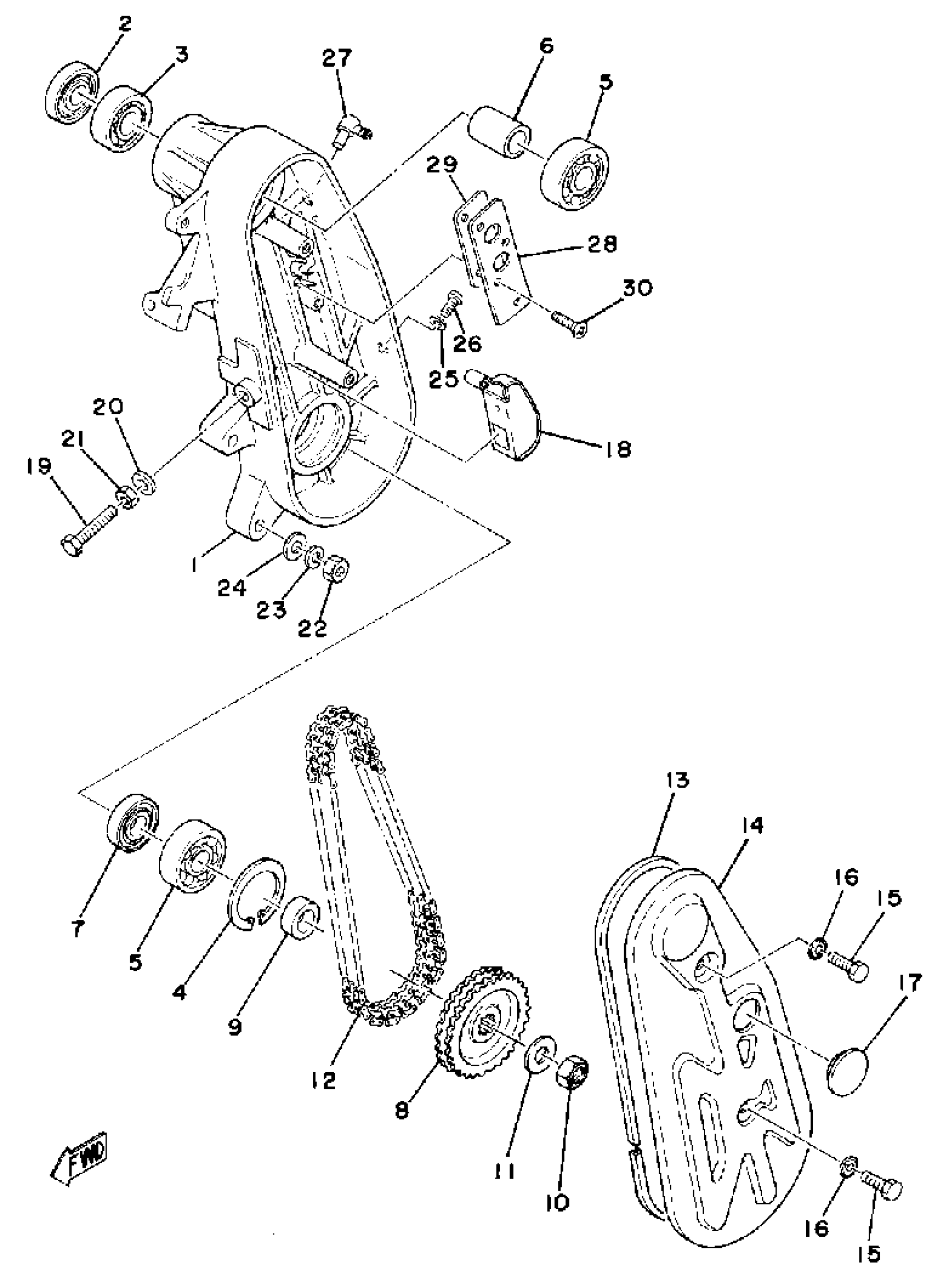

Yamaha ET340B 1978 TRACK DRIVE Diagram

#

Description
Price

1

HOUSING, CHAIN

8F3-47541-00-00

Unavailable

2

OIL SEAL (30X47X7-810)

93102-30083-00

$13.49

3

BEARING(1GJ)

93306-20458-00

$43.99

4

CIRCLIP(26H)

99009-52500-00

$12.49

5

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

6

COLLAR

90387-20580-00

Unavailable

7

OIL SEAL(4BA)

93102-20447-00

$11.49

8

SPROCKET, CHN DRVN

8G8-47548-10-00

Unavailable

8

SPROCKET, CHN DRVN

8G8-47548-20-00

Unavailable

9

COLLAR

90387-20155-00

Unavailable

10

NUT, U

95617-10100-00

$8.49

11

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

12

CHAIN (DK40K-2 60L)

(94580-17060-00)

Unavailable

13

RING, HOUSING (97302-08020)

8F3-47558-00-00

Unavailable

14

CAP, HOUSING

8F3-47543-00-00

Unavailable

15

BOLT, HEXAGON

97013-08020-00

Unavailable

16

WASHER (821)

90210-08002-00

Unavailable

17

CAP

148-22315-00-00

Unavailable

18

TENSIONER

8G8-47611-00-00

Unavailable

19

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

20

WASHER SEAL 256111730200

90210-10004-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

WASHER, PLAIN

92990-08200-00

Unavailable

25

GASKET 838153840000

90430-06016-00

Unavailable

26

SCREW PAN HEAD

98580-06010-00

Unavailable

27

BREATHER

583-15371-00-00

Unavailable

28

PLATE

8G8-47591-00-00

Unavailable

29

GASKET

85T-47592-00-00

Unavailable

30

SCREW, FLAT

98707-05016-00

Unavailable
