1978 Yamaha ET340B Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

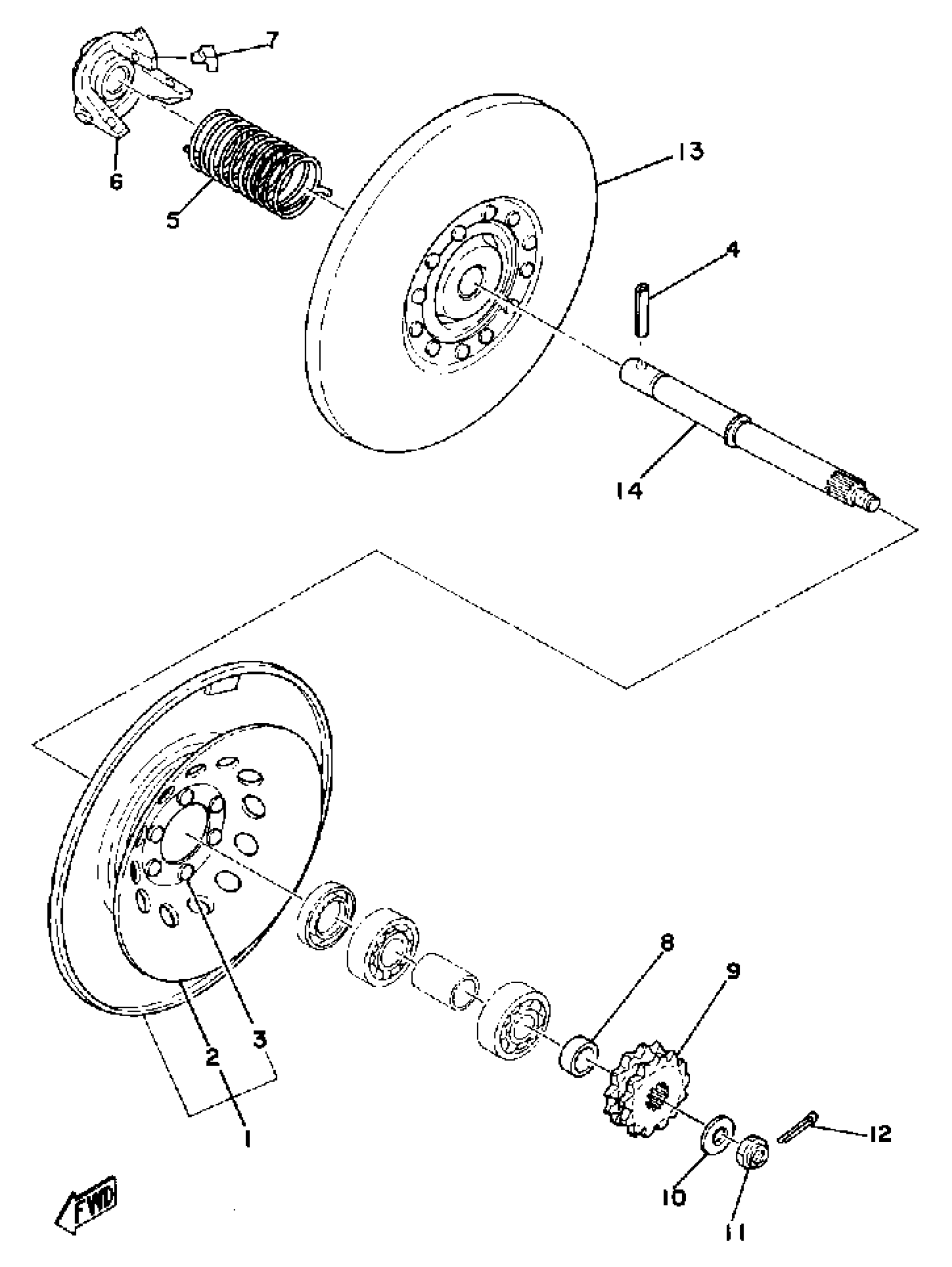

1978 Yamaha ET340B Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHV

(8G8-17660-00-00)

1
Out of stock

2

. DISC, BRAKE

8F3-25711-00-00

1
Out of stock

3

RIVET

90263-05023-00

1
Out of stock

4

PIN, SPRING TYPE

90254-08001-00

1
Out of stock

5

1

$13.51

In stock

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

1
Out of stock

7

SHOE, RAMP

801-17688-10-00

1

$4.15

In stock

8

COLLAR

90387-19649-00

1
Out of stock

9

SPRKT,CHAIN DR

806-17682-30-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

1
Out of stock

10

WASHER, PLATE (35T)

90201-122H1-00

1

$6.82

In stock

11

NUT, SELF LOCKING (23X)

90185-12119-00

1
Out of stock

12

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

13

SEC SLIDING SHEAVE

85T-17670-00-00

1
Out of stock

14

SHAFT, SECONDARY

8G8-17681-02-00

1
Out of stock
