1978 Yamaha ET340B Front Axle Diagram

← All diagrams

Find the part on the Front Axle diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

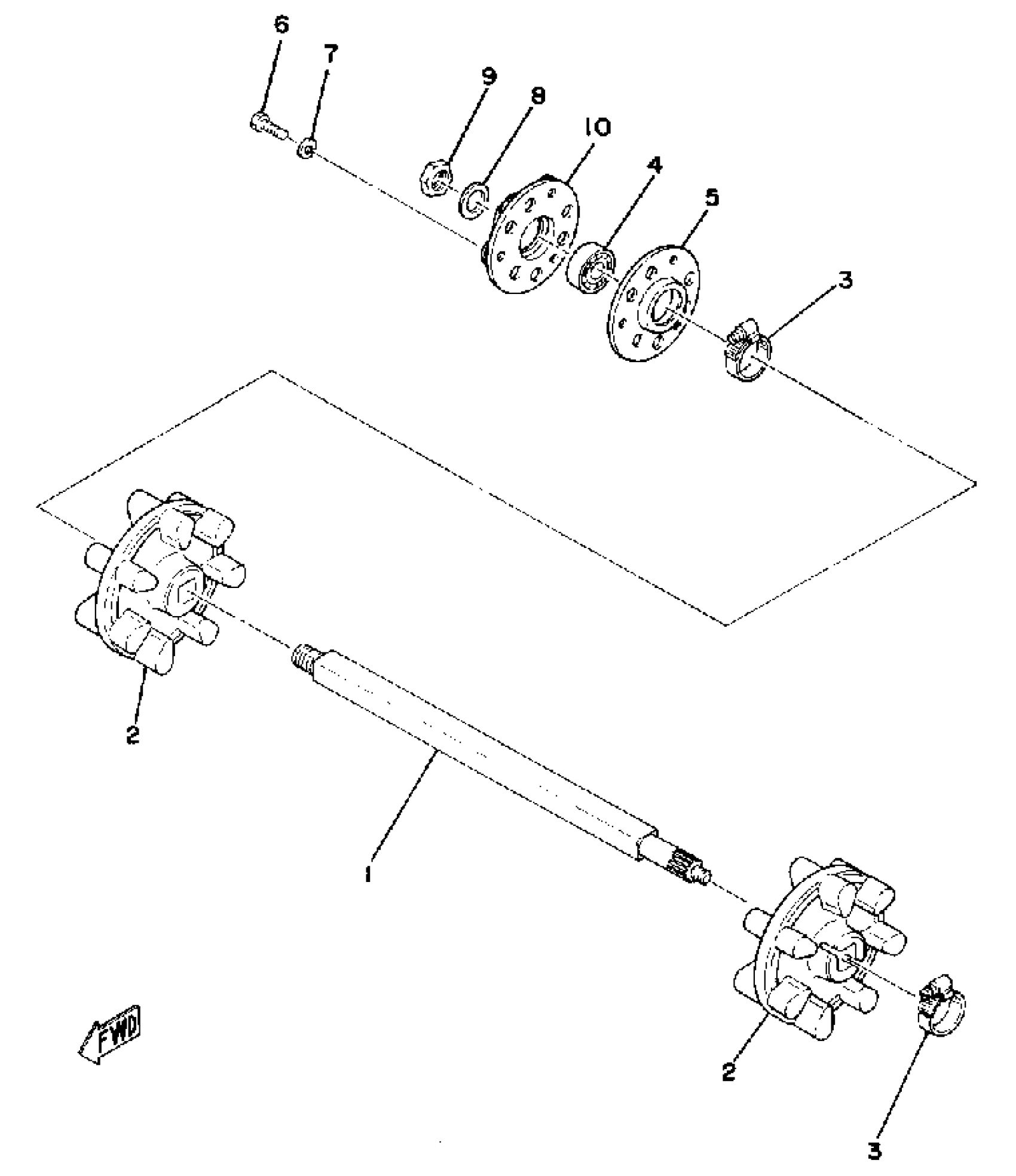

1978 Yamaha ET340B Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8G8-W4751-00-00

1
Out of stock

2

WHEEL, SPROCKET 1

8F3-47531-00-00

1
Out of stock

3

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

4

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

5

HOUSING, FRONT AXLE

8F3-47551-00-00

—

$18.22

In stock

6

BOLT, HEXAGON

97017-08016-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

WASHER (853)

90208-20008-00

1
Out of stock

9

NUT, HEXAGON (8F3)

90170-20211-00

1

$3.74

In stock

10

HOUSING, FRONT AXLE

8G5-47551-01-00

1
Out of stock
