Description

Price

1

BOLT

90101-13406-00

Unavailable

2

SPACER 1

8J0-17654-00-00

Unavailable

3

PRI. SHEAVE CAP

8E7-W1762-00-00

Unavailable

4

SEAT, SPRING

8E7-17644-02-00

Unavailable

5

BOLT(JF7)

97080-06030-00

$5.49

6

WASHER, TOOTH

92901-06400-00

Unavailable

7

. BUSH, SPEC''L SHAPE

90389-34019-00

Unavailable

8

COLLAR

90387-28721-00

Unavailable

9

SPRING, COMPRESSION

90501-50500-00

Unavailable

10

SPIDER

8J0-17627-00-00

Unavailable

11

SLIDER

8F2-17653-00-00

$13.49

12

COLLAR (8A7)

90387-06560-00

$7.49

13

PIN, W/HOLE (8G6)

90240-06062-00

$10.49

14

WASHER (8J0)

90202-06113-00

$4.72

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER

91490-25020-00

Unavailable

17

SHEAVE, PRI SLIDING

8E7-17621-01-00

Unavailable

18

WEIGHT 1

8G8-17632-00-00

Unavailable

19

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

20

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

21

WASHER, PLATE(8E7)

90201-07641-00

Unavailable

22

BUSH, SPEC''L SHAPE

90389-41018-00

Unavailable

23

PRI FIXED SHEAVE

8F2-17610-00-00

Unavailable

24

V-BELT

820-17641-01-00

Unavailable

25

WASHER, CONICAL SPR

90208-13023-00

Unavailable

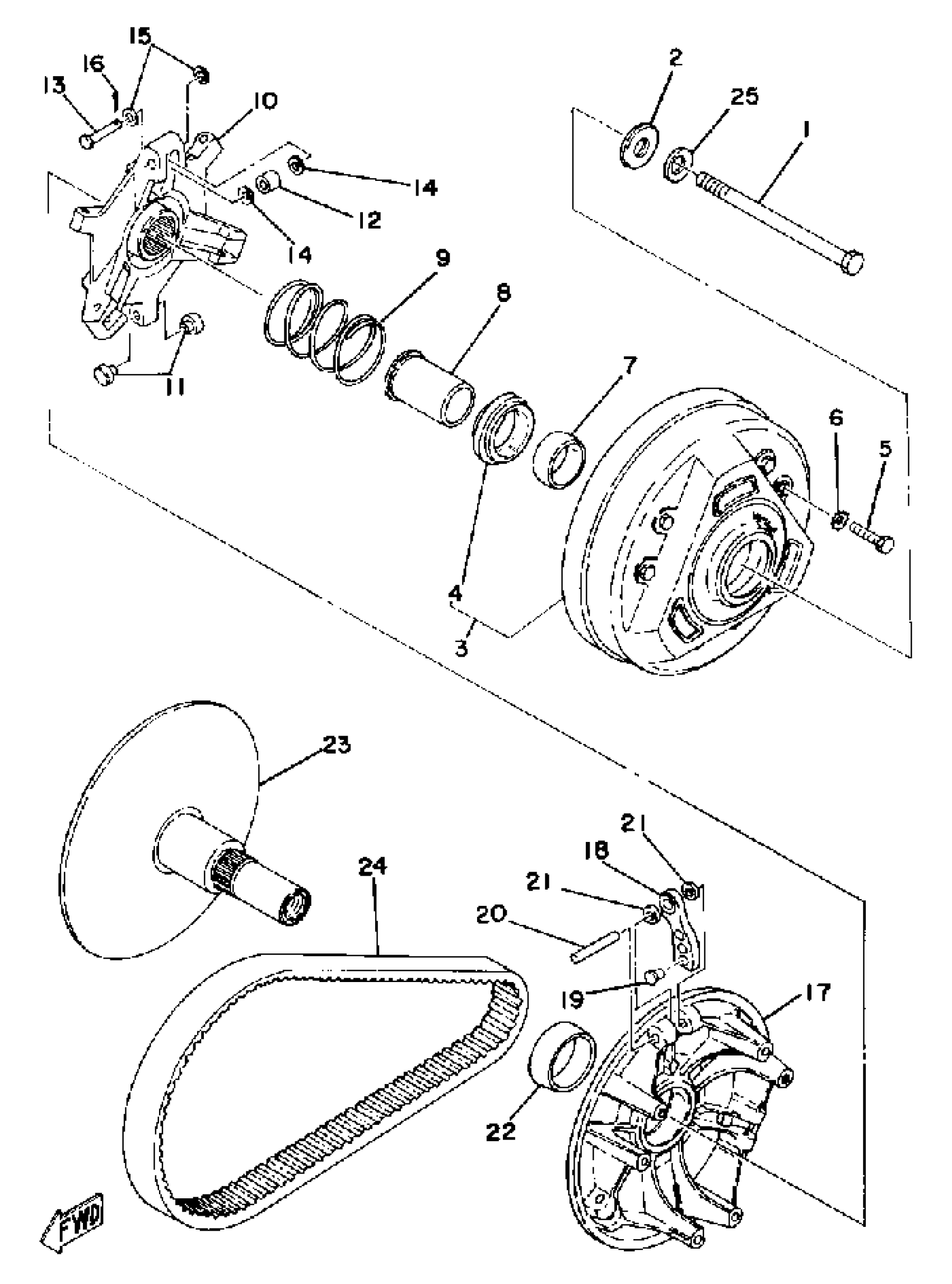

Yamaha ET340B 1978 PRIMARY SHEAVE Diagram

BOLT

SPACER 1

PRI. SHEAVE CAP

SEAT, SPRING

BOLT(JF7)

WASHER, TOOTH

. BUSH, SPEC''L SHAPE

COLLAR

SPRING, COMPRESSION

SPIDER

SLIDER

COLLAR (8A7)

PIN, W/HOLE (8G6)

WASHER (8J0)

YBS66-6 WASHER, PLAIN

PIN, COTTER

SHEAVE, PRI SLIDING

WEIGHT 1

RIVET, COUNTER SUNK (8G8)

PIN, DOWEL (8V8)

WASHER, PLATE(8E7)

BUSH, SPEC''L SHAPE

PRI FIXED SHEAVE

V-BELT

WASHER, CONICAL SPR
