1978 Yamaha ET340B Fuel Tank Diagram

← All diagrams

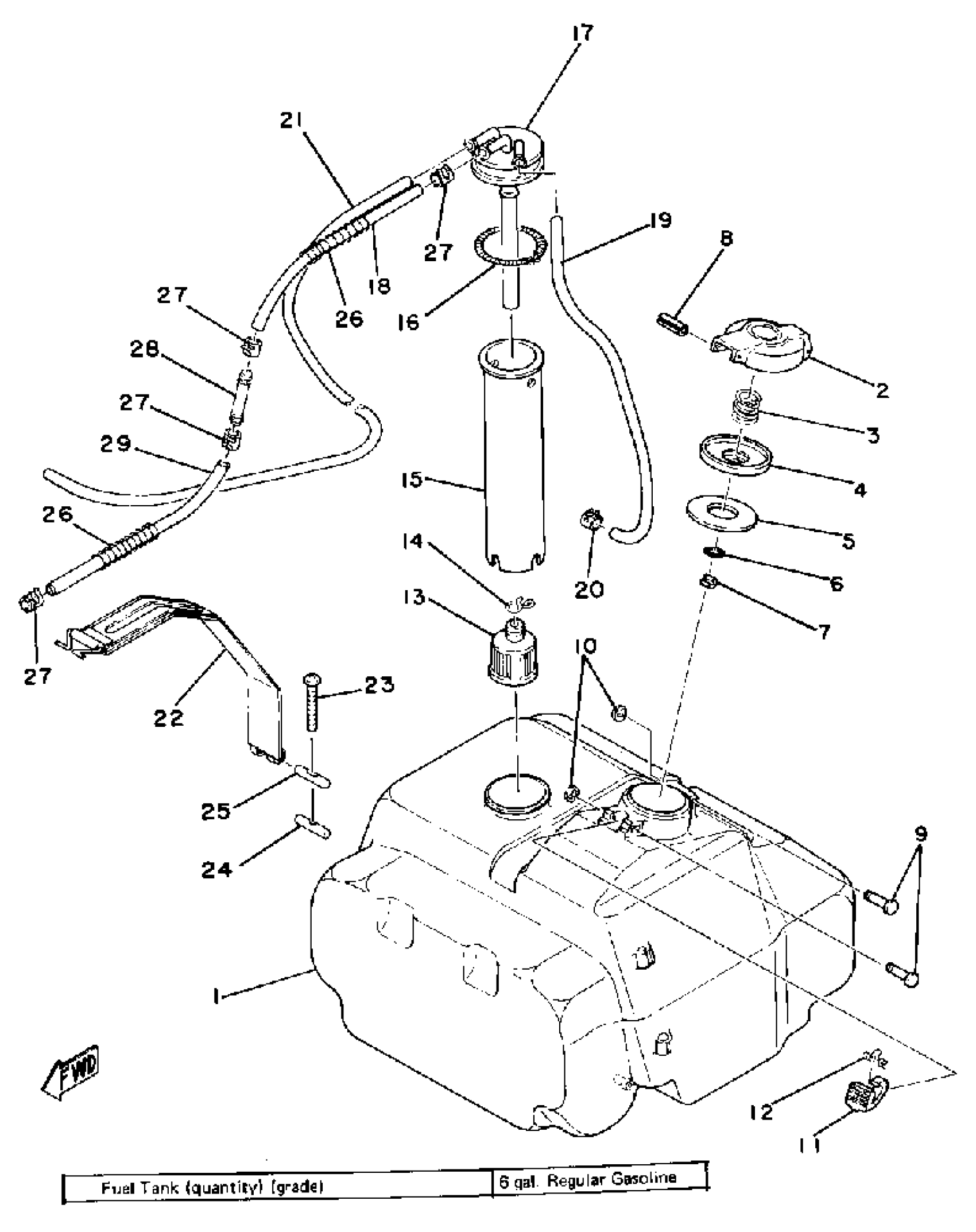

Find the part on the Fuel Tank diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha ET340B Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G8-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

10

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

11

HOOK

83M-24628-00-00

1

$19.68

In stock

12

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

13

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

14

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

15

PIPE, SUCTION 2

(8G8-24336-00-00)

1
Out of stock

16

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

17

PIPE, SUCTION 1

8G8-24335-00-00

1
Out of stock

18

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

19

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

20

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

21

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

22

BAND, TNK FITTING 1

(883-24173-00-00)

1
Out of stock

23

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

24

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

25

CLAMP

806-24135-00-00

—

$3.20

In stock

26

PROTECTOR, PIPE

8F3-24326-00-00

1
Out of stock

27

CLIP

90467-11028-00

1

$5.14

In stock

28

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

29

HOSE

(90446-11027-00)

1
Out of stock
