1978 Yamaha ET340B Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

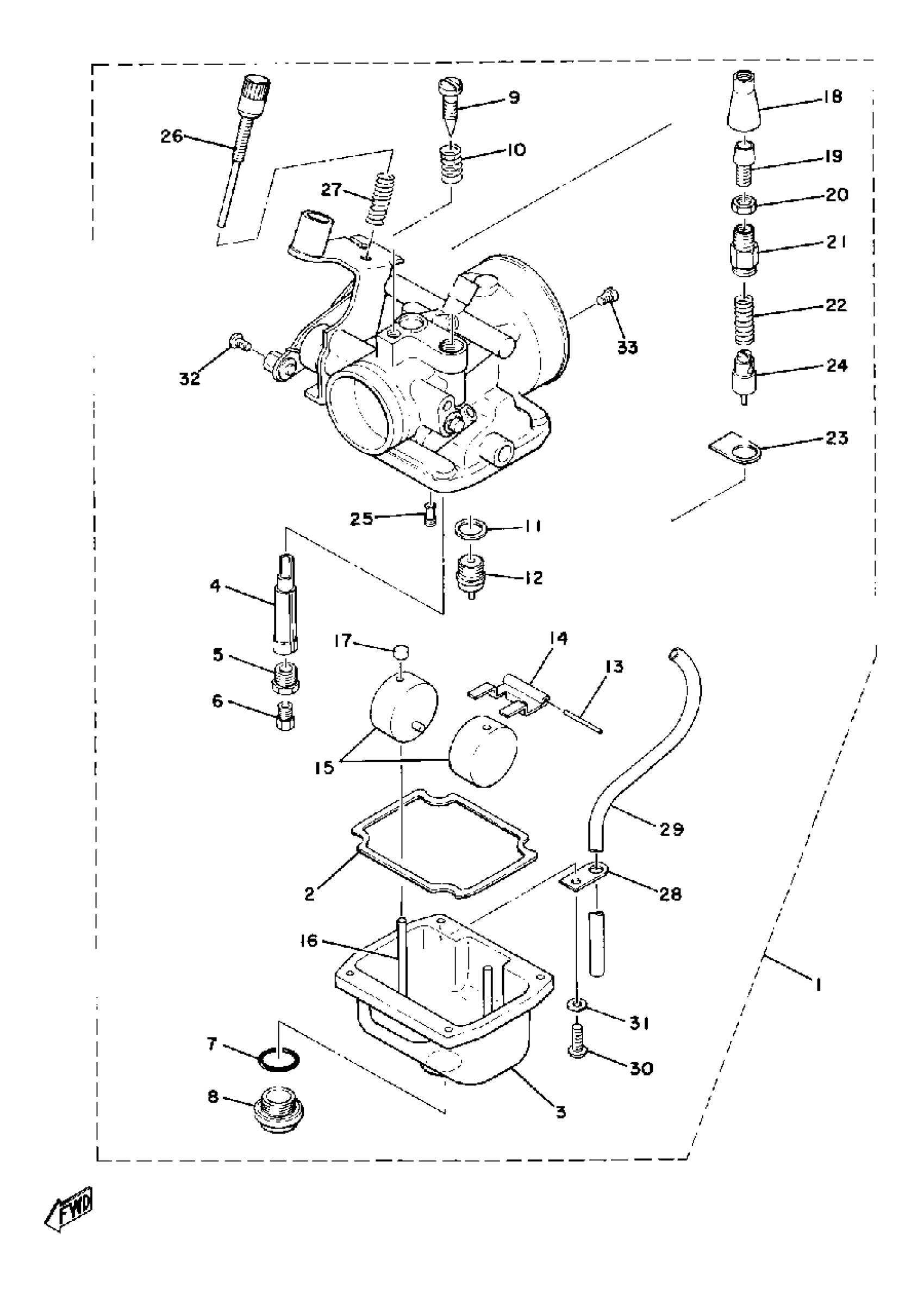

1978 Yamaha ET340B Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8G8-14101-00-00)

1
Out of stock

2

. GASKET, FLOAT CHMBR

8G8-14184-00-00

1
Out of stock

3

BODY, FLOAT CHMBR 1

(8G8-14181-00-00)

1
Out of stock

4

. NOZZLE, MAIN

8G8-14141-00-00

1
Out of stock

5

. COVER, MAIN JET

8G8-14152-00-00

1
Out of stock

6

JET, MAIN #200

137-14143-40-A1

1
Out of stock

6

JET, MAIN #210

137-14143-42-A1

—

$10.62

In stock

6

JET, MAIN #220

137-14143-44-A1

1
Out of stock

7

O-RING (541)

558-14147-00-00

1
Out of stock

8

PLUG, SCREW

500-14115-00-00

1

$25.29

In stock

9

. SCREW, AIR ADJUSTING

8G8-14123-00-00

1
Out of stock

10

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

11

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

12

VALVE SEAT ASSY (1.5)

500-14190-15-00

1

$39.59

In stock

13

PIN, FLOAT

537-14186-00-00

1
Out of stock

14

ARM, FLOAT

(8F2-14187-00-00)

1
Out of stock

15

. FLOAT

214-14185-00-00

1
Out of stock

16

PIN, FLOAT

(8G8-14186-00-00)

1
Out of stock

17

CAP

214-14118-00-00

—

$6.72

In stock

18

CAP

8A7-14169-00-00

—

$15.80

In stock

19

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

20

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

21

CAP, PLUNGER

8G8-14174-00-00

—

$23.77

In stock

22

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

23

. PLATE, STARTER LVR

8G8-14178-00-00

1
Out of stock

24

PLUNGER, STARTER

8G8-14171-00-00

—

$26.92

In stock

25

. JET, PILOT (#75)

193-14142-75-00

1
Out of stock

26

. SCREW, THROTTLE

8G8-14122-00-00

1
Out of stock

27

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

28

. PLATE

313-14146-00-00

1
Out of stock

29

HOSE

89A-14987-00-00

—

$12.62

In stock

30

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

33

JET, AIR (#1.0)

239-14172-10-00

—

$9.08

In stock
