Description

Price

1

FRAME

(8G8-21910-00-00)

Unavailable

2

FLAP

8F2-77595-00-00

Unavailable

3

RIVET, BLIND (8R6)

90267-48086-00

$4.14

4

EMBLEM 4

(8G8-77354-00-00)

Unavailable

5

REFLECTOR, REAR 1

449-85131-02-00

$30.99

6

WASHER, EX.TOOTH

92990-05400-00

Unavailable

7

NUT, NYLON

95707-05300-00

$4.24

8

EMBLEM 1

(8G8-77351-00-00)

Unavailable

9

EMBLEM 2

(8G8-77352-00-00)

Unavailable

10

RNFCMNT, FRAME 1

8G8-21986-00-00

Unavailable

11

SCREW, BIND (705)

98980-06016-00

$8.49

12

WASHER, PLATE

90201-06M08-00

Unavailable

13

NUT, NYLON

95707-06300-00

$3.50

14

SHIELD, HEAT

8F3-23892-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

SHIELD, NOISE

8G8-2199F-00-00

Unavailable

19

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

20

BUSH, RUBBER 1

8G8-77515-00-00

Unavailable

21

WASHER, PLATE

90201-04027-00

Unavailable

22

RIVET (856)

90267-48014-00

Unavailable

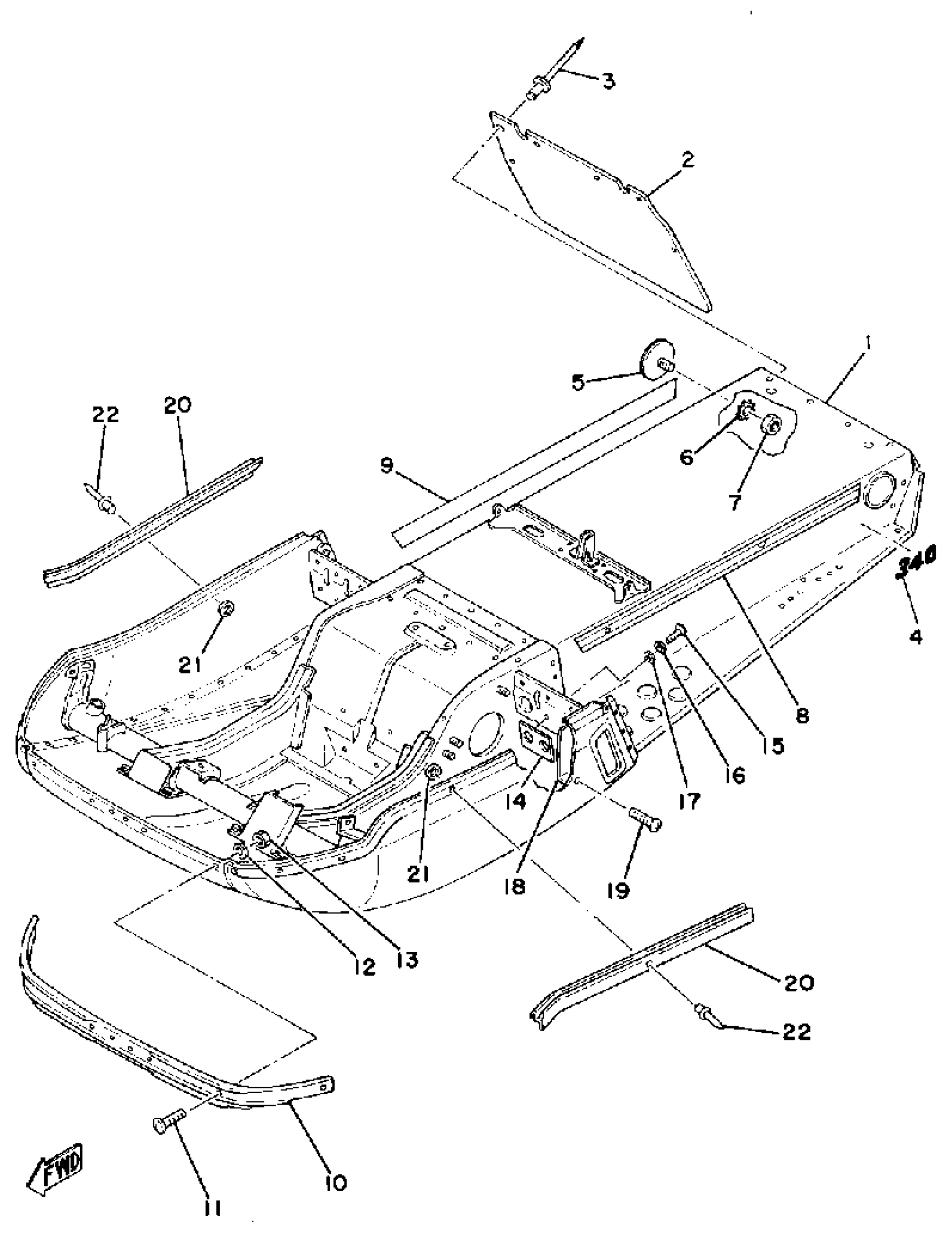

Yamaha ET340B 1978 FRAME Diagram

FRAME

FLAP

RIVET, BLIND (8R6)

EMBLEM 4

REFLECTOR, REAR 1

WASHER, EX.TOOTH

NUT, NYLON

EMBLEM 1

EMBLEM 2

RNFCMNT, FRAME 1

SCREW, BIND (705)

WASHER, PLATE

NUT, NYLON

SHIELD, HEAT

SCREW, PAN HEAD(62J)

WASHER, SPRING

WASHER, PLAIN (646)

SHIELD, NOISE

SCREW, BINDING(3XV)

BUSH, RUBBER 1

WASHER, PLATE

RIVET (856)
