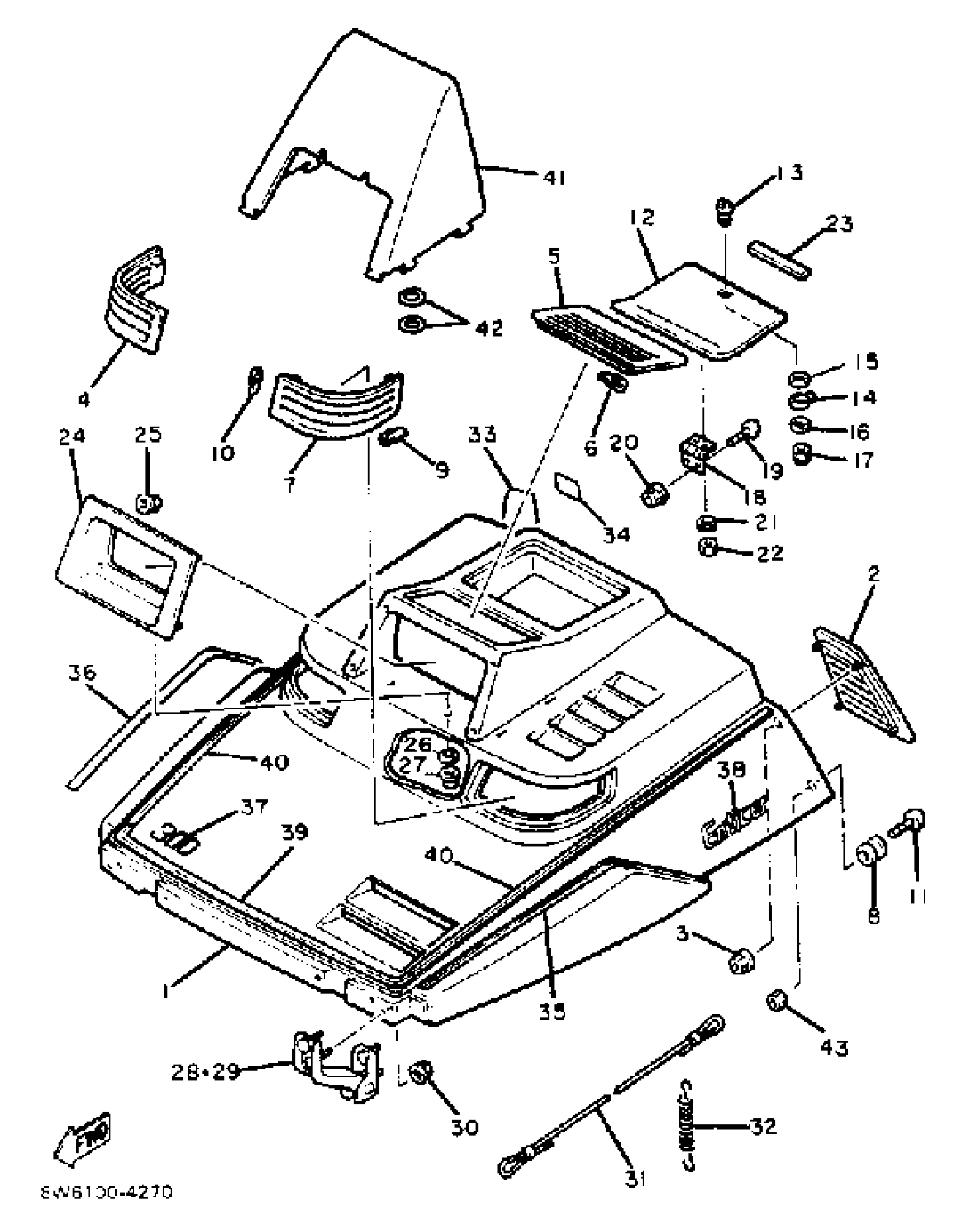

Yamaha ET300H (ENTICER 300) 1984 SHROUD Diagram
#
1
SHROUD ASSEMBLY
8W6-W7711-00-00
Unavailable
2
LOUVER 1
(8W6-77131-00-00)
Unavailable
3
NUT, FLANGE(3GM)
95707-05500-00
$8.49
4
LOUVER 3
8W6-77133-00-00
Unavailable
5
LOUVER 4
8W6-77134-01-00
Unavailable
6
CLIP
90468-05094-00
Unavailable
7
LOUVER 5
8W6-77109-00-00
Unavailable
8
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
9
CLIP
90468-05137-00
Unavailable
10
CLIP
90468-05138-00
Unavailable
11
SCREW, BINDING
98907-06030-00
$8.49
12
COVER, LUGGAGE BOX
(8W6-77392-01-00)
Unavailable
13
KNOB
8L9-77324-00-00
Unavailable
14
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
15
WASHER, PLAIN(735)
90201-10119-00
Unavailable
16
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
17
NUT, NYLON
95707-05300-00
Unavailable
18
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
19
SCREW, PAN HEAD
90157-05M19-00
Unavailable
20
NUT, FLANGE(3GM)
95707-05500-00
$8.49
21
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
22
NUT, CAP
95307-05800-00
Unavailable
23
DAMPER 2
8W6-77374-00-00
Unavailable
24
BODY, HEADLIGHT
8W6-84311-00-00
Unavailable
25
NUT, FLANGE(3GM)
95707-05500-00
$8.49
26
WASHER, PLATE
90201-04027-00
Unavailable
27
NUT, SPRING (1L9)
90183-04012-00
Unavailable
28
HINGE ASSEMBLY
8W6-77140-00-00
Unavailable
29
HINGE ASSEMBLY 2
8W6-7714A-00-00
Unavailable
30
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
31
STOPPER,SHROUD
89X-77118-00-00
Unavailable
32
CLAMP,ROD
838-77159-00-00
Unavailable
33
LABEL, WARNING
8W6-77458-00-00
Unavailable
34
INDICATOR 3
8A1-77743-00-00
Unavailable
35
ORNAMENT 1
8Y2-77163-00-00
Unavailable
36
ORNAMENT 2
8Y2-77164-00-00
Unavailable
37
*EMBLEM 1
8W6-77351-00-00
Unavailable
38
EMBLEM 2
8W6-77352-00-00
Unavailable
39
STRIPE 1
(8W6-77281-00-00)
Unavailable
40
*STRIPE 2
8W6-77282-00-00
Unavailable
41
WINDSHIELD,ET340
8X1-77210-10-XX
Unavailable
42
UNAVAILABLE IN PRICE BOOK
8W4-77223-00-00
Unavailable
43
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
