Description

Price

1

GUARD, DRIVE

8W6-77311-00-00

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PROTECTOR, DRIVE

8F3-77323-00-00

Unavailable

4

BOLT, HEXAGON

97017-08016-00

$8.49

5

WASHER(JN5)

92907-08100-00

$8.49

6

BOX, TOOL

8W6-77381-00-00

Unavailable

7

LID, TOOL BOX

8W6-77382-00-00

Unavailable

8

RIVET, BLIND (8R6)

90267-48086-00

$4.14

9

SCREW, BINDING

98907-05010-00

$8.49

10

NUT, FLANGE(3GM)

95707-05500-00

$8.49

11

SCREW, BINDING

98907-06014-00

$7.99

12

WASHER, PLATE

90201-06380-00

$0.60

13

WASHER, SPRING

92907-06100-00

$4.25

14

NUT(4MY)

95307-06800-00

$3.82

15

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

Unavailable

16

TOOL KIT

85L-28100-01-00

Unavailable

17

HOOK 1

8K4-77386-00-00

Unavailable

18

WASHER, PLATE

90201-04027-00

Unavailable

19

PROTECTOR

8W6-77373-00-00

Unavailable

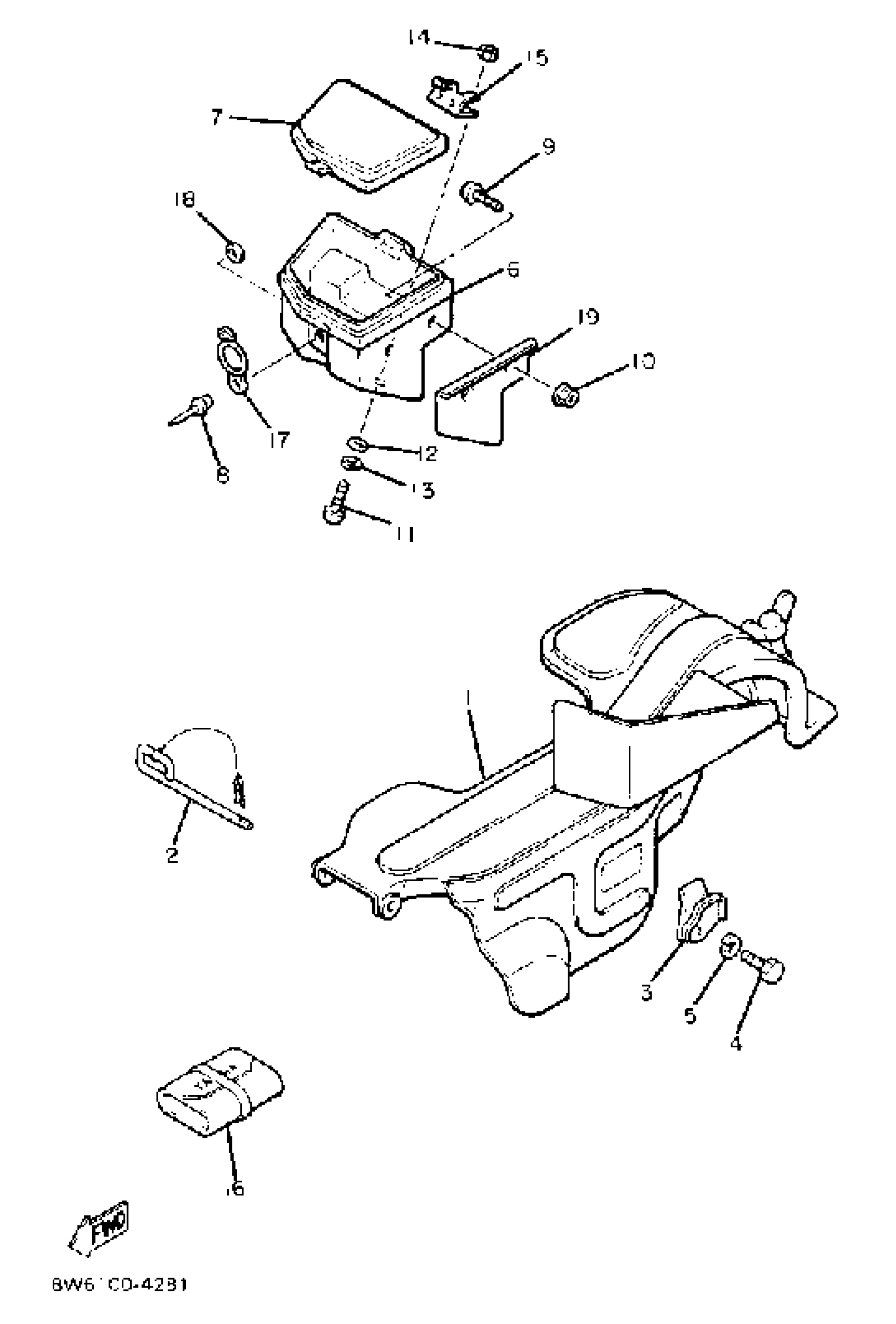

Yamaha ET300H (ENTICER 300) 1984 GUARD - LUGGAGE BOX Diagram

GUARD, DRIVE

SHAFT

PROTECTOR, DRIVE

BOLT, HEXAGON

WASHER(JN5)

BOX, TOOL

LID, TOOL BOX

RIVET, BLIND (8R6)

SCREW, BINDING

NUT, FLANGE(3GM)

SCREW, BINDING

WASHER, PLATE

WASHER, SPRING

NUT(4MY)

BRACKET, SPARK PLUGPLUG

TOOL KIT

HOOK 1

WASHER, PLATE

PROTECTOR
