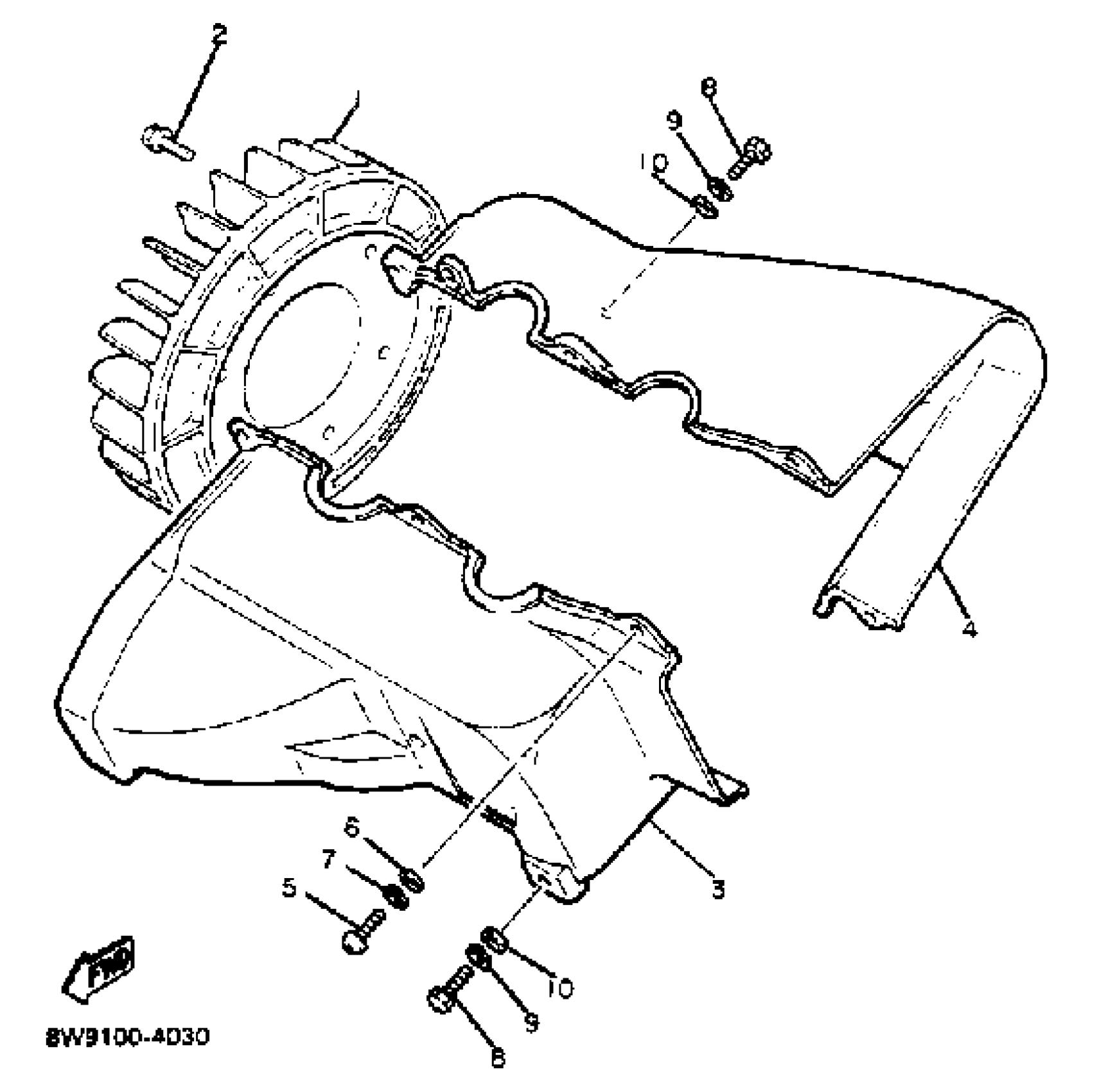

Yamaha ET300H (ENTICER 300) 1984 AIR SHROUD - FAN Diagram

FAN

8G8-12611-01-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

AIR SHROUD, CYLINDER 1CYLINDER 1

8W6-12651-00-00

Unavailable

AIR SHROUD, CYLINDER 2CYLINDER 2

8W6-12652-00-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER(6TA)

92907-06600-00

$2.72

WASHER, SPRING

92907-06100-00

$4.25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLATE 8221447500

90201-06057-00

$5.60
