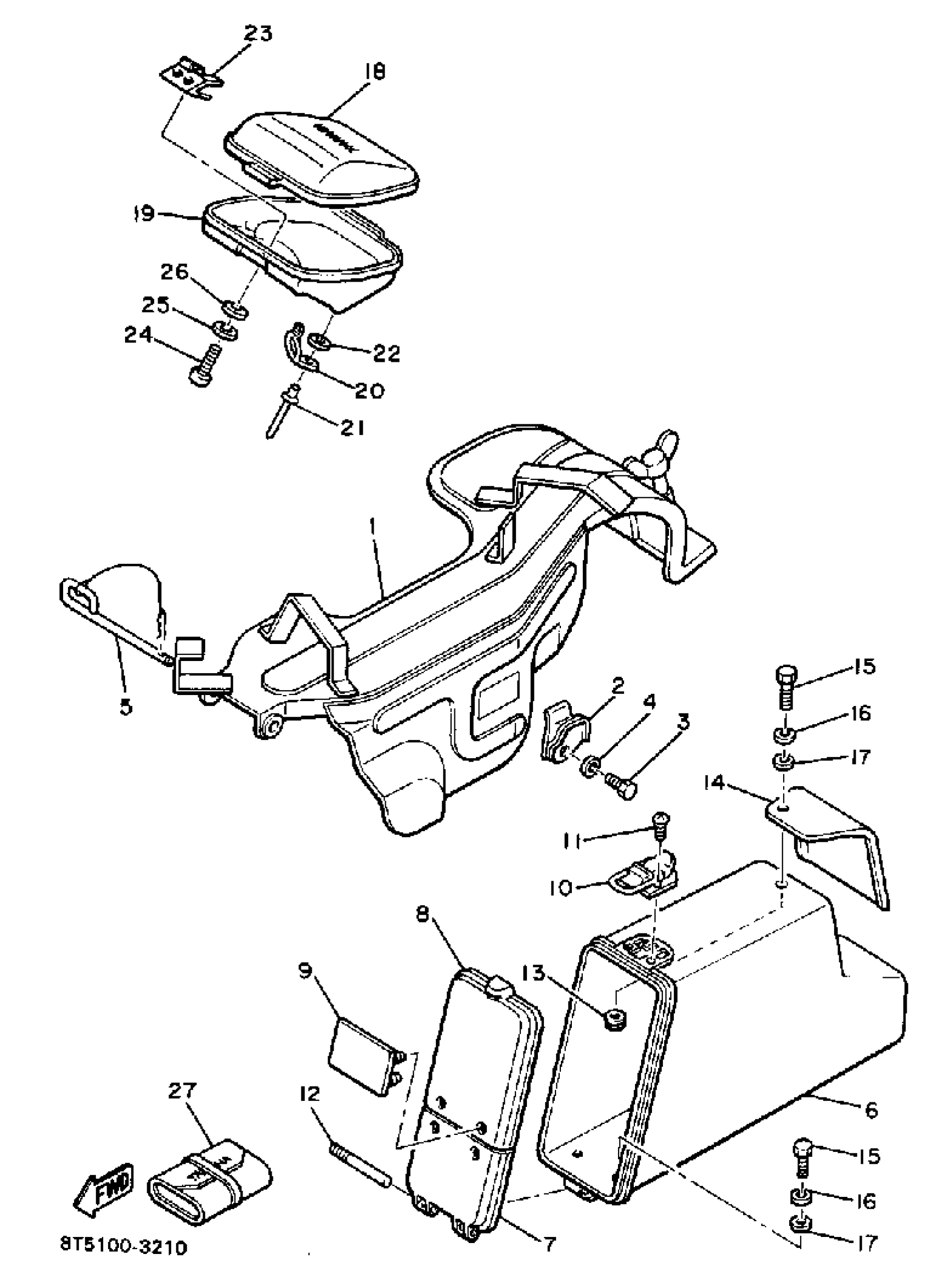

Yamaha ET300G 1983 GUARD - LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8H9-77311-00-00

Unavailable

2

PROTECTOR, DRIVE

8F3-77323-00-00

Unavailable

3

BOLT, HEXAGON

97017-08016-00

$8.49

4

WASHER(JN5)

92907-08100-00

$8.49

5

SHAFT

8F3-77327-00-00

Unavailable

6

LUGGAGE BOX

(8G8-77391-00-00)

Unavailable

7

COVER, LUGGAGE BOX

(8H5-77392-00-00)

Unavailable

8

COVER, LUGGE BOX 2

(8H5-77377-00-00)

Unavailable

9

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

Unavailable

10

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

Unavailable

11

SCREW, FLAT

98707-03008-00

$7.49

12

PIN, SPEC''L SHAPE

(90249-03128-00)

Unavailable

13

NUT, SPEC''L SHAPE

(90179-06254-00)

Unavailable

14

STAY 1

(8G8-77397-00-00)

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE

90201-06M08-00

Unavailable

18

LID

1T4-2177E-00-00

Unavailable

19

BOX

1T4-2177A-00-00

Unavailable

20

HOOK 1

8K4-77386-00-00

Unavailable

21

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

22

WASHER, PLATE

90201-04027-00

Unavailable

23

BRACKET, SPARK PLUG

8T5-77376-00-00

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

27

TOOL KIT

85L-28100-01-00

Unavailable
