TRACK SUSPENSION 2

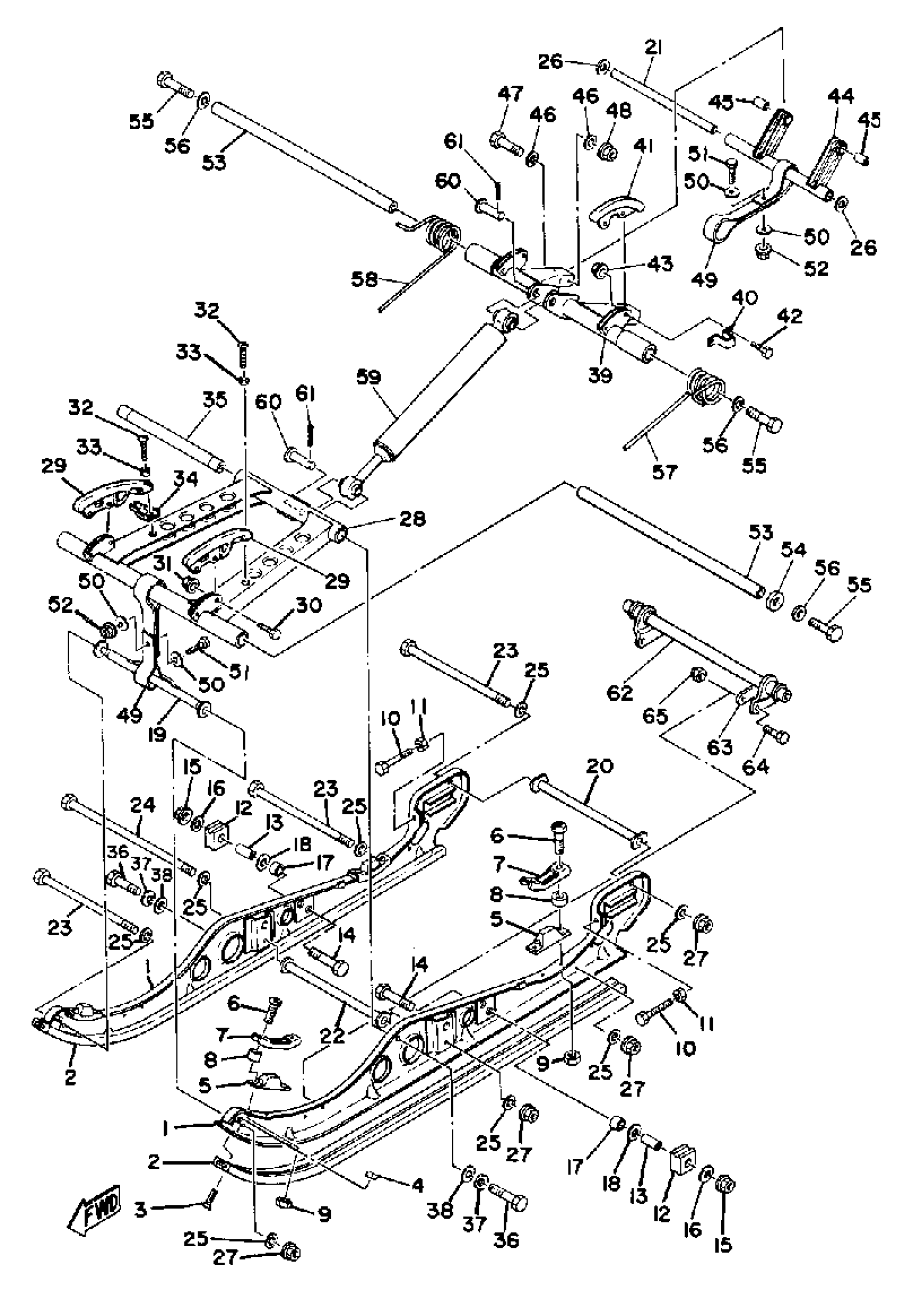

1981 Yamaha ET300E Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 1981 Yamaha ET300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME, SLIDING 1
8G5-47411-00-00
2
UNAVAILABLE IN PRICE BOOK (8F3-47421-10)
8N4-47421-10-00
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
4
NUT, SQUARE
90173-06006-00
5
DAMPER 1
8F3-47456-00-00
7
PLATE, DAMPER
8F3-47458-00-00
10
BOLT, HEXAGON (899 TRACK)
90101-10293-00
17
COLLAR
90387-12105-00
19
BRACKET 1
8G5-47415-00-00
20
COLLAR
90387-08581-00
21
COLLAR
90387-08632-00
22
COLLAR
90387-08583-00
23
BOLT, HEXAGON
97027-08250-00
24
BOLT,HEXAGON
97027-08260-00
26
WASHER (1T1)
90201-08649-00
28
ARM, PIVOT 1
8H9-47331-00-00
34
PLATE, GUIDE
8H9-47467-00-00
35
SHAFT 3
8G5-47485-00-00
39
ARM, PIVOT 2
8F3-47332-01-00
40
BRACKET, ARM PIVOT
(8F3-47349-01-00)
44
BRACKET 3
8G5-47417-00-00
46
WASHER (1T1)
90201-08649-00
47
BOLT
97013-08045-00
49
STOPPER 1
8F3-47495-00-00
54
SPACER
8U7-47341-00-00
57
SPRING, TORSION
90508-10337-00
58
SPRING, TORSION
90508-10338-00
59
SHOCK ABSORBER
8H9-47480-00-00
62
BAR, SUSPENSION
8N4-47451-00-00
63
SPACER
8G5-47466-00-00
