1981 Yamaha ET300E Track Suspension 1 Diagram

← All diagrams

Find the part on the Track Suspension 1 diagram for your 1981 Yamaha ET300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

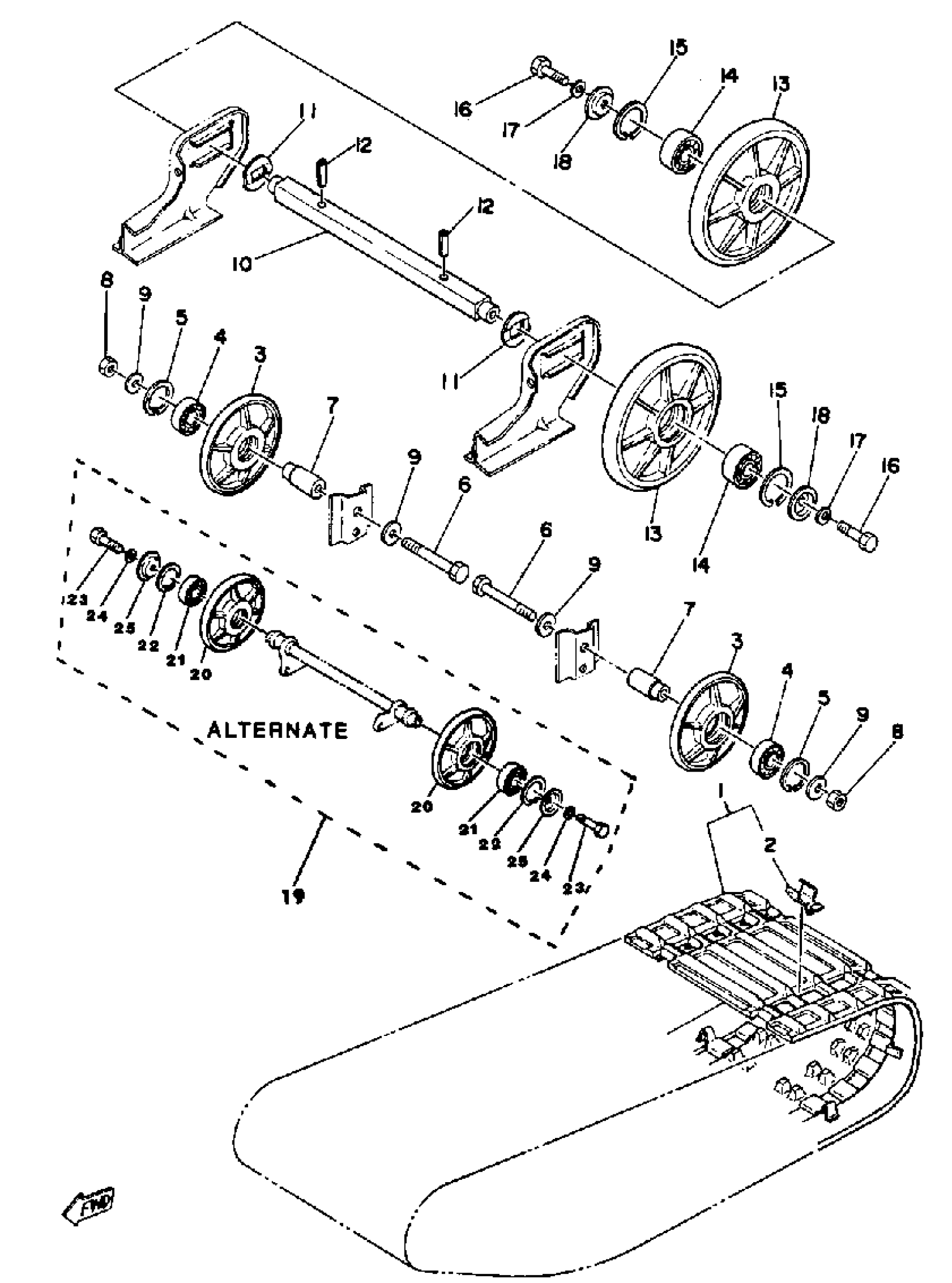

1981 Yamaha ET300E Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSY

8H9-47110-01-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

4

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

5

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

6

BOLT

90101-12356-00

1
Out of stock

7

COLLAR

90387-12584-00

1
Out of stock

8

NUT, NYLON

95717-12300-00

1

$5.85

In stock

9

YBS66-12 WASHER,PLAIN

92990-12200-00

1

$6.17

In stock

10

AXLE, REAR

8F3-47521-00-00

1
Out of stock

11

WASHER, SPEC''L SHAP

90209-23152-00

1
Out of stock

12

PIN, SPRING (663)

91690-40040-00

1

$3.92

In stock

13

WHEEL GUIDE COMP.

8L4-47530-00-00

1
Out of stock

14

1

$33.86

In stock

15

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

16

BOLT (682)

97013-08025-00

—

$6.80

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

WASHER, SPEC''L SHAP

90209-08124-00

1
Out of stock

18

UNAVAILABLE IN PRICE BOOK

ALT-ERNAT-EP-AR

1
Out of stock

19

IDLER WHEEL KIT

(8G5-47000-00-00)

1
Out of stock

20

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

21

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

22

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

23

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, SPEC''L SHAP

90209-06137-00

1
Out of stock
