FUEL TANK

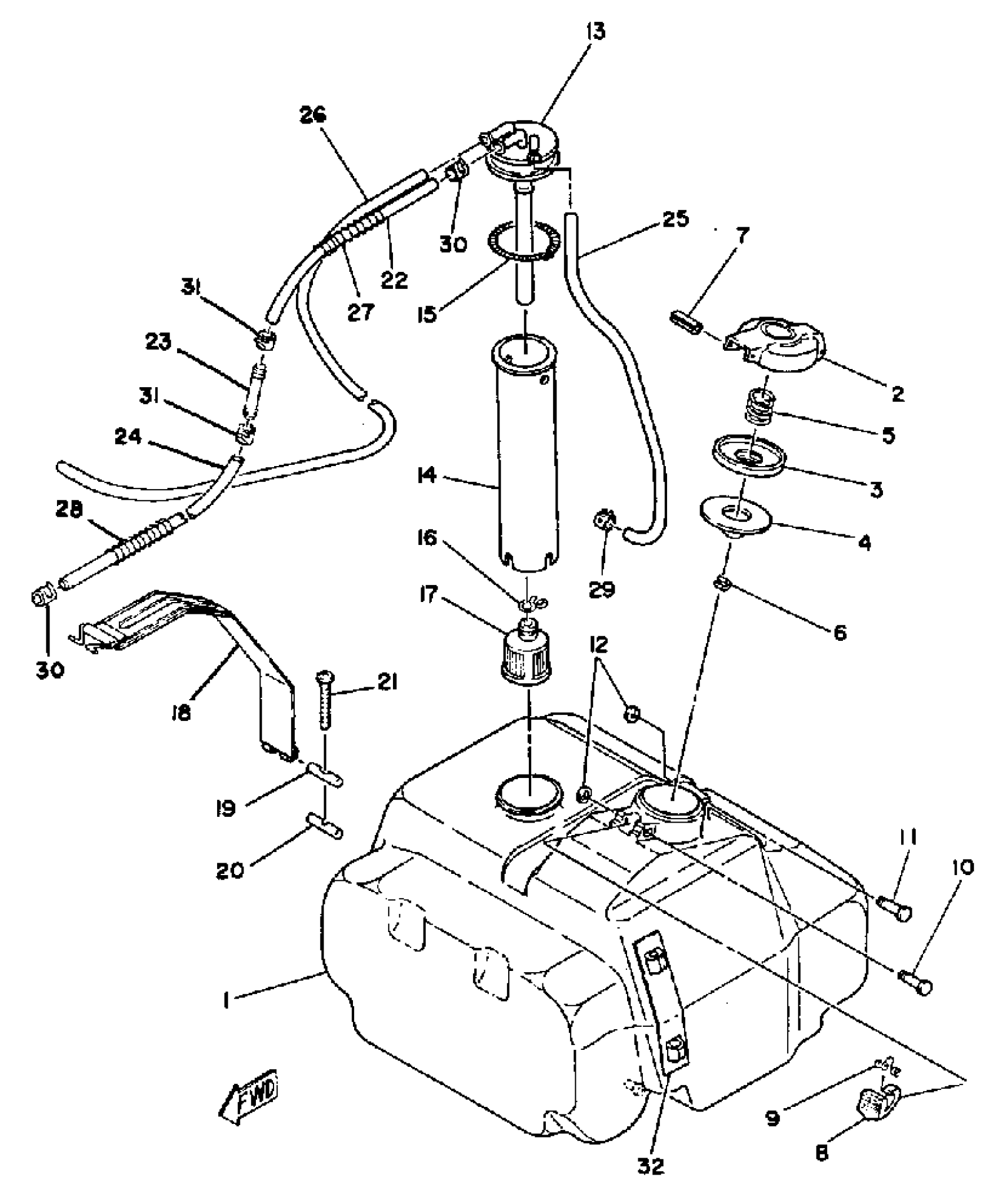

Yamaha ET300E 1981 FUEL TANK Diagram
#
1
FUEL TANK
8G8-24111-00-00
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
6
PIN, SPRING
91690-30016-00
Unavailable
7
PIN, SPRING
91609-25032-00
$2.49
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
10
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
11
PIN (813)
90249-03017-00
$7.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
PIPE, SUCTION 1
8G8-24335-00-00
Unavailable
14
PIPE, SUCTUIN
813-24336-00-00
Unavailable
15
SPRING, TENSION (8R4)
90506-06261-00
$9.49
16
CLIP (8J7)
90467-11009-00
Unavailable
17
FILTER ASSY
8H5-24560-00-00
Unavailable
18
BAND, TNK FITTING 1
(883-24173-00-00)
Unavailable
19
CLAMP
806-24135-00-00
Unavailable
20
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
21
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
22
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
23
PIPE, JOINT 1
8Y4-24376-00-00
Unavailable
24
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
25
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
Unavailable
26
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
27
PROTECTOR, PIPE
8F3-24326-00-00
Unavailable
28
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
29
CLIP (8A1)
90467-09026-00
Unavailable
30
CLIP
90467-11028-00
Unavailable
31
CLIP (8A1)
90467-09026-00
Unavailable
32
GAUGE, FUEL
(8G8-24179-00-00)
Unavailable
