CRANKSHAFT - PISTON

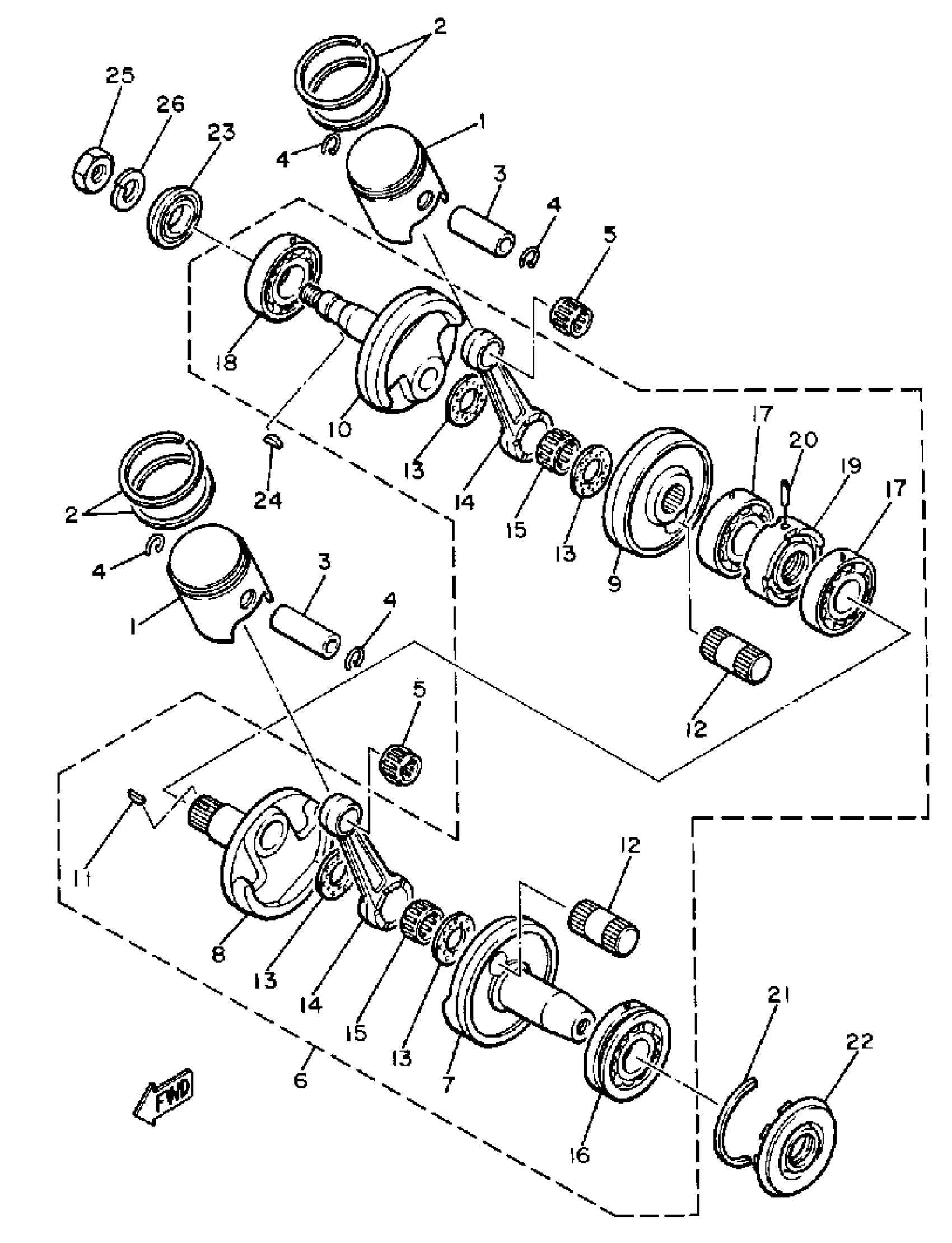

Yamaha ET300E 1981 CRANKSHAFT - PISTON Diagram
#
1
PISTON STD
8K0-11631-00-96
Unavailable
1
PISTON 1 O/S 0.25 (1ST O/S 0.25MM)
8K0-11635-00-00
Unavailable
1
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
8K0-11636-00-00
Unavailable
1
PISTON 3 O/S 0.75 (3RD O/S 0.75MM)
8K0-11637-00-00
Unavailable
1
PISTON 4 O/S 1.00
(8K0-11638-00-00)
Unavailable
2
PISTON RING SET (STD)
2N4-11610-00-00
$65.99
2
PISTON RINGSET 1ST (1ST O/S) (2A6-11610-10)
2N4-11610-10-00
Unavailable
2
PISTON RINGSET 2ND (2ND O/S) (2A6-11610-20)
2N4-11610-20-00
Unavailable
2
PISTON RINGSET 3RD (3RD O/S) (2A6-11610-30)
2N4-11610-30-00
Unavailable
2
PISTON RINGSET 4TH (4TH O/S)
2N4-11610-40-00
Unavailable
3
PIN, PISTON
137-11633-10-00
$27.99
4
CIRCLIP (137-11634-00)
93450-17025-00
$8.49
5
BEARING, NEEDLE (24X)
93310-216L2-00
$33.99
6
CRANKSHAFT ASSEMBLY
8L3-11400-00-00
Unavailable
7
. CRANK 1
8G8-11412-01-00
Unavailable
8
. CRANK 2
8L3-11422-01-00
Unavailable
9
. CRANK 3
8L3-11432-01-00
Unavailable
10
. CRANK 4
8G8-11442-01-00
Unavailable
11
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
12
PIN, CRANK
8G8-11681-00-00
Unavailable
13
WASHER (29L)
90209-22248-00
Unavailable
14
ROD, CONNECTING
34X-11651-00-00
Unavailable
15
BEARING, CYLINDRICAL(3SB)
93310-422C8-00
Unavailable
16
. BEARING (B6306)
93306-30618-00
Unavailable
17
BEARING (8G8)
93306-20617-00
Unavailable
18
BEARING
93306-30571-00
Unavailable
19
. SEAL, LABYRINTH 1
8L3-11515-01-00
Unavailable
20
PIN, SPRING (663)
91690-30010-00
Unavailable
21
CIRCLIP (1J7)
93440-72049-00
Unavailable
22
OIL SEAL, SD-TYPE
93102-30184-00
Unavailable
23
OIL SEAL (8G8)
93102-25183-00
Unavailable
24
KEY, WOODRUFF
90280-05001-00
Unavailable
25
NUT
90170-16425-00
Unavailable
26
WASHER(JN5)
92907-16100-00
Unavailable
