Description

Price

1

CDI MAGNETO ASSEMBLY

(8J6-85500-20-00)

Unavailable

2

. COIL SOURCE 1

8H4-85511-20-00

Unavailable

3

. COIL, CHARGE

8H5-85541-20-00

Unavailable

4

. COIL, LIGHTING 1

8G8-85513-20-00

Unavailable

5

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

Unavailable

6

. SPACER

8G8-85519-20-00

Unavailable

7

. LEAD WIRE ASSEMBLY

8G8-85515-20-00

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN

98507-05035-00

$8.49

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW, PAN HEAD

98507-04018-00

$2.19

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD

(8J5-81347-20-00)

Unavailable

14

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

Unavailable

15

SCREW, BIND(J39)

98980-06014-00

$9.49

16

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

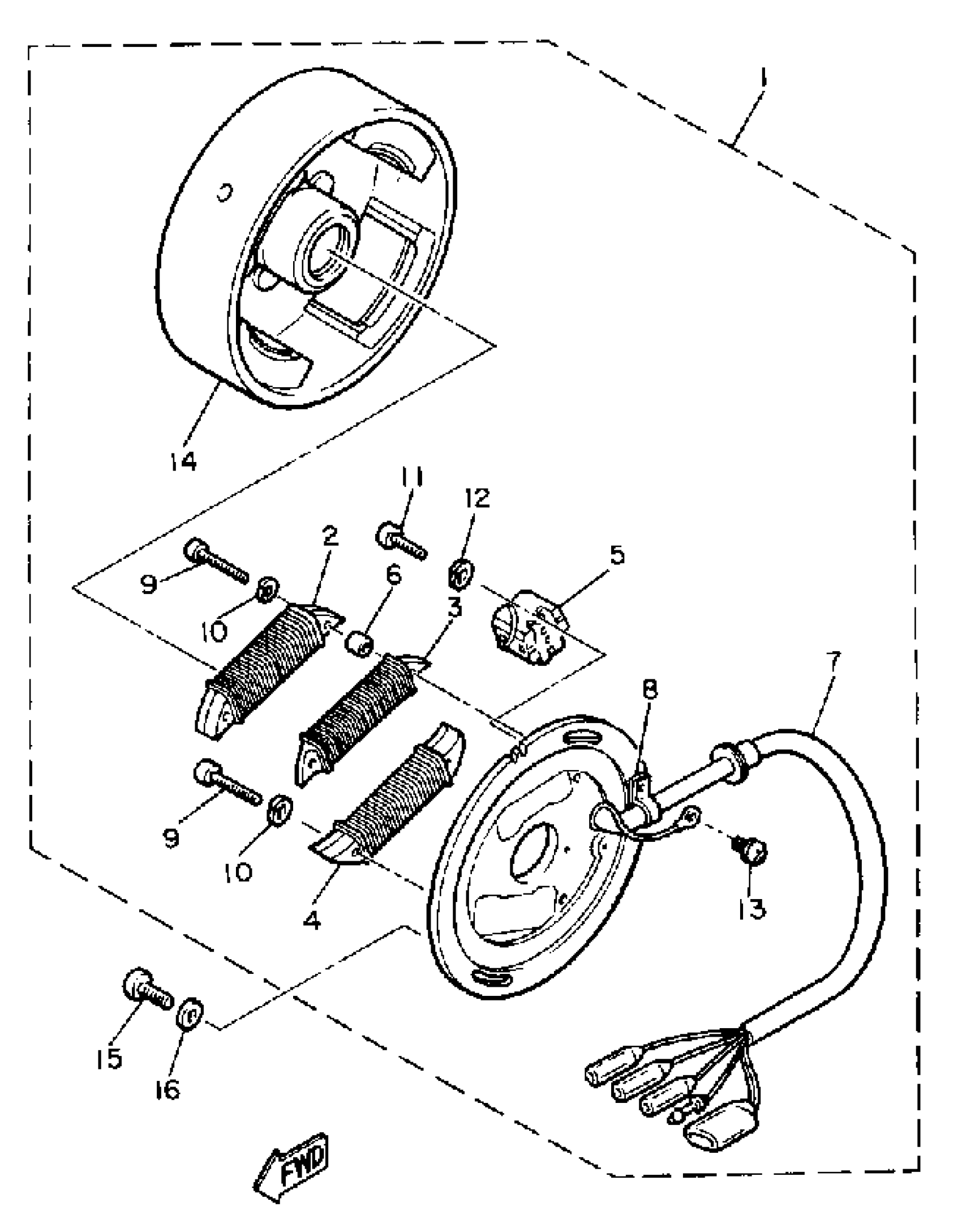

Yamaha ET300E 1981 C - D - I - MAGNETO Diagram

CDI MAGNETO ASSEMBLY

. COIL SOURCE 1

. COIL, CHARGE

. COIL, LIGHTING 1

. COIL, PULSER (8G8-85580-20)

. SPACER

. LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN

YBS67-5 WASHER, SPRING

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD

. ROTOR ASSEMBLY (8K1-85550-20)

SCREW, BIND(J39)

WASHER, PLATE 6261117600
