TRACK SUSPENSION 1

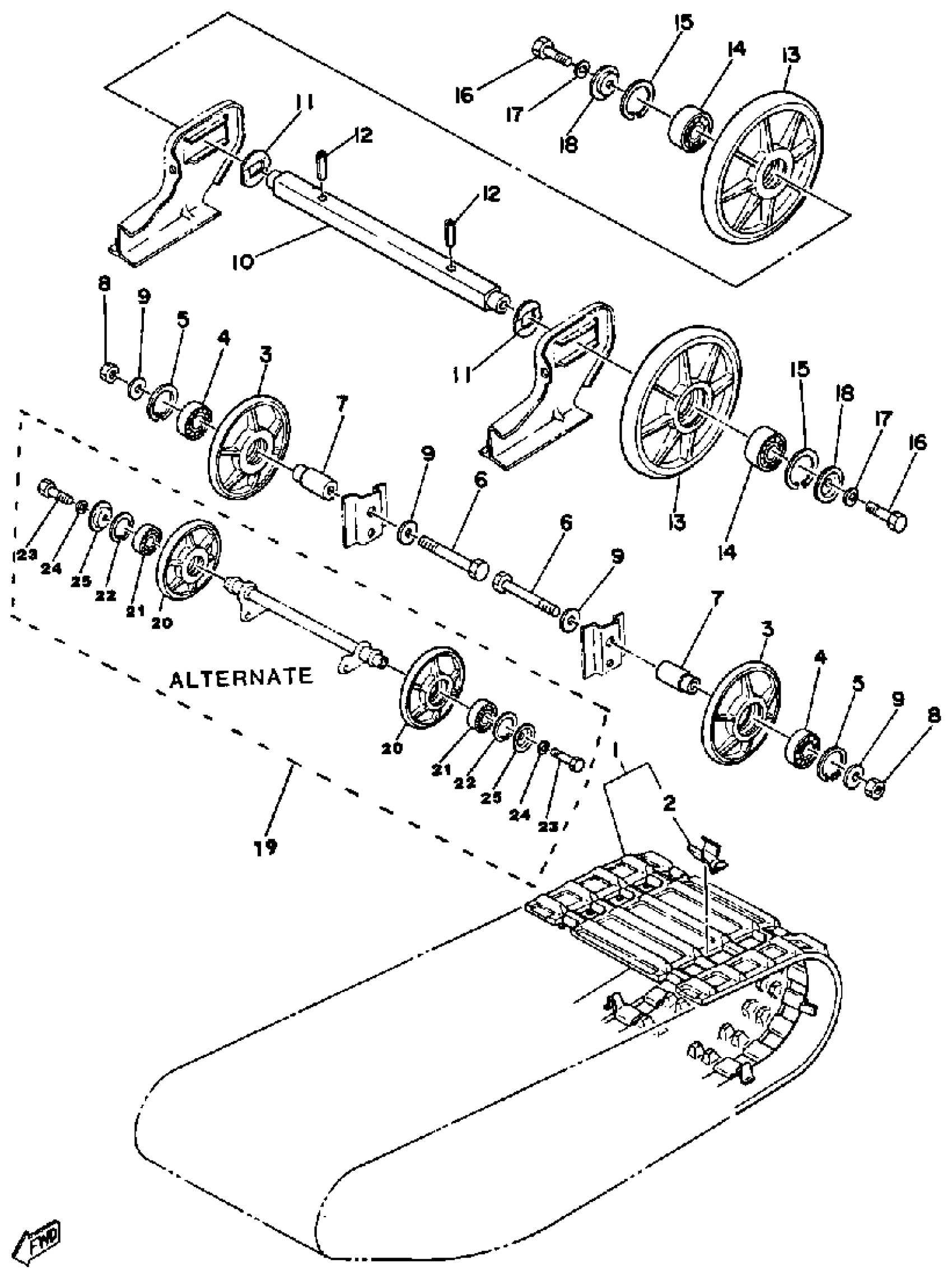

Yamaha ET300D 1980 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASSY
8H9-47110-01-00
Unavailable
2
METAL, SLIDE
8A5-47115-00-00
Unavailable
3
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
4
BEARING(8AB)
93306-00444-00
$41.99
5
CIRCLIP(5U8)
99009-42500-00
$8.49
6
BOLT
90101-12356-00
Unavailable
7
COLLAR
90387-12584-00
Unavailable
8
NUT, NYLON
95717-12300-00
$7.49
9
YBS66-12 WASHER,PLAIN
92990-12200-00
$8.49
10
AXLE, REAR
8F3-47521-00-00
Unavailable
11
WASHER, SPEC''L SHAP
90209-23152-00
Unavailable
12
PIN, SPRING (663)
91690-40040-00
Unavailable
13
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
14
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
15
CIRCLIP(48Y)
99009-47500-00
$9.49
16
BOLT (682)
97013-08025-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
WASHER, SPEC''L SHAP
90209-08124-00
Unavailable
19
IDLER WHEEL KIT
(8G5-47000-00-00)
Unavailable
20
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
21
BEARING(8AB)
93306-00444-00
$41.99
22
CIRCLIP(5U8)
99009-42500-00
$8.49
23
BOLT, HEXAGON
97017-06020-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
