1980 Yamaha ET300D Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

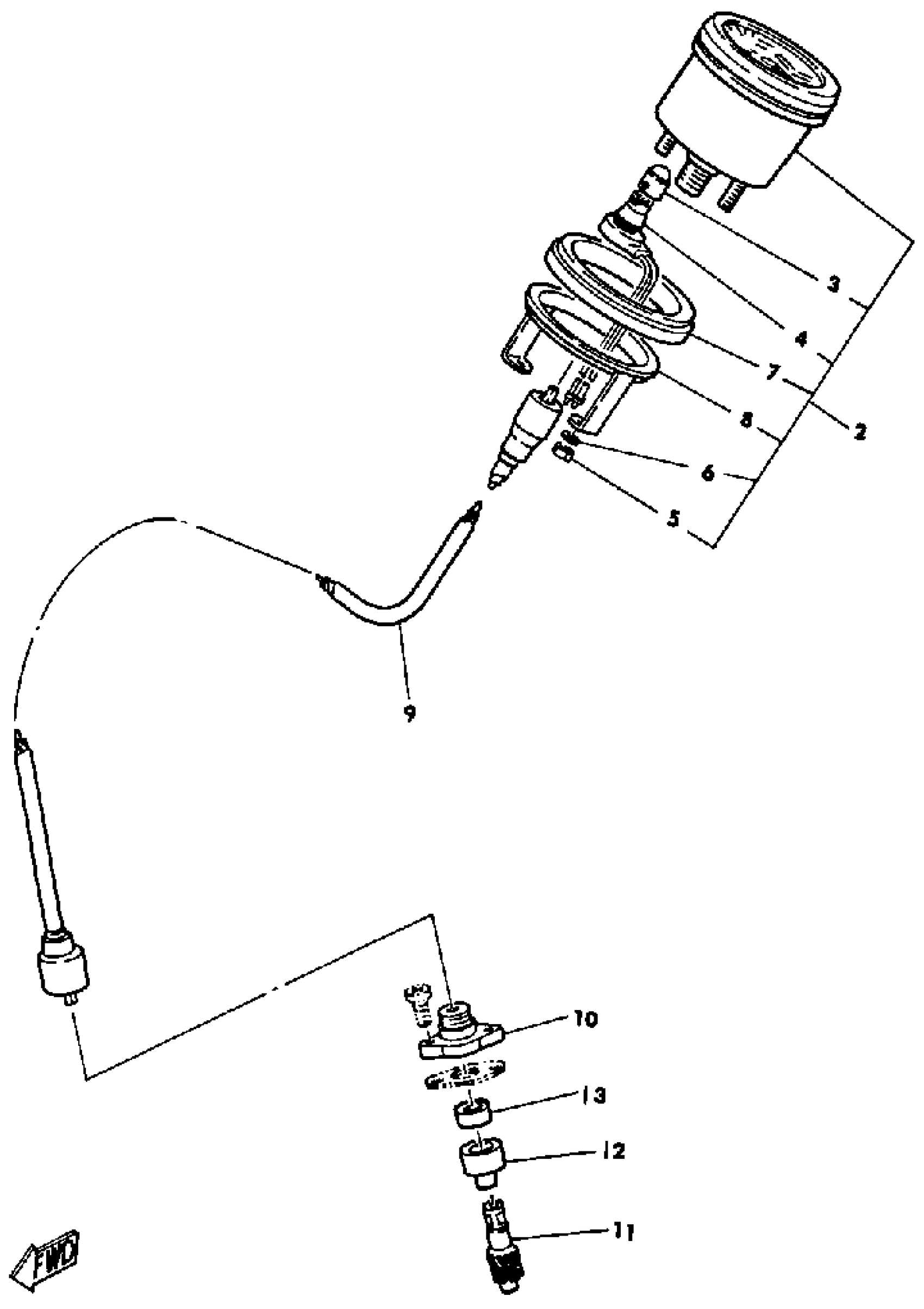

1980 Yamaha ET300D Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHET300/340BCDED

(ACC-01200-71-00)

1
Out of stock

2

TACHOMETER ASSEMBLY

8R5-83540-00-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(861-83536-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

8

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

9

TACHOMETER CABLE

8G6-83560-01-00

1
Out of stock

10

CAP, HOUSING

821-17819-00-00

1
Out of stock

11

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

12

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

13

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock
← Starter Taillight →
