1980 Yamaha ET300D Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1980 Yamaha ET300D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

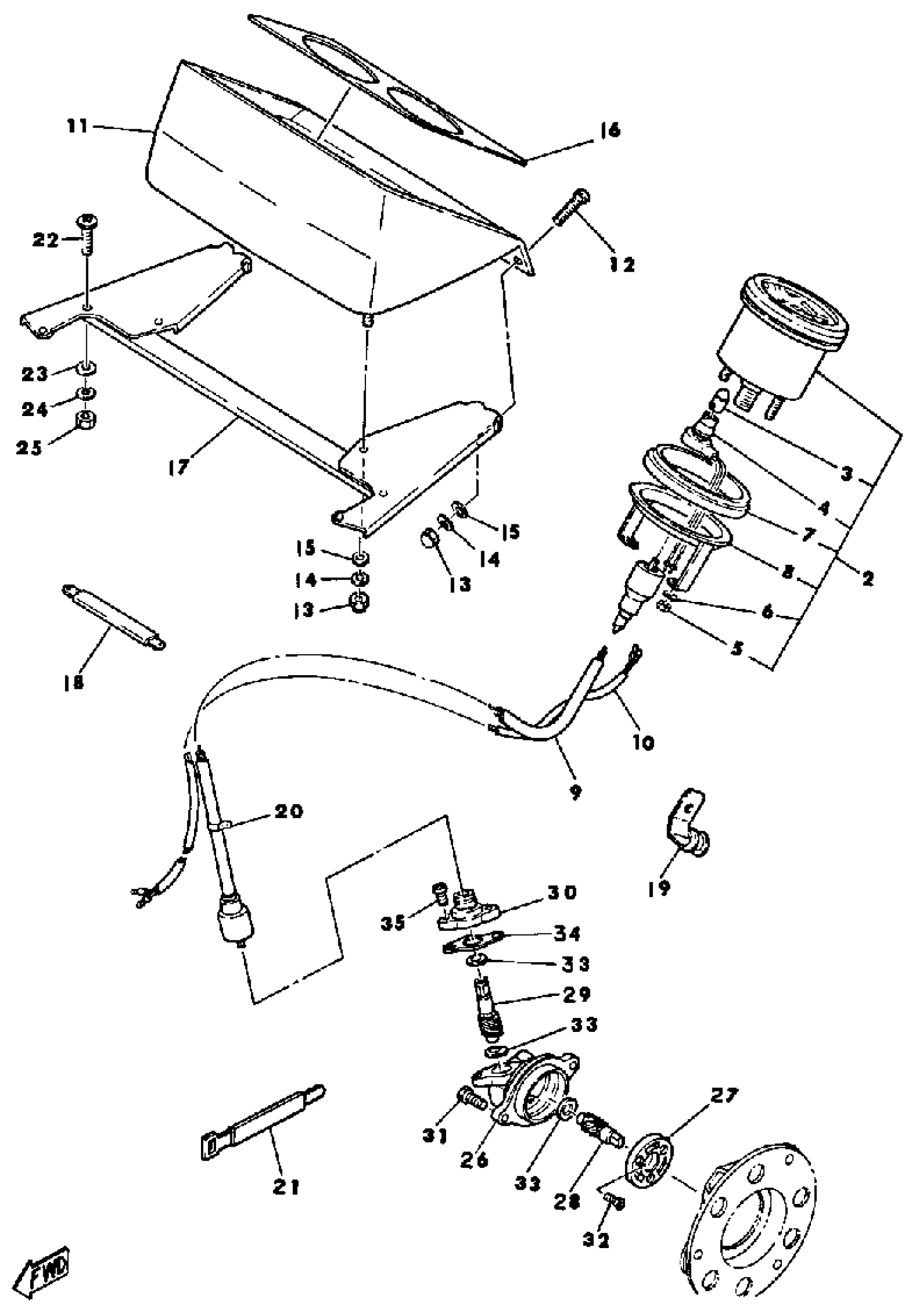

1980 Yamaha ET300D Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOET300/340BCD

(ACC-01200-68-00)

1
Out of stock

2

SPEEDOMETER ASSEMBLY

8G6-83510-21-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(861-83536-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

8

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

9

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

10

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

11

PANEL,METER

8G5-83611-00-00

—
Out of stock

12

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

COVER, METER PANEL

8G6-83612-00-00

1
Out of stock

17

BRACKET, PANEL 1

8G5-83631-00-00

1
Out of stock

18

CLAMP

90465-05128-00

1
Out of stock

19

CLAMP

90465-08028-00

1

$4.62

In stock

20

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

21

BAND

341-26397-01-00

1
Out of stock

22

SCREW, BIND

98903-05016-00

1
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

25

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

26

HOUSING

8E6-47711-10-00

1
Out of stock

27

JOURNAL

853-47712-10-00

1
Out of stock

28

GEAR, DRIVE

810-47731-11-00

1
Out of stock

29

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

30

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

32

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

33

SHIM

810-47717-10-00

1
Out of stock

34

GASKET

810-47727-11-00

1
Out of stock

35

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock
