Description

Price

1

GATE, STEERING

(8K3-23871-00-00)

Unavailable

2

HOLDER, WIRE

(8G8-23874-00-00)

Unavailable

3

GROMMET 117217730000

90480-40047-00

$3.02

4

DAMPER 1

(8G8-77319-00-00)

Unavailable

5

BOLT(JA9)

90101-08691-00

$4.29

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

GROMMET (1H3)

90480-28191-00

$10.49

9

PLUG, SPEC''L SHAPE

90338-09085-00

Unavailable

10

BOLT (661)

97013-06012-00

$5.60

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BRACKET 13

8G5-23898-00-00

Unavailable

13

BRACKET 14

8G5-23899-00-00

Unavailable

14

BOLT (661)

97013-06012-00

$5.60

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

BOLT (661)

97013-06012-00

$5.60

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06020-00

Unavailable

20

HOLDER, COUPLER

8F3-21794-00-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

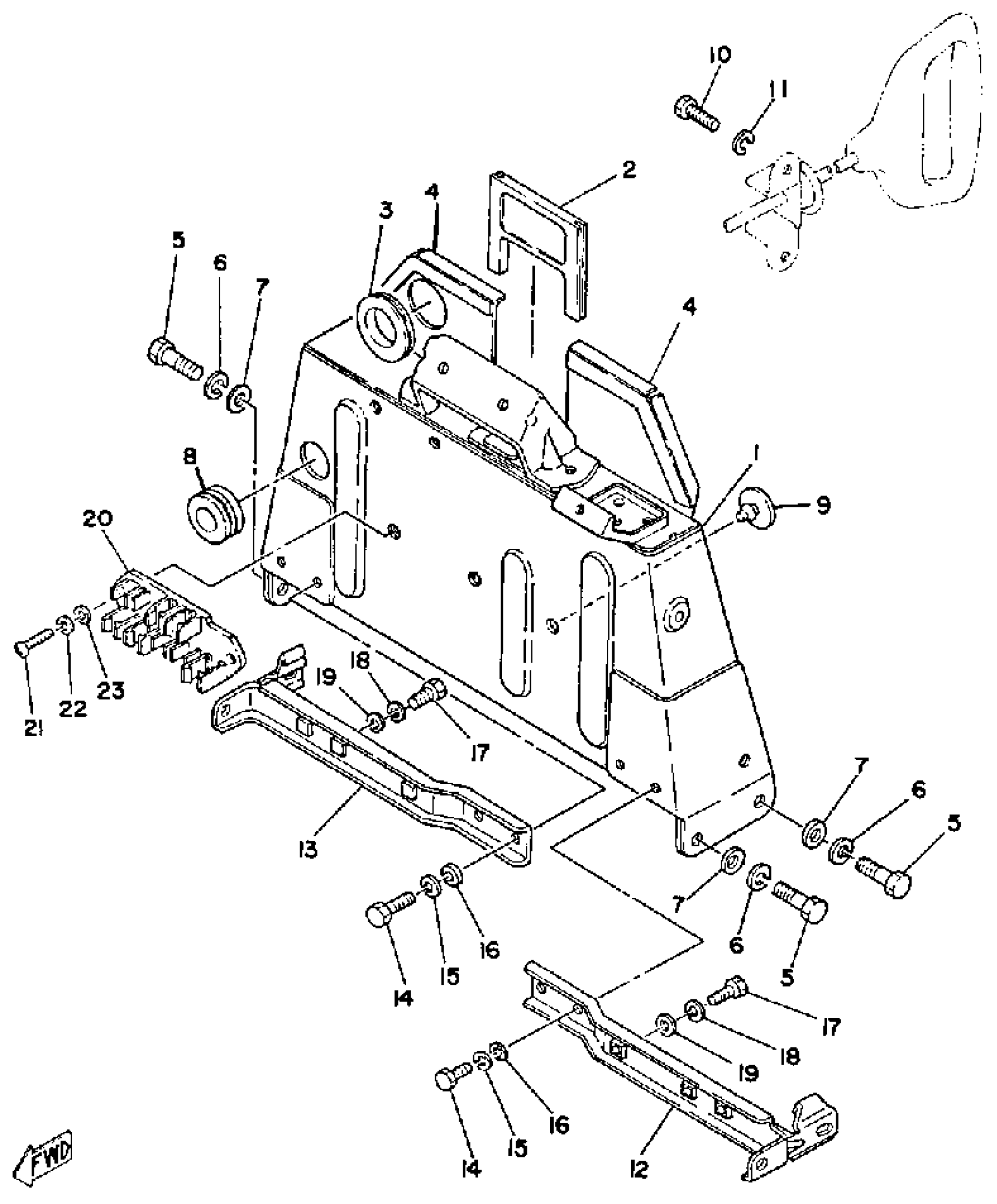

Yamaha ET300D 1980 STEERING GATE Diagram

GATE, STEERING

HOLDER, WIRE

GROMMET 117217730000

DAMPER 1

BOLT(JA9)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

GROMMET (1H3)

PLUG, SPEC''L SHAPE

BOLT (661)

WASHER, SPRING

BRACKET 13

BRACKET 14

BOLT (661)

WASHER, SPRING

WASHER, PLATE (4H7)

BOLT (661)

WASHER, SPRING

WASHER, PLATE

HOLDER, COUPLER

SCREW, PAN

WASHER, SPRING

YBS66-6 WASHER, PLAIN
